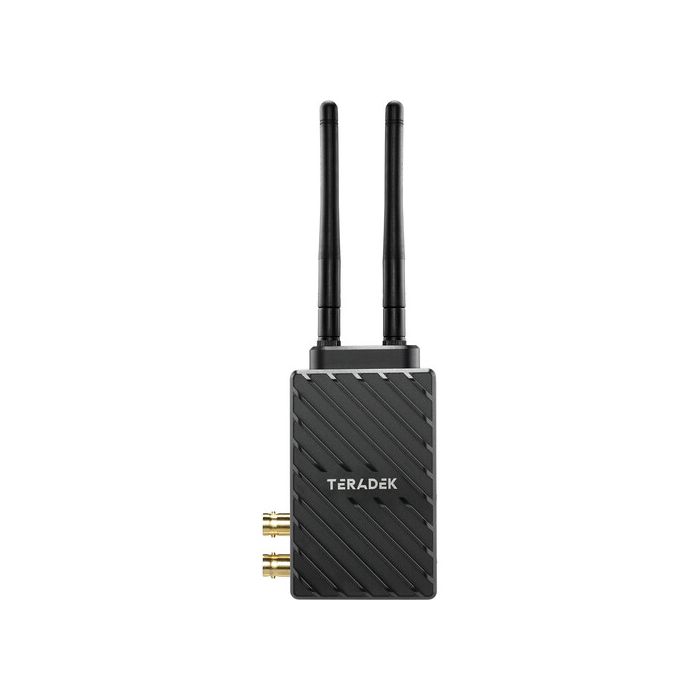

Teradek Bolt 6 LT 750 TX

by Teradek

Raspoloživost Sarajevo: Isporuka 20-30 dana

SKU

TRD-10-2261

Supports New 6 GHz Frequency Band
3G-SDI and HDMI Input, SDI Output
Transmit to up to 6 x RXs
10-Bit 4:2:2 HDR Support
Compatible with all Bolt 4K 5G Devices
Bluetooth Mobile App, Spectrum Analyzer

Akcija traje do 30. 4. 2026. ili do isteka zaliha!

Normalna cijena 4.182,50 KM Posebna cijena 2.771,00 KM 2.368,38 KM

Obročno plaćanje Obročno kartično plaćanje bez kamata 2-12 rata putem Visa Classic kartica u izdanju UniCredit Bank. Ostale načine plaćanje provjerite na linku: Načini plaćanja.
Brza dostava Za sve narudžbe unutar BiH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana. Više detalja provjerite na linku Načini dostave.
Kontakt Mail: info@aviteh.ba - Telefon: 033 24 67 67 - Adresa poslovnice: Malta 29, Sarajevo

-33%

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Sadržaj pakovanja

2-Pin to D-Tap Power Cable (18")
USB 2.0 Type-A Male to Micro-USB Male Cable (39")
HDMI Type A Male to HDMI Type A Male Cable (18")
BNC to BNC SDI Cable (10")
AC Adapter with Cable (6')
2 x Antenna

Detalji

Transmit lossless HD video up to 750' with theTeradek Bolt 6 LT 750 TX from Teradek. With the same form factor as the Bolt 4K LT 750, this transmitter can input video over HDMI or 3G-SDI with 10-bit 4:2:2 HDR support, and this new line supports the 6 GHz wireless band, which is now freely available. The transmitter unit provides a powerful signal that can travel up to 750' line of sight. It also features a bright OLED display and an SDI loop output.

The transmitter supports transmission of video to up to six receivers and features improved metadata, range, and compatibility over its predecessors. Built-in AES-256 encryption protects your video from prying eyes, while noise rejection and improved long-range mode keeps your video clean no matter how many devices are using the wireless spectrum. The Bolt LT system also supports the transmission of timecode and start/stop triggers from the camera.

Though it can transmit visually lossless video to any Bolt 4K series receiver with zero delay using the 5 GHz band, it requires a Bolt 6 device to transmit over the 6 GHz band. The transmitter also supports a desktop Bolt Manager software application or the Bolt app for iOS or Android that easily connects via Bluetooth, which both provide a spectrum analyzer, channel selection tools, and remote configuration. There are 1/4"-20 and M3 mounting threads to mount your transmitter on a variety of cameras, cages, or rigs.

Key Features

Compatible with Bolt 6 series devices using the newly available 6 GHz frequency band
Cross-compatible with all Bolt 4K, Bolt 4K LT, and Bolt 4K Monitor Module series devices over the 5 GHz signal spectrum
Input video up to UHD 4K30 4K via HDMI and transmit up to 4K30 video; input up to 1080p60 via SDI; SDI loop output
SDI Eye Pattern Tool to check SDI cable integrity
Supports Rec 2020 HDR in 10-bit 4:2:2 color gamut
Improved "long range" mode
Small and light chassis design
Transmit to up to six Bolt 4K or Bolt 6 series receivers
AES-256 encryption support
Wireless iOS/Android app via Bluetooth features a spectrum analyzer and remote configuration

Više informacija

Antenna Ports	2 x RP-SMA Female
Video I/O	1 x HDMI 1.4b Input
	1 x BNC (3G-SDI) Input
	1 x BNC (3G-SDI) Loop Output
Embedded Audio	HDMI: 2-Channel
	SDI
Audio I/O	None
Power I/O	1 x LEMO 2-Pin (28 VDC) Input
Other I/O	1 x Micro-USB Input
Encryption	256-Bit AES
Wireless
Wireless Range	750' / 228.6 m (Line-of-Sight)
Channel Bandwidth	40 MHz, 20 MHz
Frequency Range	Non-DFS Frequencies
	US: 5.94 to 6.42 GHz
	US: 5.19 to 5.23 GHz
	US: 5.75 to 5.79 GHz
	DFS Frequencies
	US: 5.27 to 5.67 GHz
Latency	< 0.01 ms
RF Power	23 dBm
Wi-Fi	None
Bluetooth	Yes
Format Support
Video Format	HDMI (10-Bit 4:4:4/4:2:2 RGB, YCC)
	UHD 4K: 30/29.97/25/24/23.98
	1080p: 60/59.94/50/30/29.97/25/24/23.98
	1080PsF: 30/29.97/25/24/23.98
	1080i: 60/59.94/50
	720p: 60/59.94/50
	576p: 50
	480p: 60/59.94
	576i: 60
	480i: 59.94
	SDI (10-Bit 4:4:4/4:2:2 RGB, YCC)
	1080p: 60/59.94/50/30/29.97/25/24/23.98
	1080i: 60/59.94/50
	720p: 60/59.94/50
	576p: 50
	576i: 50
	480p: 60/59.94
	480i: 59.94
Audio Format	2-Channel 24-Bit 48 kHz
Timecode Support	Yes
Power
DC Input Power	6 to 28 VDC
Power Consumption	9 W
Mounting	1 x 1/4"-20 Female
Environmental
IP Rating	None
Operating Temperature	32 to 72°F / 0 to 40°C
General
Material of Construction	Aluminum
Dimensions	4.1 x 2.4 x 1.3" / 103 x 60 x 33 mm
Weight	12.1 oz / 342 g
Packaging Info
Package Weight	3.17 lb
Box Dimensions (LxWxH)	16.1 x 9 x 3.6"
Material of Construction	Aluminum, Polycarbonate
Dimensions	Transmitter: 4.1 x 2.4 x 1.3" / 103 x 60 x 33 mm
	Receiver: 4.8 x 3.7 x 1.1" / 122 x 94 x 27 mm
Weight	Transmitter: 7.3 oz / 206 g
	Receiver: 10.3 oz / 292 g
Packaging Info
Package Weight	8.56 lb
Box Dimensions (LxWxH)	14.6 x 11.7 x 7.1"
