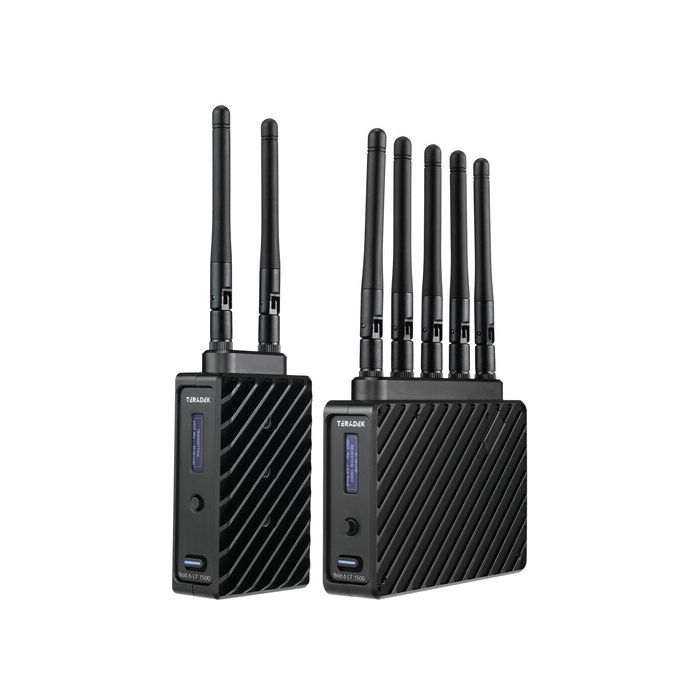

Teradek Bolt 6 LT 1500 TX/RX

by Teradek

Raspoloživost Sarajevo: Isporuka 20-30 dana

SKU

TRD-10-2270

3G-SDI/HDMI Transmitter & Receiver Set
Supports New 6 GHz Frequency Band
Supports up to 4K30 Resolution Input
3G-SDI/HDMI Inputs & Outputs
10-Bit 4:2:2 Support, No Delay
Compatible with Bolt 4K Series 5G TX/RX

15.629,50 KM 13.358,55 KM

Obročno plaćanje Obročno kartično plaćanje bez kamata 2-12 rata putem Visa Classic kartica u izdanju UniCredit Bank. Ostale načine plaćanje provjerite na linku: Načini plaćanja.
Brza dostava Za sve narudžbe unutar BiH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana. Više detalja provjerite na linku Načini dostave.
Kontakt Mail: info@aviteh.ba - Telefon: 033 24 67 67 - Adresa poslovnice: Malta 29, Sarajevo

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Sadržaj pakovanja

Teradek Bolt 6 LT 1500 TX/RX
Bolt 6 LT 1500 3G-SDI/HDMI Transmitter
Bolt 6 LT 1500 3G-SDI/HDMI Receiver
2-Pin to D-Tap Power Cable (18")
USB 2.0 Type-A Male to Micro-USB Male Cable (39")
2 x HDMI Type A Male to HDMI Type A Male Cable (18")
2 x BNC to BNC SDI Cable (10")
AC Adapter with Cable (6')
7 x Antenna
1/4"-20 Light Stand Adapter
Shoe Adapter
Carry Case

Detalji

Transmit and receive lossless HD video from up to 1500' line of sight with the Bolt 6 LT 1500 TX/RX from Teradek. The kit includes a wireless Bolt 6 LT 3G-SDI/HDMI transmitter and wireless Bolt 6 LT 3G-SDI/HDMI receiver that support the new 6 GHz wireless frequency and feature bright OLED displays and can wirelessly receive up to UHD 4K30 video with 10-bit 4:2:2 HDR support.

The transmitter inputs video over 3G-SDI or HDMI and features 3G-SDI and HDMI loop outputs, and the receiver outputs video via 3G-SDI and HDMI. Both units are also compatible with all Bolt 4K models using the 5 GHz wireless band. A carry case is included to store and transport the kit.

Key Features

Compatible with Bolt 6 series devices using the newly available 6 GHz frequency band
Cross-compatible with all Bolt 4K, Bolt 4K LT, and Bolt 4K Monitor Module series devices over the 5 GHz signal spectrum
Input video up to UHD 4K30 4K via HDMI and transmit up to 4K30 video; input up to 1080p60 via SDI; SDI loop output
SDI Eye Pattern Tool to check SDI cable integrity
Supports Rec 2020 HDR in 10-bit 4:2:2 color gamut
Improved "long range" mode
Small and lightweight chassis design
Transmit to up to six Bolt 4K or Bolt 6 series receivers
AES-256 encryption support
Wireless iOS/Android app via Bluetooth features a spectrum analyzer and remote configuration

Više informacija

Antenna Ports	Transmitter: 2 x RP-SMA Female
	Receiver: 5 x RP-SMA Female
Video I/O	Transmitter: 1 x HDMI 1.4b Input
	Transmitter: 1 x BNC (3G-SDI) Input
	Transmitter: 1 x BNC (3G-SDI) Loop Output
	Receiver: 1 x HDMI 1.4b Output
	Receiver: 1 x BNC (3G-SDI) Output
Embedded Audio	HDMI: 2-Channel
	SDI: 2-Channel
Audio I/O	None
Power	Transmitter/Receiver: 1 x LEMO 2-Pin Input
Other I/O	Transmitter/Receiver: 1 x Micro-USB Input
Encryption	256-Bit AES
Wireless
Wireless Range	1500' / 457.2 m (Line-of-Sight)
Channel Bandwidth	40 MHz
Frequency Range	Non-DFS Frequencies
	US: 5.94 to 6.42 GHz
	US: 5.19 to 5.23 GHz
	US: 5.75 to 5.79 GHz
	DFS Frequencies
	US: 5.27 to 5.67 GHz
Latency	< 0.01 ms
RF Power	23 dBm
Wi-Fi	None
Bluetooth	Yes
Format Support
Video Format	HDMI (10-Bit 4:4:4/4:2:2 RGB, YCC)
	UHD 4K: 30/29.97/25/24/23.98
	1080p: 60/59.94/50/30/29.97/25/24/23.98
	1080PsF: 30/29.97/25/24/23.98
	1080i: 60/59.94/50
	720p: 60/59.94/50
	576p: 50
	480p: 60/59.94
	576i: 60
	480i: 59.94
	SDI (10-Bit 4:4:4/4:2:2 RGB, YCC)
	1080p: 30/29.97/25/24/23.98
	1080i: 60/59.94/50
	720p: 60/59.94/50
	576p: 50
	576i: 50
	480p: 60/59.94
	480i: 59.94
Audio Format	2-Channel 24-Bit 48 kHz
Timecode Support	Yes
Power
DC Input Power	6 to 28 VDC
Power Consumption	Transmitter: 9 W
	Receiver: 11 W
Mounting	1 x 1/4"-20 Female
Environmental
IP Rating	None
Operating Temperature	32 to 72°F / 0 to 40°C
General
Material of Construction	Aluminum, Polycarbonate
Dimensions	Transmitter: 4.1 x 2.4 x 1.3" / 103 x 60 x 33 mm
	Receiver: 4.8 x 3.7 x 1.1" / 122 x 94 x 27 mm
Weight	Transmitter: 7.3 oz / 206 g
	Receiver: 10.3 oz / 292 g
Packaging Info
Package Weight	8.025 lb
Box Dimensions (LxWxH)	18.5 x 12.1 x 8.6"
