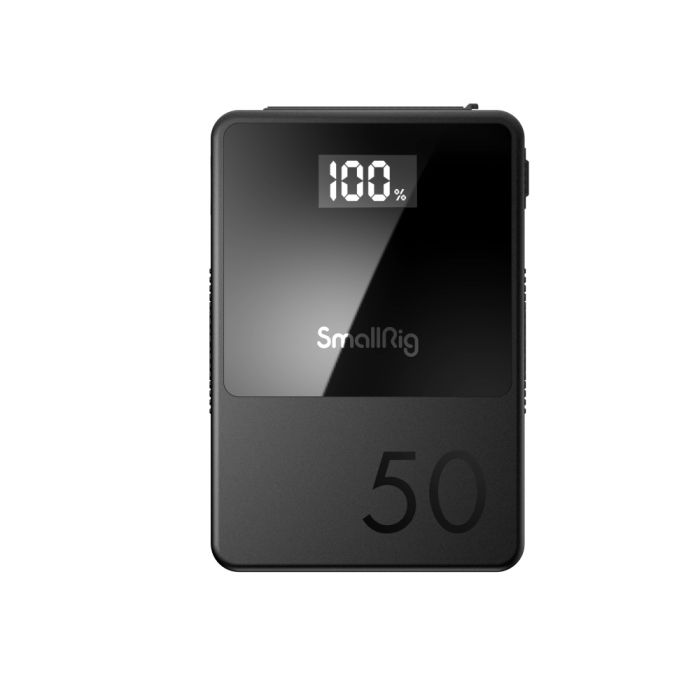

SmallRig VB50 mini V Mount Battery 3579
by SmallRigPlease keep it clean, dry area, and away from corrosive substances to reduce the risk of short circuits.
Please check its battery life regularly in case you need it anytime anywhere.
If the battery is left unused for a long time, please charge it to about 70% every three months and put it in a dry and ventilated environment for a longer lifespan.
Working temperature: -10℃- 45℃ (14℉ - 113℉)
- Obročno plaćanje Obročno kartično plaćanje bez kamata 2-12 rata putem Visa Classic kartica u izdanju UniCredit Bank. Ostale načine plaćanje provjerite na linku: Načini plaćanja.
- Brza dostava Za sve narudžbe unutar BiH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana. Više detalja provjerite na linku Načini dostave.
- Kontakt Mail: info@aviteh.ba - Telefon: 033 24 67 67 - Adresa poslovnice: Malta 29, Sarajevo
Sadržaj pakovanja
- SmallRig VB50 mini V Mount Battery
-
User Manual × 1
VB50 mini V Mount Battery is about 70% of the size of a normal V-mount battery, given its highly integrated design which takes up less space, making it lighter and more portable! The highly integrated (fast charging protocol chip + MCU + voltage boost control) BMS chip supports a wide range of mainstream fast charging protocols (PD / QC / SCP / PPS / APPLE-2.4A etc.), bi-directional 45W (Max) USB-C PD fast charging, as well as adaptive voltage boost/ adaptive current regulation etc.! In addition, its customized intelligent BMS system ensures faster and safer charging by providing multiple protections against over-current / short-circuit / over-temperature / over-voltage etc. Such interfaces as USB-A / USB-C / D-tap / DC 8V / DC 12V / V Mount are also included for efficient charging / powering of camera / camcorder / monitor / wireless video transmitter / video light / mobile phone / laptop etc., without using a V-mount plate to convert! The BMS chip has a 16bit ADC / power meter algorithm, together with an MCU and an OLED digital display for you to keep track of the battery's status at all times. Built-in premium high-performance battery (no inflated capacity), which are rechargeable and stable, meet MSDS / UN38.3 / IEC62133 / UL2054 / UL62368 and other internationally recognized standards, allowing you to capture every moment without burden!
|
Items |
Parameters |
|
Material |
Fireproof PC |
|
Capacity |
14.8V 3.4Ah 50Wh |
|
Rated Power |
Discharge: 50W Charge: 45W |
|
V Mount / D-TAP Input |
5A (Max) |
|
V Mount / D-TAP Output |
14.8V / 12A (Max) |
|
USB-A Output Supports QC2.0 / QC3.0 / AFC / FCP / SCP / DCP-1.5A / APPLE-2.4A |
QC2.0 / AFC / FCP: 5V / 3A, 9V / 3A, 12V / 2A QC3.0: 4.2-9V / 3A, 9-12V / 2A SCP: 4.5V / 5A, 5V / 4.5A DCP-1.5A: 5V / 1.5A APPLE-2.4A: 5V / 2.4A |
|
USB-C Input / Output Input 45W (Max) Output 45W (Max) Supports PD3.0 / QC2.0 / QC3.0 / PPS / AFC/ FCP / SCP / DCP-1.5A / APPLE-2.4A |
PD3.0: 5V / 3A, 9V / 3A, 12V / 3A, 15V / 3A, 20V / 2.25A QC2.0 / AFC / FCP: 5V / 3A, 9V / 3A, 12V / 2A QC3.0: 4.2-9V / 2A, 9-12V / 2A SCP: 4.5V / 5A, 5V / 4.5A DCP-1.5A: 5V / 1.5A PPS: 3.3-16V / 3A APPLE-2.4A: 5V / 2.4A |
|
DC1 Output |
8V / Max3A |
|
DC2 Output |
12V / Max3A |
|
Cutoff Voltage |
11V |
|
Optional Charging Method |
16.8V D-TAP charger, USB-C charger such as GaN charger with PD fast charging tech (up to 45W) |
|
|
|
|
Product Dimensions |
107.0 × 73.0 × 34.0 mm |
|
Net Weight |
330 g ± 10 g |
|
Package Dimensions |
147.0 × 114.0 × 57.0 mm |
|
Gross Weight |
490 g ± 10 g |
