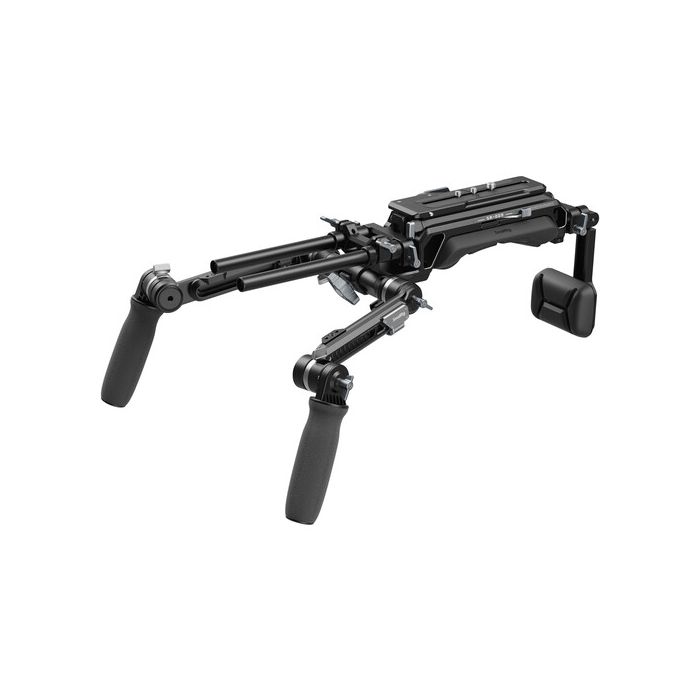

SmallRig "HawkLock" VCT-14 Type Shoulder Rig (SR009) 5199

by SmallRig
Rok isporuke:  20-30 dana
SKU
SR-5199

The SmallRig SR009 HawkLock VCT-14 Type Shoulder Rig is engineered for cinema camera builds up to 44.1 lb, delivering stable, shoulder-mounted operation with optimized weight distribution.

1.157,50 KM 989,32 KM
Novo

Sadržaj pakovanja

  • SmallRig SR009 HawkLock VCT-14 Type Shoulder Rig
  • Shoulder Pad
  • Back Pad
  • Quick Release Plate
  • 2 x Telescopic Extension Arm
  • 2 x 15mm Rod
  • 2 x 1/4"-20 Screw
  • 3/8"-16 Screw

SmallRig HawkLock Shoulder Rig

Its integrated VCT-14 type module enables instant transitions between tripod and shoulder modes, while the one-touch HawkLock quick release system streamlines deployment and repositioning on set. Dual telescopic extension arms and a double-layer quick release plate provide up to 7.3" of front-to-back balance adjustment for precise control over the rig's center of gravity.

Constructed from aluminum alloy and stainless steel, the rig combines structural rigidity with modular expandability. Adjustable shoulder and back pads enhance comfort during extended operation, while integrated ARRI rosettes, 1/4"-20 threads, and 15mm rod ports support accessory integration. Tool-free assembly and adjustment maintain workflow efficiency across fast-paced production environments.

Robust Support

  • 44.1 lb load capacity for heavy-duty cinema rigs
  • Aluminum alloy and stainless steel build ensures durability
  • Wide, thickened shoulder pad and back pad for comfort during extended use

Flexible Configuration

  • Dual telescopic extension arms with handgrips and ARRI rosettes
  • 7.3" front-to-back balance adjustment
  • Tool-free assembly and configuration

Expansive Mounting

  • One-touch HawkLock quick release plate system
  • Built-in VCT-14 type adapter for rapid tripod mounting
  • 1/4"-10 and 3/8"-16 camera mounting screws
    Integrated 1/4"-20 threads and 15mm rod ports
Support Type Shoulder Support
Grip Type Dual Handgrips
Mounting
Rod Standard 15 mm LWS / 60 mm Spacing
Included Rods Yes
Battery Plate Type No
Accessory Mounting Arms
  2x 1/4"-20 Female Thread
  Back Pad
  1x Anti-Twist 1/4"-20 Female Thread
  3x 1/4"-20 Female Thread
Camera Mounting 1/4"-20 Male Screw, 3/8"-16 Male Screw
Tripod Mounting VCT-14
Rod Ports Shoulder Mount, Front
  2x 15 mm Rod Port
  Shoulder Mount, Rear
  2x 15 mm Rod Port
  Handles
  2x 15 mm Rod Port
Shoe Mounting No
Rosettes No
General
Load Capacity 44.1 lb / 20 kg
Load Capacity 44.1 lb / 20 kg
Materials Aluminum Alloy, Fiberglass, Plastic, Silicone, Stainless Steel
Dimensions 18.5 x 12.3 x 7.5" / 469 x 312 x 190 mm
Weight 5 lb / 2.27 kg
