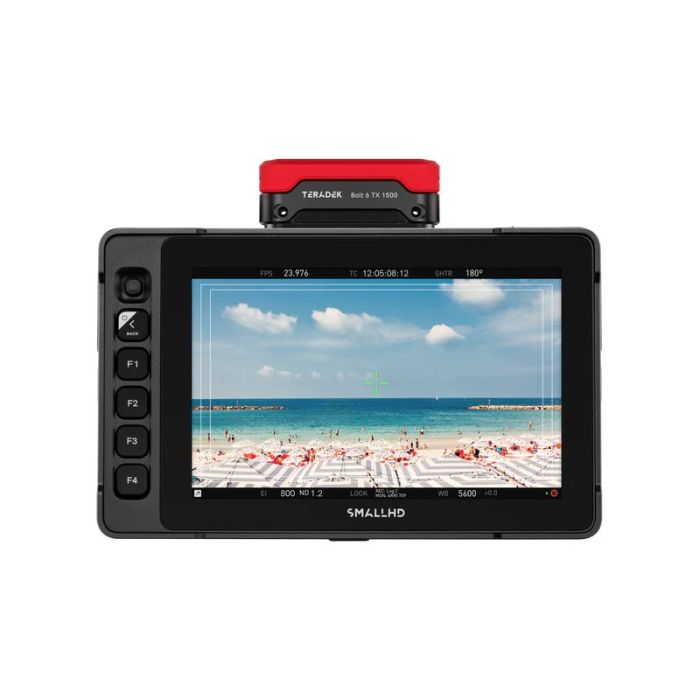

SmallHD Ultra 7 Bolt 6 TX 1500
by SmallHDTouchscreen camera monitor with integrated wireless video transmitter.
- Obročno plaćanje Obročno kartično plaćanje bez kamata 2-12 rata putem Visa Classic kartica u izdanju UniCredit Bank. Ostale načine plaćanje provjerite na linku: Načini plaćanja.
- Brza dostava Za sve narudžbe unutar BiH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana. Više detalja provjerite na linku Načini dostave.
- Kontakt Mail: info@aviteh.ba - Telefon: 033 24 67 67 - Adresa poslovnice: Malta 29, Sarajevo
Sadržaj pakovanja
- SmallHD Ultra 7 Bolt 6 TX 1500
- D-Tap to 2pin Power Cable 36in
Powerful, bright, and durable, the Ultra 7 offers a stunning 2300nits brightness and a full suite of large front-facing custom-function buttons for maximum control in all conditions. Experience all your favorite PageOS tools and functions on a fully loaded 7-inch touchscreen field monitor powerful enough to ingest a 4K signal with 6G-SDI.
- Ultra Bright (2300nits)
- Dust and water resistant with an IP53 rating
- 6G-SDI for modern 4K end-to-end workflows
- Camera Control compatible with all current SmallHD licenses
- Function Buttons for tactile control
- Integrated Bolt 6 TX 750 or 1500
Ultra 7 is our first IP-certified monitor at IP53, which is defined as water-resistant in damp situations and protection against dust and dirt in extreme environments while operating in variable temperatures ranging from 0ºC to 40ºC. The chassis is strengthened with a new design aesthetic that includes raised edges protecting the front glass of the display and additional shock-absorbing bumpers that help with drops, tumbles, and impacts.
Ultra 7 is adaptable to all situations and conditions, including optional Gold or V-Mount Micro Battery Plates for a compact power solution, an Ethernet port to enable ARRI and Sony VENICE Camera Control, and a 5-Pin USB port for RED® Camera Control (Camera Control license and cable sold separately).
We brought together SmallHD’s Ultra 7 monitor with Teradek’s wireless transmission technology. Ultra 7 Bolt 6 TX integrates a Bolt 6 Transmitter directly inside an Ultra 7 monitor, allowing you to wirelessly send the image from your camera with the new internal V-Antenna.
The Ultra 7 Bolt 6 TX is available in the 750 or 1500 range.
| Display | |
| Max Brightness | 2300nits |
| Contrast | 1000:1 |
| Gamut | 95% DCI-P3 Coverage / 98% REC 709 |
| Color Depth | 10-bit Processing (8-bit panel) |
| Backlight Type | LED Edgelit |
| EVF | |
| Resolution | 1920x1200 |
| Input Signal | |
| 3G-SDI Input Types | YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i102 |
| 6G-SDI Input Types | YCC 4:2:2 @ 10 bits: DCI-4Kp30, DCI-4Kp29.97, DCI-4Kp25, DCI-4Kp24, DCI-4Kp23.98, 2160p30, 2160p29.97, 2160p24, 2160p23.98 YCC 4:4:4, YCC+A 4:4:4:4, RGB, RGB+A @ 10 bits: DCI-2Kp60, DCI-2Kp59.94, DCI-2Kp50, DCI-2Kp48, DCI-2Kp47.95, 1080p60, 1080p59.94, 1080p50, 1080p48, 1080p47.95 YCC 4:4:4, YCC+A 4:2:2:4, RGB @ 12 bits: DCI-2Kp60, DCI-2Kp59.94, DCI-2Kp50, DCI-2Kp48, DCI-2Kp47.95, 1080p60, 1080p59.94, 1080p50, 1080p48, 1080p47.95 |
| HD-SDI Input Types | YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.100 |
| SD-SDI Input Types | YCC 4:2:2 @ 10-bits: 480i59.94, 576i52 |
| HDMI Input Types | YCC 4:2:2 @ 12 bits, 8/10/12/16 bit color in RGB & YCC 4:4:4: 3840x2160 30p, 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p240, 480p239.76, 480p120, 480p119.88, 480p60, 480p59.94, 576p200, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 576i200, 576i100, 576i52 |
| Output Signal | |
| 3G-SDI Output Types | YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i102 |
| HD-SDI Output Types | YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.100 |
| SD-SDI Output Types | YCC 4:2:2 @ 10-bits: 480i59.94, 576i52 |
| HDMI Output Types | YCC 4:2:2 @ 12 bits, 8 bit color in RGB & YCC 4:4:4: 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98, 1080p120, 1080p119.88, 1080p100, 1080i120, 1080i119.88, 1080i100, 1080i60, 1080i59.94, 1080i50, 720p240, 720p239.76, 720p200 YCC 4:2:2 @ 12 bits, 8/10/12/16 bit color in RGB & YCC 4:4:4: 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p240, 480p239.76, 480p120, 480p119.88, 480p60, 480p59.94, 576p200, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 576i200, 576i100, 576i51 |
| Audio Output Types | HDMI & SDI - Incoming Audio Stream is sent downstream via HDMI or SDI connection |
| Data I/O | |
| SDI | 1x BNC 6G input and 1x BNC 6G input/output (12G BNC compatible) |
| HDMI | 1 input and 1 output: HDMI Type-A Receptacles (full size) |
| Audio | 1x 3.5mm 3-pin Stereo Headphone Jack |
| Ethernet | RJ45 |
| Power | |
| Connector | 2-Pin Locking Connector |
| Voltage | DC in - 10V minimum to 34V maximum, Battery terminals - 6.0V minimum to 16.8V max |
| Power Supply | Recommend DC 12~15V at ~2.5 amp or greater |
| Battery Types | V Mount, Gold Mount Micro Battery Plates |
| Overload Protection | DC input: Reverse polarity |
| Software | |
| Pixel Zoom | 1.1-2.0x & 2.0-8.0x via swipe up/down. Infinitely adjustable via pinch & zoom |
| Frame Guides | Preset Aspect Ratios & Customizable |
| DSLR Scale | Canon 5DMkii & Canon 7D |
| Custom Scale | Yes (Underscan Only) |
| Anamorphic De-Squeeze | 0.75x, 1.33x, 1.5x, 1.66x, 2.0x, 2.5x |
| Image Rotate | Automatic or Manual Control |
| Image Flip | Automatic or Manual Control |
| Cross Conversion | Yes: HDMI → SDI & SDI → HDMI |
| Focus Assist | User Adjustable Color Style and Intensity |
| Peaking | User Adjustable Intensity |
| False Color | Rainbow, Arri Style, Custom with up to 10 nodes |
| Zebra | Dual - User Configurable |
| Waveform | Luma & RGB Style, Fully User Customizable w/ Region of Interest Highlighting |
| Vectorscope | Yes |
| RGB Parade | Fully User Customizable |
| Histogram | Luma & RGB Style |
| Image Capture | Yes |
| LUTS | - 33pt User LUT instead of 17pt - 33pt Cal LUT instead of 17pt - LUT tool continues to work after removable media containing the LUT has been removed |
| Custom LUTS | - Loadable as Looks on Pages or as Systemwide Color Calibration via the settings menu - LUT Downstream: Available on SDI or HDMI Out. Applied on Output Preview Page - LUT Import: via SD Card or USB Storage Device |
| Color Pipe | - Unique Calibrations may be saved to each Color Pipe - Accurate color processing |
| Overlay | With Opacity Slider and Blink Setting |
| Audio Meters | HDMI & SDI up to 8 channel |
| Multi-View | 2 camera feeds simultaneously while filling vertical 9x16 screen with two 16:9 images on its vertical axis (Coming Soon) |
