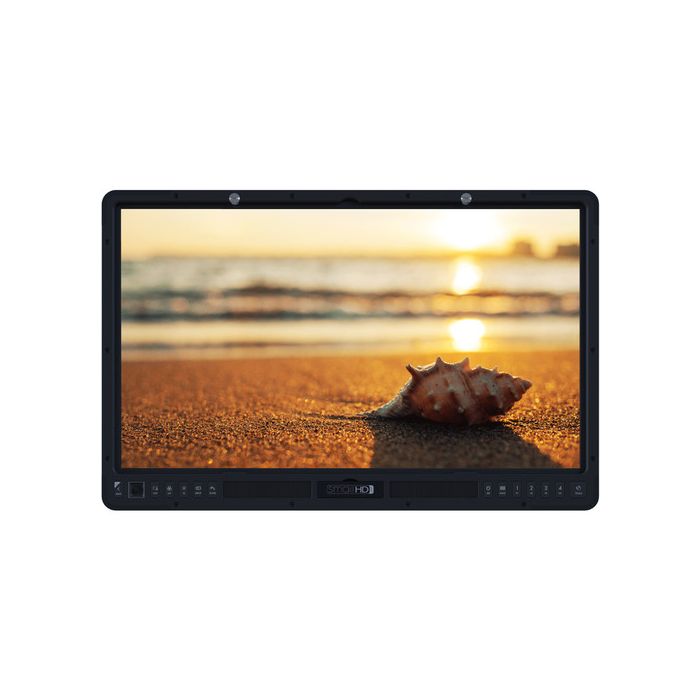

SmallHD 2403 Full HD 24" Studio Production LCD Monitor
by SmallHDUltra-Rugged Rapid-Deploy LUT Monitor, 1080p Display & Full Software Features, Milled from Billet Aluminum, Cold Shoe Accessory Rail System, Power: Dual 4-Pin XLR In / LEMO Out
- Obročno plaćanje Obročno kartično plaćanje bez kamata 2-12 rata putem Visa Classic kartica u izdanju UniCredit Bank. Ostale načine plaćanje provjerite na linku: Načini plaćanja.
- Brza dostava Za sve narudžbe unutar BiH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana. Više detalja provjerite na linku Načini dostave.
- Kontakt Mail: info@aviteh.ba - Telefon: 033 24 67 67 - Adresa poslovnice: Malta 29, Sarajevo
Sadržaj pakovanja
- SmallHD 2403 Full HD 24" Studio Production LCD Monitor
- Power Cord
- Mount Handle
- HDMI Cable (6')
In addition to its 1080p display and comprehensive set of software functions, the 2403 Full HD 24" Studio Production LCD Monitor from SmallHD is milled from billet aluminum for ultra durability, and offers an accessory rail system on the rear for rapid deployment. This advanced 24" production monitor is built to last and to provide efficient ease of use.
The 2403 features dual 3G/HD-SDI and HDMI input and output, 10-bit color depth, sharp 3000:1 contrast ratio, and 178° viewing angle. The full list of software tools includes custom LUTs, LUT downstream, and LUT import for a full LUT workflow, as well as anamorphic de-squeeze, waveform, vectorscope, and much more.
The rail system on the rear is comprised of several rows of cold shoe rails that could prove essential in saving you substantial amounts of setup and teardown time. It allows you to slide various gear and accessories, such as wireless transmitters and receivers, right onto the rails.
Providing for further ease of use, the 2403 Studio Production LCD Monitor also allows for hassle-free power via dual 4-pin XLR inputs and a 2-pin LEMO power output. You can conveniently secure a Gold Mount or V-Mount battery plate on the rear and connect a battery using the XLR inputs. A variety of optional accessories are available from SmallHD for this monitor, including a screen protector, C-Stand with table stand kit, and cheese plate power kits.
| Input Signal Formats | |
|---|---|
| SDI | 3G-SDI YCC 4:2:2 at 8-bit 1080p 60/59.94/50 1080i 120/119.88/100 HD-SDI YCC 4:2:2 at 10-bit 1080p 30/29.97/25/24/23.98 1080PsF 30/29.97/25/24/23.98 1080 i60/59.94/50 720p 60/59.94/50/30/29.97/25/24/23.98 SD-SDI Not supported |
| HDMI | Supports YCC 4:2:2 at 8-bit, 8/10/12-bit color in RGB and YCC 4:4:4: 1080p 60/59.94/50/30/29.97/25/24/23.98 1080i 120/119.88/100//60/59.94/50 720p 120/119.88/100/60/59.94/50/30/29.97/25/24/23.98 480p 120/119.88/100/60/59.94 576p 100/50 |
| Audio | HDMI and SDI monitor through speakers in front bezel, or through headphone jack metering of up to eight channels |
| Output Signal Formats | |
|---|---|
| SDI | 3G-SDI YCC 4:2:2 1080p 60/59.94/50 1080i 120/119.88 HD-SDI YCC 4:2:2, all at 8-bit 1080p 30/29.97/25/24/23.98 1080PsF 30/29.97/25/24/23.98 1080i 60/59.94/50 720p 60/59.94/50/30/29.97/25/24/23.98 SD-SDI Not supported |
| HDMI | Supports YCC 4:2:2 at 8-bit, and RGB and YCC 4:4:4 at 8-bit: 1080p 60/59.94/50/30/29.97/25/24/23.98 1080i 120/119.88/100/60/59.94/50 720p 120/119.88/100/60/59.94/50/30/29.97/25/24/23.98 480p 120/119.88/100/60/59.94 576p 100/50 480i 120/119.88/60/59.94 576i 100/50 |
| Interface / Ports | |
|---|---|
| SDI | 2 x 3G/HD-SDI inputs 2 x 3G/HD-SDI outputs |
| HDMI | 1 x HDMI input 1 x HDMI output |
| Audio | 1 x Headphone jack on front of monitor |
| USB | 1 x USB 2.0 on front 2 x USB 2.0 on rear |
| Controls | |
|---|---|
| Primary Control Interface | Joystick navigation, dedicated back button, and additional dedicated buttons for LUT selection, backlight level, input switch, settings menu, multi-view, page 14 instant selection, and tools menu |
| Recording | Dedicated capture button on front bezel |
| Data Interface | |
|---|---|
| Storage | SD card for LUTs, captured images, image overlays, and firmware upgrades |
| Power | |
|---|---|
| Connectors | 2 x 4-pin XLR input, 12–34 VDC 1 x 2-pin LEMO output, 12 VDC at 4 A maximum |
| Voltage | DC Operating Voltage Range: 12–34 VDC AC Operating Voltage Range: 90–240 VAC |
| Consumption | 17–38 W |
| Supported Batteries | Gold Mount / V-Mount via 4-pin XLR connector |
| Environmental | |
|---|---|
| Compliance | FCC, IC, CE, RoHS |
| Operating Temperature | 41 to 95°F (5 to 35°C) |
| Storage Temperature | 4 to 110°F (-16 to 43°C) |
