The most rugged, fully featured 17" production monitor in the world.
6.829,00 KM5.836,75 KM
Obročno plaćanjeObročno kartično plaćanje bez kamata 2-12 rata putem Visa Classic kartica u izdanju UniCredit Bank. Ostale načine plaćanje provjerite na linku: Načini plaćanja.
Brza dostavaZa sve narudžbe unutar BiH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana. Više detalja provjerite na linku Načini dostave.
KontaktMail: info@aviteh.ba - Telefon: 033 24 67 67 - Adresa poslovnice: Malta 29, Sarajevo

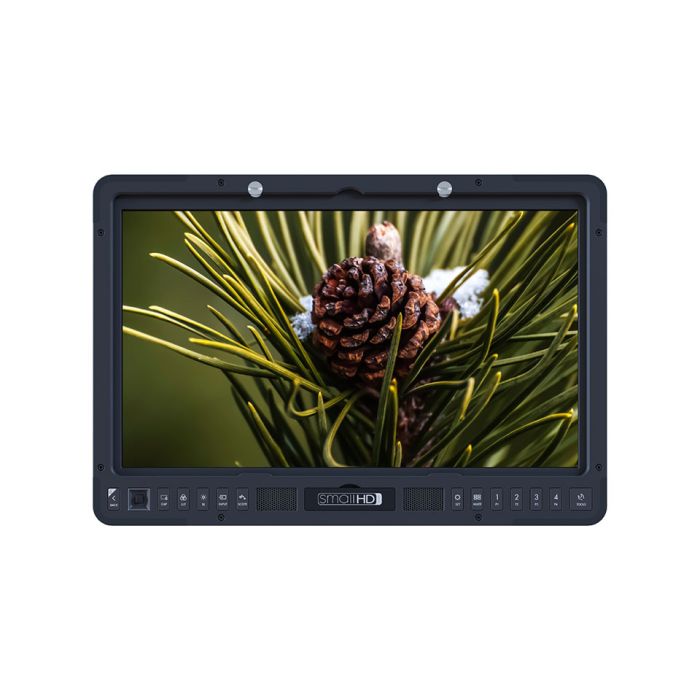

In addition to its 1080p display and comprehensive set of software functions, the 1703 Full HD 17" Studio Production LCD Monitor from SmallHD is milled from billet aluminum for ultra durability, and offers an accessory rail system on the rear for rapid deployment. This advanced 17" production monitor is built to last and to provide efficient ease of use.
The 1703 features dual 3G/HD-SDI and HDMI input and output, 8-bit color depth, and 700:1 contrast ratio. The full list of software tools includes custom LUTs, LUT downstream, and LUT import for a full LUT workflow, as well as anamorphic de-squeeze, waveform, vectorscope, and much more.
The rail system on the rear is comprised of several rows of cold shoe rails that could prove essential in saving you substantial amounts of setup and teardown time. It allows you to slide various gear and accessories, such as wireless transmitters and receivers, right onto the rails.
Providing for further ease of use, the 1703 Studio Production LCD Monitor also allows for hassle-free power via a 4-pin XLR input and LEMO power output. You can conveniently secure a Gold Mount or V-Mount battery plate on the rear and connect a battery using the XLR input. A variety of accessories are available from SmallHD for this monitor, including a screen protector, C-Stand with table stand kit, and cheese plate power kits.
Joystick Navigation, Dedicated Back Button. Additional Dedicated buttons for: LUT Selection; Backlight Level; Input Switch; Settings Menu; Multi View; Page 14 Instant Selection; Tools Menu
Record/Capture
Dedicated Capture Button on Front Bezel
Data I/O
Storage
SD Card for LUTs, Captured Images, Image Overlays, Firmware Upgrades
Power
Connector Type
Dual XLR 1234VDC IN for Batteries, 12V Lemo 2pin OUT 4A Max
Voltage
DC Operating Voltage Range: 12-34 VDC AC Operating Voltage Range: 90 - 240 VAC
Power Consumption
9-15 W
Battery Types
Gold Mount / VMount via 4pin XLR Connector
Environmental
Compliance
FCC, IC, CE, RoHS
Operating Temperature
32F 100F
Storage Temperature
4F-120F
Screen Protection
Acrylic Screen Protector Available as an Option
Height
11.5" (29.21cm)
Width
17.5" (44.45cm)
Depth/Length
2.5" (6.35cm)
Weight (Item Only without battery)
12.0625lb (5.47kg)
Weight (Packaged)
16.86lb (7.65kg)
Mount Points
Multiple ¼”-20 & ⅜”-16 Threads on Top, Bottom, Left & Right Sides. Cold Shoe Style Rails on Back of Monitor. Available Cheeseplate for Battery Bracket Mounting. Available Rapid Rail Mount interfaces with cold shoe slots for 2 additional ¼”-20 threads.
Software
Pixel Zoom (type)
2x & 4x Zoom with smooth pan via joystick
Frame Guides
Yes: Preset Aspect Ratios & Customizable
DSLR Scale
Canon 5DMkii & Canon 7D
Custom Scale
Yes (Underscan Only)
Anamorphic De-Squeeze
Yes: 1.33x, 1.5x, 1.66x, 2.0x
Image Rotate(Manual/Automatic)
Yes Automatic
Image Flip (Manual/Automatic)
Yes Automatic
Cross Conversion
Yes: HDMI → SDI & SDI → HDMI
Focus Assist (Colors)
Yes User Adjustable Color and Intensity
Peaking
Yes User Adjustable Intensity
False Color
Yes Rainbow & Arri Style
Zebra
Yes Dual User Configurable
Waveform
Yes Luma & RGB Style, Fully User Customizable w/ Region of Interest Highlighting
Vectorscope
Yes
RGB Parade
Yes Fully User Customizable
Histogram
Yes Luma & RGB Style
Image Capture
Yes With Dedicated Button
Custom LUTS
Yes Loadable by Page or as Systemwide Color Calibration
LUT Downstream
Yes Available on SDI 1 or HDMI Out
LUT Import
via SD Card
Image Overlay
Yes with Intensity Slider and Blink Setting
Firmware
Compatible with 1700 Series Firmware V3.0 and Later
