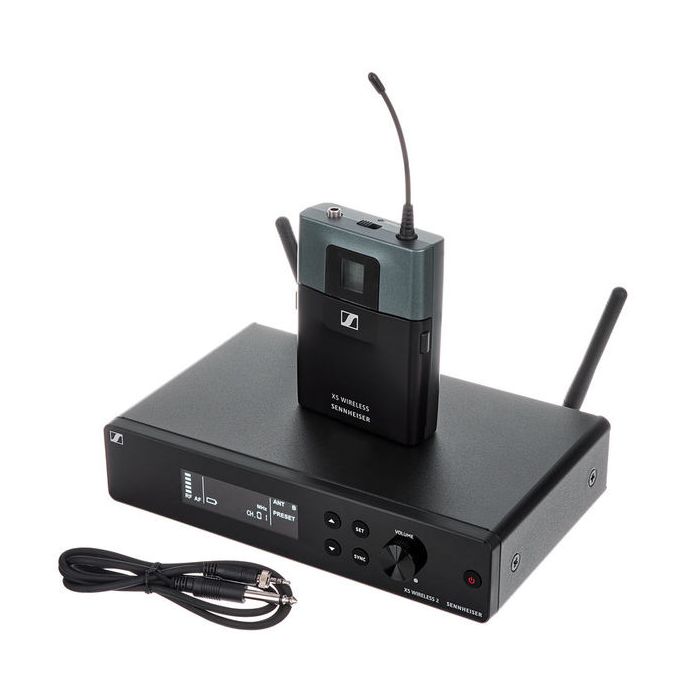

Sennheiser XSW 2-CI1-B

by Sennheiser

Raspoloživost Sarajevo: Isporuka 20-30 dana

SKU

SEN-507137

Fully tunable over a wide range of UHF frequencies

Rackmount kit included

797,00 KM 681,20 KM

Obročno plaćanje Obročno kartično plaćanje bez kamata 2-12 rata putem Visa Classic kartica u izdanju UniCredit Bank. Ostale načine plaćanje provjerite na linku: Načini plaćanja.
Brza dostava Za sve narudžbe unutar BiH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana. Više detalja provjerite na linku Načini dostave.
Kontakt Mail: info@aviteh.ba - Telefon: 033 24 67 67 - Adresa poslovnice: Malta 29, Sarajevo

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Sadržaj pakovanja

1x SK-XSW pocket transmitter
1x EM-XSW2 Diversity receiver
NT 12-5 CW power supply
Ci1 guitar cable
2x AA batteries
Rackkit
Pocket/bag/pouch

Detalji

Amplify your tunes. High flexibility for those willing to go a step further. XS WIRELESS 2 grows with your demands by offering an intuitive LCD display for more manual options and 12 compatible channels in a stable UHF band, withstanding tougher live stage conditions.

True Diversity UHF Wireless System

With pocket transmitter and guitar cable
Frequency range B band: 614 - 638 MHz
Metal housing
24 thomann MHz bandwidth
8 Frequency banks with up to 12 presets for each
External BNC antennas
Auto-Tune to find free frequencies
10 mW transmitter power
Audio frequency range 50 - 16,000 Hz
XLR and jack outputs
Adjustable squelch
Mic/Line switchable

Više informacija

Transmitter
Dimensions	approx. 71 x 96 x 28 mm
Weight	approx. 95g
Operating time	approx. 10 hrs
Power supply	2 AA size batteries, 1.5 V
Housing	robust ABS
Frequency response	50 to 16,000 Hz (–3 dB)
THD, total harmonic distortion	≤ 0.9%
Signal-to-noise ratio	≥ 103 dBA
RF output power	10 mW
Switching bandwidth	up to 24 MHz
Modulation	wideband FM
Output voltage	1/4“ (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu
Diversity reception	True Diversity
Frequency	8 frequency banks, each with up to 12 factory-preset channels
Frequency range	B: 614-638 MHz
Sensitivity	< 3 μV at 52 dB(A)rms S/N
Squelch	switchable from 3 dBμV to 28 dBμV (via Pilot Tone)
Synchronization	2.4 GHz, Low Power OQPSK (only active during synchronization)"
Adjustment Range Transmitter	0 to -30 dB, adjustable in 10 dB steps
Audio adjustment range	40 dB, adjustable in 5-dB steps
Line / Mic level	20 dB, switchable
Temperature Range	operation: 0°C to +40°C, storage: –20°C to +70°C
Receiver Principle	double superheterodyne
