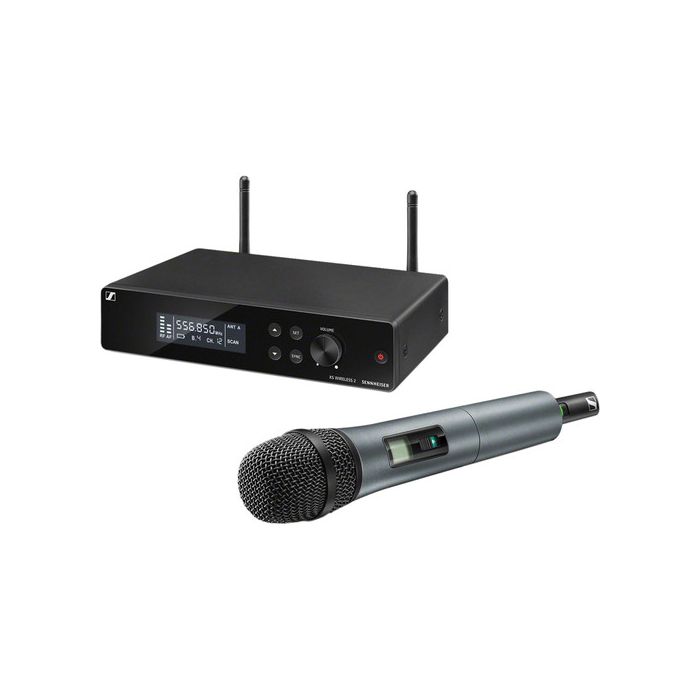

Sennheiser XSW 2-835-GB

by Sennheiser
Raspoloživost Sarajevo: Isporuka 20-30 dana
SKU
SEN-507148

For Live Sound Applications
e835 Evolution Microphone Capsule
True Diversity Receiver
Up to 12 Compatible Channels
External Antennas
Automatic Frequency Synchronization
Remote Channel for Easy Setup
Tunable Over a Range of UHF Frequencies
Includes Rackmount Kit
AA Batteries, Power Supply & Pouch

896,50 KM 766,24 KM

Sadržaj pakovanja

  • Sennheiser XSW 2-835-A Wireless Handheld Microphone System with e835 Capsule (606-630 MHz)
  • EM-XSW 2 Receiver
  • SKM 835-XSW Handheld Transmitter
  • Sennheiser MZQ1 Microphone Clamp for SKM100, 300 and 500
  • NT 12-5 CW Power Supply
  • Rackmount Kit
  • Protective Pouch
  • 2 x AA Batteries

The XSW 2-835-A Wireless Handheld Microphone System with e835 Capsule (A: 548 to 572 MHz) features a true diversity receiver, and a handheld transmitter with an intuitive LCD display. It has 12 compatible channels and is offered as an easy to use, all-in-one wireless system for singers and presenters.

The unit has automatic frequency management and synchronization so you don't have to scramble to find an available channel. The transmitter's e835 capsule uses a cardioid polar pattern, which is part of the evolution series and designed for withstanding tougher, live-stage conditions.

  • True diversity receiver with metal housing
  • External antennas
  • Automatic frequency management and synchronization
  • Remote channel for easy setup
  • Fully tunable over a wide range of UHF frequencies
  • Rackmount kit included
  • Up to 12 compatible channels
System
Wireless Technology Analog UHF
Included Transmitters 1 x Handheld
Diversity True Diversity
RF Frequency Band 606-630 MHz
RF Bandwidth 24 MHz
Frequency Step Size 25 kHz
RF Channel Scanning Auto-Scan
Max Operating Range 100' / 30.5 m (Line of Sight)
Max Transmitters per Band 12
Built-In Recorder No
Timecode Support No
Control App Support No
Encryption None
Modulation Wideband FM
Receiver
Receiver Type Tabletop / Rackmount
Mounting Options Rackmount
Rackmount Size 1 RU (1/2 Rack)
Antenna 2 x External, BNC (Rear-Mount)
Number of Audio Channels 1
Audio I/O 1 x XLR 3-Pin Male Balanced Mic Output
1 x 1/4" TS Female Unbalanced Output
Gain Range 40 dB (5 dB Steps)
Phantom Power Protection None
Frequency Response 50 Hz to 16 kHz
Network I/O None
Word Clock I/O None
USB/Lightning Connectivity None
RF Principle Double Superheterodyne
Squelch Adjustable, 3 to 28 dBμV
Power Requirements AC/DC Power Adapter
AC/DC Power Adapter VDC Included
DC Input Power 12 VDC at 300mA
Display & Indicators 1 x LCD (AF Level, Frequency, Group, Level)
Housing Metal
Operating Temperature 32 to 104°F / 0 to 40°C
Dimensions 7.9 x 1.7 x 5" / 200 x 42 x 127 mm
Weight 24 oz / 680 g
Transmitter
Transmitter Type Handheld
RF Output Power 10 mW
Audio I/O None
Pad None
Muting Off/On Switch
Auto-Level Control No
Signal Processing None
Frequency Response 80 Hz to 16 kHz
Sync Method 2.4 GHz QPSK
Antenna 1 x Internal
Approximate RF Sensitivity 1.5 mV/PA
Power Requirements Battery
Battery Type 2 x AA (Included)
Display & Indicators 1 x LCD (Battery Status, Channel, Power)
Housing ABS
Microphone
Microphone Type Handheld
Color Black
Sound Field Mono
Capsule Dynamic
Polar Pattern Cardioid
Frequency Range 80 Hz to 14 kHz
THD < 0.9%
Sensitivity 1.5 mV/Pa
Length 10.2" / 260 mm
Diameter 2.0" / 50 mm
Weight 8.6 oz / 245 g
Packaging Info
Package Weight 5.2 lb
Box Dimensions (LxWxH) 13.75 x 12.7 x 3.65"
