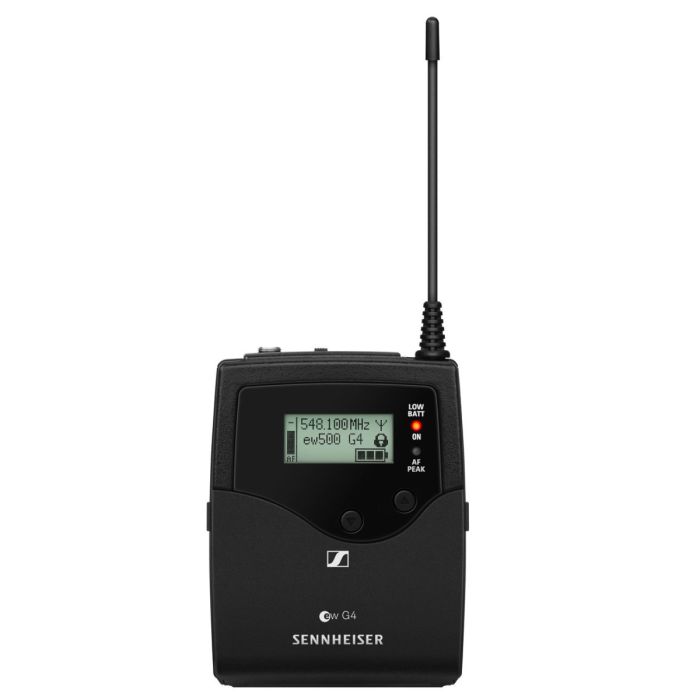

Sennheiser SK 500 G4-BW

by Sennheiser

Raspoloživost Sarajevo: Isporuka 20-30 dana

SKU

SEN-509532

Powerful bodypack transmitter with increased bandwidth and transmission power

956,50 KM 817,52 KM

Obročno plaćanje Obročno kartično plaćanje bez kamata 2-12 rata putem Visa Classic kartica u izdanju UniCredit Bank. Ostale načine plaćanje provjerite na linku: Načini plaćanja.
Brza dostava Za sve narudžbe unutar BiH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana. Više detalja provjerite na linku Načini dostave.
Kontakt Mail: info@aviteh.ba - Telefon: 033 24 67 67 - Adresa poslovnice: Malta 29, Sarajevo

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Sadržaj pakovanja

SK 500 G4 bodypack transmitter
2 AA batteries
pouch
quick guide
safety guide
manufacturer declaration sheet

Detalji

Powerful bodypack transmitter with increased bandwidth and transmission power, ready to take the world’s biggest live stages. For evolution wireless G4 500 Series systems.

Features

Powerful bodypack transmitter with increased bandwidth and transmission power
Easy and flexible wireless synchronization between transmitter and receiver via infrared
Up to 32 compatible channels
Up to 88 MHz bandwidth with 3520 selectable frequencies, fully tunable in a stable UHF range
Ethernet connection for Wireless Systems Manager (WSM) control software for advanced frequency coordination in multi-channel setups
High RF output power (up to 50 mW, adjustable in three steps 10/30/50) depending on country regulations

Više informacija

Modulation	Wideband FM stereo
Frequency Band	BW: (626 to 698 MHz)
Transmission Frequency	Maximum 3250 frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation 6 frequency banks with up to 32 programmable channels
Switching Bandwidth	Up to 88 MHz
Nominal/Peak Deviation	±24 kHz / ±48 kHz
Frequency Stability	≤ ±15 ppm
RF Output Power	At 50 Ohms Switchable: Low: Typical 10 mW Standard: Typical 30 mW High: Typical 50 mW
Pilot Tone Squelch	Can be switched off
Compander	Sennheiser HDX
AF Frequency Response	Mic: 80 Hz to 18 kHz Line: 25 Hz to 18 kHz
Signal to Noise Ratio	Approximately ≥ 115 dBA (1 mV, peak deviation)
Total Harmonic Distortion (THD)	≤ 0.9%
Maximum Input Voltage	Mic and Line: 3 V eff
Input Impedance	Microphone: 68 kOhms, unbalanced Line: 1 MOhms
Input Capacitance	Switchable
Input Sensitivity Range	60 dB, adjustable in 3 dB steps
Temperature Range	14 to 131°F (-10 to 55°C)
Power Supply	2 x AA batteries, 1.5 V or BA 2015 accupack
Nominal Voltage	3 V battery / 2.4 V rechargeable battery
Current Consumption	At Nominal Voltage: Typical 180 mA With Transmitter Switched Off: ≤ 25 μA
Operating Time	Typically 8 hours
Dimensions (L x W x H)	3.2 x 2.5 x 0.9" (82 x 64 x 24 mm)
Weight	5.6 oz (160 g) including batteries
