Sennheiser ew IEM G4-E

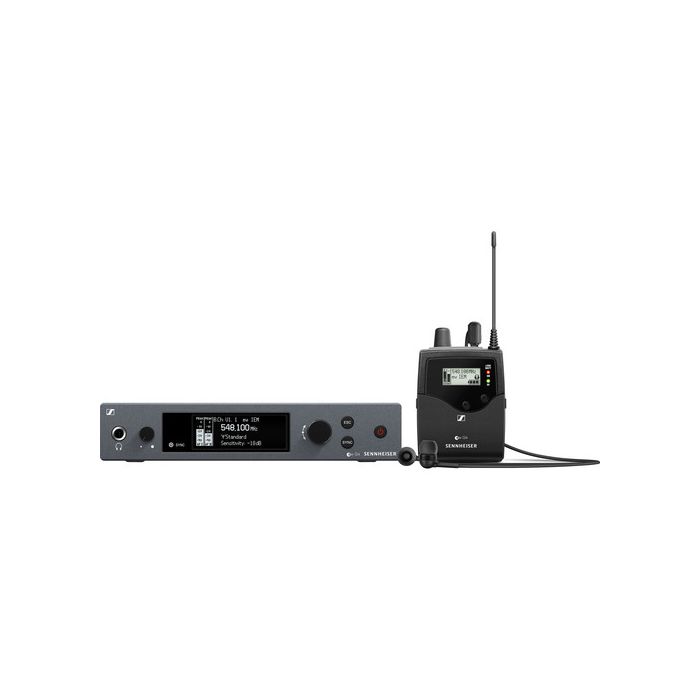

The ew IEM G4 Wireless Monitor System from Sennheiser is part of the evolution family of wireless monitoring systems and includes an SR IEM G4 transmitter, a EK IEM G4 stereo receiver, a pair of IE 4 earphones, a rod antenna, GA 3 rackmount kit, and two AA batteries. This kit can be used as a rugged, all-in-one wireless in-ear monitoring system for live stage, theater, and house of worship applications. The system provides up to 1680 frequencies tunable in 25 kHz steps to deliver clear, audio without interference and dropouts. Additional transmitters and receivers can be added for up to 16 wireless IEM channels.

SR IEM G4 Stereo Transmitter

• The half-rack, stereo transmitter's menu-driven backlit OLED display shows current frequency, frequency bank and channel number, metering of AF level, transmission status, equalizer settings, lock status, and input sensitivity. An auto-lock feature is provided to prevent settings from being accidentally altered.
• Additionally, associated receivers can be synchronized with the transmitter via an integrated infrared interface. This transmitter is built with two electronically balanced XLR-1/4" combo sockets, a 1/4" headphone output with headphone volume control, an
• Ethernet port (RJ-45 for remote network-based monitoring), and a 50-ohm BNC-type antenna input. Finally, it has a rugged metal housing and includes a 12V power supply and a GA 3 rackmount kit.

EK IEM G4 Stereo Bodypack Receiver with IE 4 Earphones

• The bodypack receiver's menu-driven backlit display shows current frequency, frequency bank and channel number, metering of RF level, metering of AF level, lock status, and battery status. An auto-lock feature is provided to prevent settings from being accidentally altered.
• In addition, this receiver includes a switchable high-boost and a multi-level limiter. The limiter is adjustable from -18 to -6 dB in 6 dB steps, or it can be bypassed (off). Built in a rugged metal housing, the unit is powered by two 1.5V AA sized batteries or by a Sennheiser BA 2015 rechargeable accupack. The earphone output uses a 3.5mm stereo jack socket.
• The IE 4 earbuds deliver outstanding sound quality and feature exchangeable eartips, so you can customize the fit to ensure high isolation from outside noise and an excellent bass response.

At a Glance

• Engineered for professional live sound: rugged all-in-one wireless monitoring system for in-ear applications
• Robust bodypack receiver and reliable in-ear monitoring IE 4 headphones deliver clarity along the whole frequency spectrum for daily use on stage
• Half-rack stereo transmitter in a full-metal housing with OLED display for full control
• Easy and flexible wireless synchronization between transmitter and receiver via infrared
• Compatible with Sennheiser's WSM control software for flexible frequency allocation
• Up to 16 compatible channels
• Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in stable UHF range
• Transmission range: up to 300'
• High RF output power (up to 30mW) depending on country regulations
