Sennheiser EW-D SKM-S (U1/5)

by Sennheiser
Raspoloživost Sarajevo: Isporuka 20-30 dana
SKU
SEN-508796

134 dB audio input dynamic range eliminates need for sensitivity adjustments and preserves every detail
Elimination of intermodulation enables channels to be placed in an equidistant tuning grid 600 kHz apart
56 MHz of tuning bandwidth and equidistant spacing enables up to 90 channels
2,240 selectable frequencies allow for fine tuning

597,00 KM 510,26 KM

Sadržaj pakovanja

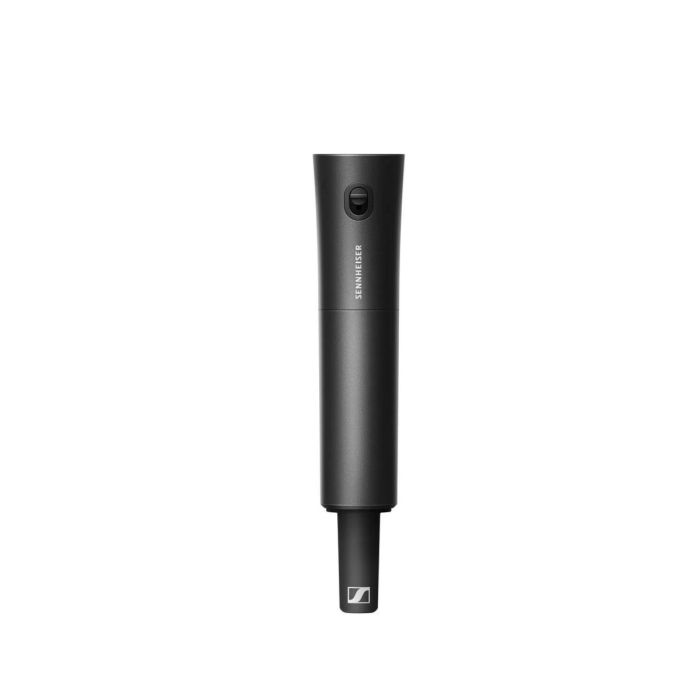

  • EW-D SKM-S handheld transmitter
  • MZQ 1 microphone clamp
  • quick guide
  • safety guide
  • manufacturer declaration sheet

Raising the bar

Evolution Wireless Digital breaks the boundaries by providing more dynamic range than any wireless system currently on the market.

Automatically securing the most reliable signal in a matter of seconds and scalable up 90 channels thanks to 56 MHz of tuning bandwidth, it’s easy to see why this wireless system is in a class of its own.

Equidistant Spacing – simpler than it sounds

Evolution Wireless Digital features an equidistant tuning grid previously only found in our flagship Digital 6000 and Digital 9000 wireless systems.

Quality components with exceptional linearity eliminate intermodulation between EW-D transmitters, allowing frequencies to be equally spaced every 600 kHz alongside each other.

This simplifies frequency coordination for wireless beginners and seasoned professionals alike, and also contributes to the system’s scalability and impressively high channel count.

Versatile and feature-rich digital wireless system for those who sing, speak or play instruments that allows for seamless product pairing and management via the EW-D Smart Assist App.

This handheld transmitter is compatible with a wide range of Sennheiser and Neumann microphone capsules.

Frequency range 823.2 - 831.8 MHz & 863.2 - 864.8 MHz
THD, total harmonic distortion ≤ -60 dB for 1 kHz @ -3 dBfs input level
Weight approx. 304 g (incl. MMD 835 microphone module)
  approx. 195 g (without microphone module)
Operating temperature -10 °C - +55 °C (14 °F - 131 °F)
Power supply

2 AA batteries 1.5 V (alkaline manganese)




or BA 70 rechargeable battery pack


Current consumption

< 300 mA


Input voltage range

2.0 - 4.35 V


Transmission power

Audio link: 10 mW




ERP (Range Y1-3): 12 mW ERP




BLE: max. 10 mW EIRP


Operating relative humidity

5 - 95 % (non-condensing)


Audio frequency response

20 Hz - 20 kHz (-3 dB) @ 3 dBfs


Dimensions 50 x 268 mm (incl. MMD 835 microphone module)


40 x 200 mm (without microphone module)
