Sennheiser EW-D ME2 SET (S7-10)
by Sennheiser134 dB audio input dynamic range eliminates need for sensitivity adjustments and preserves every detail
Elimination of intermodulation enables channels to be placed in an equidistant tuning grid 600 kHz apart
56 MHz of tuning bandwidth and equidistant spacing enables up to 90 channels
2,240 selectable frequencies allow for fine tuning
- Obročno plaćanje Obročno kartično plaćanje bez kamata 2-12 rata putem Visa Classic kartica u izdanju UniCredit Bank. Ostale načine plaćanje provjerite na linku: Načini plaćanja.
- Brza dostava Za sve narudžbe unutar BiH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana. Više detalja provjerite na linku Načini dostave.
- Kontakt Mail: info@aviteh.ba - Telefon: 033 24 67 67 - Adresa poslovnice: Malta 29, Sarajevo

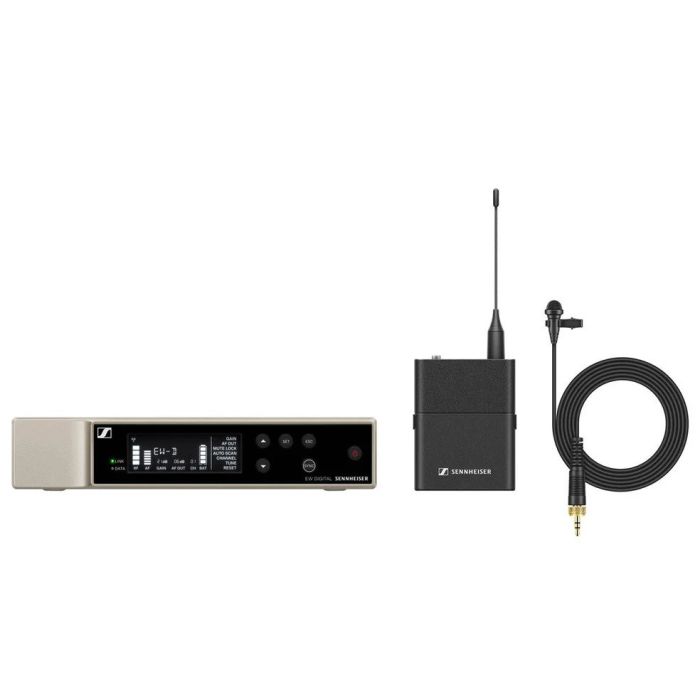

Sadržaj pakovanja
- EW-D EM rack receiver
- EW-D SK bodypack transmitter
- ME 2 lavalier microphone (omni-directional)
- 2 rod antennas
- power supply with country adapters
- rackmount set
- 4 rubber feet
- quick guide
- safety guide
- manufacturer declaration sheet
Raising the bar
Evolution Wireless Digital breaks the boundaries by providing more dynamic range than any wireless system currently on the market.
Automatically securing the most reliable signal in a matter of seconds and scalable up 90 channels thanks to 56 MHz of tuning bandwidth, it’s easy to see why this wireless system is in a class of its own.
Equidistant Spacing – simpler than it sounds
Evolution Wireless Digital features an equidistant tuning grid previously only found in our flagship Digital 6000 and Digital 9000 wireless systems.
Quality components with exceptional linearity eliminate intermodulation between EW-D transmitters, allowing frequencies to be equally spaced every 600 kHz alongside each other.
This simplifies frequency coordination for wireless beginners and seasoned professionals alike, and also contributes to the system’s scalability and impressively high channel count.
Versatile and feature-rich digital wireless system for those who sing, speak or play instruments that allows for seamless product pairing and management via the EW-D Smart Assist App.
Receive state-of-the-art live sound featuring Sennheiser‘s renowned e 835 capsule on a lightweight handheld transmitter with integrated mute switch.
| Frequency range | 662 - 693.8 MHz | ||||
| THD, total harmonic distortion | ≤ -60 dB for 1 kHz @ -3 dBfs input level | ||||
| Operating temperature | -10 °C - +55 °C (14 °F - 131 °F) | ||||
| Operating relative humidity | 5 - 95 % (non-condensing) | ||||
| Audio frequency response | 20 Hz - 20 kHz (-3 dB) @ 3 dBfs | ||||
| System Latency | 1.9 ms | ||||
| Dimensions | 212 x 44 x 189 mm | ||||
| Weight | approx. 1000 g (without antennas and power supply) | ||||
| Current consumption | ≤ 300 mA | ||||
| Input voltage range | 2.0 - 4.35 V | ||||
| Input voltage range | 11 - 13 V ⎓ | ||||
| Transmission power | BLE: max. 10 mW EIRP | ||||
| Audio output level | 18 dBu max | ||||
| Dimensions | 63 x 80 x 20 mm (without antenna) | ||||
| Power supply | 2 AA batteries 1.5 V (alkaline manganese) | ||||
| or BA 70 rechargeable battery pack | |||||
| Current consumption | < 300 mA | ||||
| Transmission power | Audio link: 10 mW | ||||
| ERP (Range Y1-3): 12 mW ERP | |||||
| BLE: max. 10 mW EIRP | |||||
| Weight | approx. 120 g | ||||
| Cable length | approx. 1.60 m | ||||
| Connector | 3.5 mm jack | ||||
| Frequency response | 50 to 18,000 Hz | ||||
| Max. sound pressure level | 130 dB | ||||
| Transducer principle | pre-polarized condensor microphone | ||||
| Pick-up pattern |
omni-directional |
||||
| Sensitivity in free field, no load (1kHz) | 17 mV/Pa | ||||
| Equivalent noise level | 32 dB | ||||
| Power supply | 7.5 V | ||||
