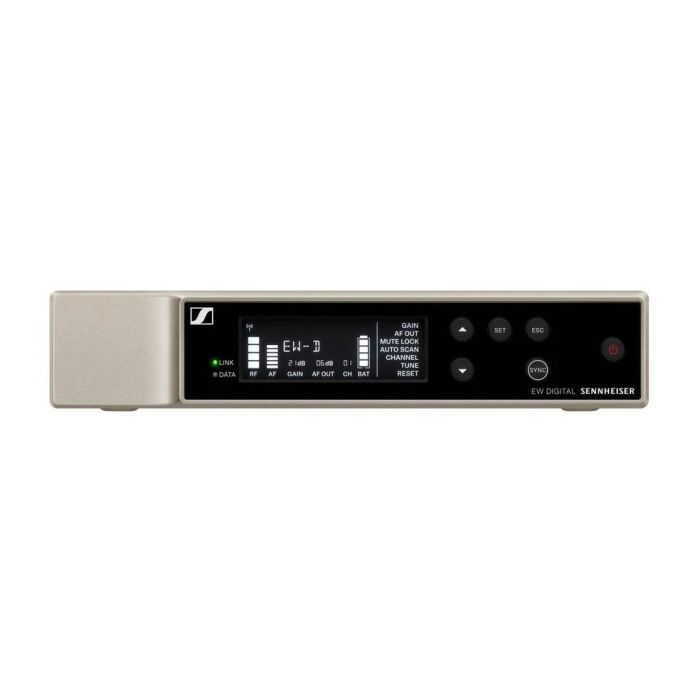

Sennheiser EW-D EM (U1/5)

by Sennheiser
Raspoloživost Sarajevo: Isporuka 20-30 dana
SKU
SEN-508806

134 dB audio input dynamic range eliminates need for sensitivity adjustments and preserves every detail
Elimination of intermodulation enables channels to be placed in an equidistant tuning grid 600 kHz apart
56 MHz of tuning bandwidth and equidistant spacing enables up to 90 channels
2,240 selectable frequencies allow for fine tuning

597,00 KM 510,26 KM

Sadržaj pakovanja

  • EW-D EM rack receiver
  • 2 rod antennas
  • power supply with country adapters
  • rackmount set
  • 4 rubber feet
  • quick guide
  • safety guide
  • manufacturer declaration sheet

Raising the bar

Evolution Wireless Digital breaks the boundaries by providing more dynamic range than any wireless system currently on the market.

Automatically securing the most reliable signal in a matter of seconds and scalable up 90 channels thanks to 56 MHz of tuning bandwidth, it’s easy to see why this wireless system is in a class of its own.

Equidistant Spacing – simpler than it sounds

Evolution Wireless Digital features an equidistant tuning grid previously only found in our flagship Digital 6000 and Digital 9000 wireless systems.

Quality components with exceptional linearity eliminate intermodulation between EW-D transmitters, allowing frequencies to be equally spaced every 600 kHz alongside each other.

This simplifies frequency coordination for wireless beginners and seasoned professionals alike, and also contributes to the system’s scalability and impressively high channel count.

Versatile and feature-rich digital wireless system for those who sing, speak or play instruments that allows for seamless product pairing and management via the EW-D Smart Assist App.

Receive state-of-the-art live sound featuring Sennheiser‘s renowned e 835 capsule on a lightweight handheld transmitter with integrated mute switch.



Frequency range 823.2 - 831.8 MHz & 863.2 - 864.8 MHz
Dimensions 212 x 44 x 189 mm
THD, total harmonic distortion ≤ -60 dB for 1 kHz @ -3 dBfs input level
Weight approx. 1000 g (without antennas and power supply)
Operating temperature -10 °C - +55 °C (14 °F - 131 °F)
Current consumption ≤ 300 mA
Input voltage range 11 - 13 V ⎓
Transmission power BLE: max. 10 mW EIRP
Operating relative humidity  - 95 % (non-condensing)
Audio frequency response 20 Hz - 20 kHz (-3 dB) @ 3 dBfs
Audio output level 18 dBu max
