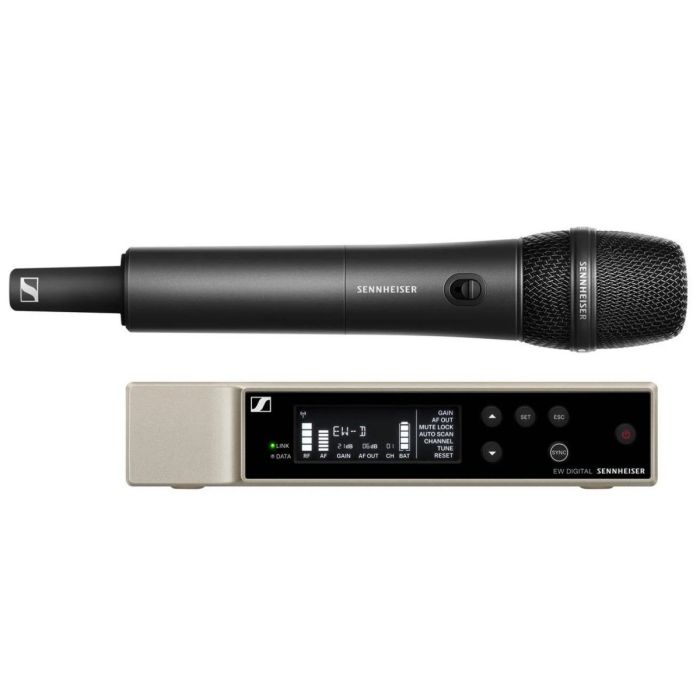

Sennheiser EW-D 835-S SET (S7-10)

Raspoloživost Sarajevo: Isporuka 20-30 dana

SKU

SEN-508755

134 dB audio input dynamic range eliminates need for sensitivity adjustments and preserves every detail
Elimination of intermodulation enables channels to be placed in an equidistant tuning grid 600 kHz apart
56 MHz of tuning bandwidth and equidistant spacing enables up to 90 channels

1.396,00 KM 1.193,16 KM

Obročno plaćanje Obročno kartično plaćanje bez kamata 2-12 rata putem Visa Classic kartica u izdanju UniCredit Bank. Ostale načine plaćanje provjerite na linku: Načini plaćanja.
Brza dostava Za sve narudžbe unutar BiH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana. Više detalja provjerite na linku Načini dostave.
Kontakt Mail: info@aviteh.ba - Telefon: 033 24 67 67 - Adresa poslovnice: Malta 29, Sarajevo

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Sadržaj pakovanja

EW-D EM rack receiver
EW-D SKM-S handheld transmitter
MMD 835 microphone module
MZQ 1 microphone clamp
2 rod antennas
power supply with country adapters
rackmount set
4 rubber feet
quick guide
safety guide
manufacturer declaration sheet

Detalji

Raising the bar

Evolution Wireless Digital breaks the boundaries by providing more dynamic range than any wireless system currently on the market.

Automatically securing the most reliable signal in a matter of seconds and scalable up 90 channels thanks to 56 MHz of tuning bandwidth, it’s easy to see why this wireless system is in a class of its own.

Equidistant Spacing – simpler than it sounds

Evolution Wireless Digital features an equidistant tuning grid previously only found in our flagship Digital 6000 and Digital 9000 wireless systems.

Quality components with exceptional linearity eliminate intermodulation between EW-D transmitters, allowing frequencies to be equally spaced every 600 kHz alongside each other.

This simplifies frequency coordination for wireless beginners and seasoned professionals alike, and also contributes to the system’s scalability and impressively high channel count.

Versatile and feature-rich digital wireless system for those who sing, speak or play instruments that allows for seamless product pairing and management via the EW-D Smart Assist App.

Receive state-of-the-art live sound featuring Sennheiser‘s renowned e 835 capsule on a lightweight handheld transmitter with integrated mute switch.

Više informacija

Frequency range	662 - 693.8 MHz
THD, total harmonic distortion	≤ -60 dB for 1 kHz @ -3 dBfs input level
Operating temperature	-10 °C - +55 °C (14 °F - 131 °F)
Operating relative humidity	5 - 95 % (non-condensing)
Audio frequency response	20 Hz - 20 kHz (-3 dB) @ 3 dBfs
System Latency	1.9 ms
Dimensions	212 x 44 x 189 mm
Weight	approx. 1000 g (without antennas and power supply)
Current consumption	≤ 300 mA
Input voltage range	11 - 13 V ⎓
Audio output level	18 dBu max.
Transmission power	BLE: max. 10 mW EIRP
Dimensions	405 x 350 x 73 mm
Sound pressure level (SPL)	154 dB
Transducer principle	dynamic
Weight	3.1 kg
Pick-up pattern	cardioid
Sensitivity	2.1 mV/Pa
Weight	approx. 304 g (incl. MMD 835 microphone module)
	approx. 195 g (without microphone module)
Power supply	2 AA batteries 1.5 V (alkaline manganese)
	or BA 70 rechargeable battery pack
Current consumption	< 300 mA
Input voltage range	2.0 - 4.35 V
Transmission power	Audio link: 10 mW
	ERP (Range Y1-3): 12 mW ERP
	BLE: max. 10 mW EIRP
Dimensions	50 x 268 mm (incl. MMD 835 microphone module)
	40 x 200 mm (without microphone module)
