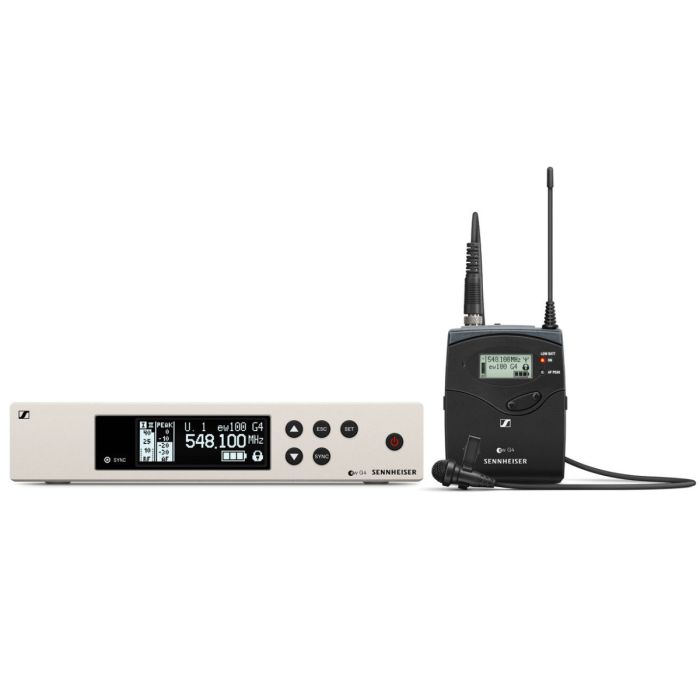

Sennheiser ew 100 G4-ME2-1G8

by Sennheiser

Raspoloživost Sarajevo: Isporuka 20-30 dana

SKU

SEN-509952

Engineered for professional live sound: Rugged all-in-one wireless system for presenters and moderators.

1.435,00 KM 1.226,50 KM

Obročno plaćanje Obročno kartično plaćanje bez kamata 2-12 rata putem Visa Classic kartica u izdanju UniCredit Bank. Ostale načine plaćanje provjerite na linku: Načini plaćanja.
Brza dostava Za sve narudžbe unutar BiH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana. Više detalja provjerite na linku Načini dostave.
Kontakt Mail: info@aviteh.ba - Telefon: 033 24 67 67 - Adresa poslovnice: Malta 29, Sarajevo

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Sadržaj pakovanja

EM 100 G4 true diversity receiver
SK 100 G4 bodypack transmitter
ME 2 clip-on microphone (ew 100 G4-ME2 set only)
ME 4 clip-on microphone (ew 100 G4-ME4 set only)
GA 3 rackmount set
power supply
2 AA batteries
2 rod antennas
RJ 10 cable
quick guide
safety guide
manufacturer declaration sheet
frequency supplement sheet

Detalji

Versatile wireless systems for those who sing, speak or play instruments with up to 42 MHz tuning bandwidth in a stable UHF range and fast, simultaneous setup of up to 12 linked systems.
The perfect choice for moderators and presenters: Robust bodypack transmitter and unobtrousive clip-on microphone ME 2-II (omni-directional) or ME 4 (cardioid) with high speech intelligibility for easy hands-free operation on any stage.

Features

Engineered for professional live sound: Rugged all-in-one wireless system for presenters and moderators.
Robust bodypack transmitter and unobstrusive clip-on microphone ME 2-II (omni-directional) or ME 4 (cardioid) with high speech intelligibility for daily use on stage
True diversity half-rack receiver in a full-metal housing with intuitive LCD display for full control
Easy and flexible wireless synchronization between transmitter and receiver via infrared
Fast frequency allocation for up to 12 receivers via new linking functionality
Up to 20 compatible channels
Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range
Transmission Range: up to 100 meters / 300 feet
High RF output power (up to 30 mW) depending on country regulations

Više informacija

Modulation	Wideband FM
Frequency Range	1G8: (1785 to 1800 MHz)
Transmission Frequencies	Maximum 1680 receiving frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels
Switching Bandwidth	Up to 42 MHz
Nominal/Peak Deviation	±24 kHz / ±48 kHz
Frequency Stability	≤ ±15 ppm
RF Output Power	Maximum 30 mW at 50 Ohms
Pilot Tone Squelch	Can be switched off
Compander	Sennheiser HDX
AF Frequency Response	Mic: 80 Hz to 18 kHz Line: 25 Hz to 18 kHz
Signal to Noise Ratio	≥ 110 dBA (1 mV, peak deviation)
Total Harmonic Distortion (THD)	≤ 0.9%
Maximum Input Voltage	Microphone/Line: 3 V eff
Input Impedance	Microphone/Line: 40 kOhms, unbalanced / 1 MOhms
Input Capacitance	Switchable
Input Sensitivity Range	60 dB, adjustable in 3 dB steps
Temperature Range	14 to 131°F (-10 to 55°C)
Power Supply	2 x AA batteries, 1.5 V or BA 2015 accupack
Nominal Voltage	3 V battery / 2.4 V rechargeable battery
Current Consumption	At Nominal Voltage: Approximately 180 mA With Transmitter Switched Off: ≤ 25 µA
Operating Time	Typically 8 hours
Dimensions (W x L x H)	3.2 x 2.5 x 0.6" (82 x 64 x 24 mm)
Weight	5.6 oz (160 g)

Packaging Info
Box Dimensions (LxWxH)	14.0 x 3.2 x 2.9"

EM 100 G4 Wireless UHF True Diversity Rackmount Receiver 1G8: (1785 to 1800 MHz)

Receiver
Frequency Band	1G8: (1785 to 1800 MHz)
Type of Receiver	EM 100 G4 half-rack mountable true diversity UHF
Receiving Frequency	Maximum 1680 receiving frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels
Switching Bandwidth	Up to 42 MHz
Nominal/Peak Deviation	±24 kHz / ±48 kHz
Receiver Type	True diversity
Sensitivity	< 2.5 μV for 52 dBA (with HDX, peak deviation)
Adjacent Channel Selectivity	Typically ≥ 65 dB
Intermodulation Attenuation	Typically ≥ 65 dB
Blocking	≥ 70 dB
Squelch	Low: 5 dB µV Middle: 15 dB µV High: 25 dB μV
Pilot Tone	Squelch: Can be switched off
Antenna Inputs	2 x BNC sockets
Compander	Sennheiser HDX
EQ Presets	Switchable, act on line and monitor outputs Preset 1: Flat Preset 2: Low Cut (-3 dB at 180 Hz) Preset 3: Low Cut/High Boost (-3 dB at 180 Hz, +6 dB at 10 kHz) Preset 4: High Boost (+6 dB at 10 kHz)
Signal to Noise Ratio	≥ 110 dBA (1 mV, peak deviation)
Total Harmonic Distortion (THD)	≤ 0.9%
AF Output	1/4" (6.3 mm) jack socket unbalanced, +12 dBu XLR socket balanced, +18 dBu
Output Range	AF Out: 48 dB (3 dB steps)
Temperature Range	14 to 131°F (-10 to 55°C)
Power Supply	12 VDC, 300 mA
Dimensions (W x L x H)	7.48 x 8.35 x 1.69" (190 x 212 x 43 mm)
Weight	2.16 lb (980 g)

ME 2-II Omnidirectional Lavalier Microphone (Black)

Compatibility	AVX, evolution wireless D1, SpeechLine Digital Wireless, XS Wireless 1, XS Wireless 2
Transducer	Permanent polarized condenser
Polar Pattern	Omnidirectional
Sensitivity	20 mV/Pa
EIN	36 dB
Maximum SPL	130 dB
Operating Voltage	7.5 V
Frequency Response	50 Hz to 18 kHz
Connector	Threaded EW 3.5 mm connector
Windscreen	Integrated, fixed
RF	100% compliant RF compatibility
Cable Length	5.2' / 1.6 m
Diameter	0.4" / 10.5 mm
