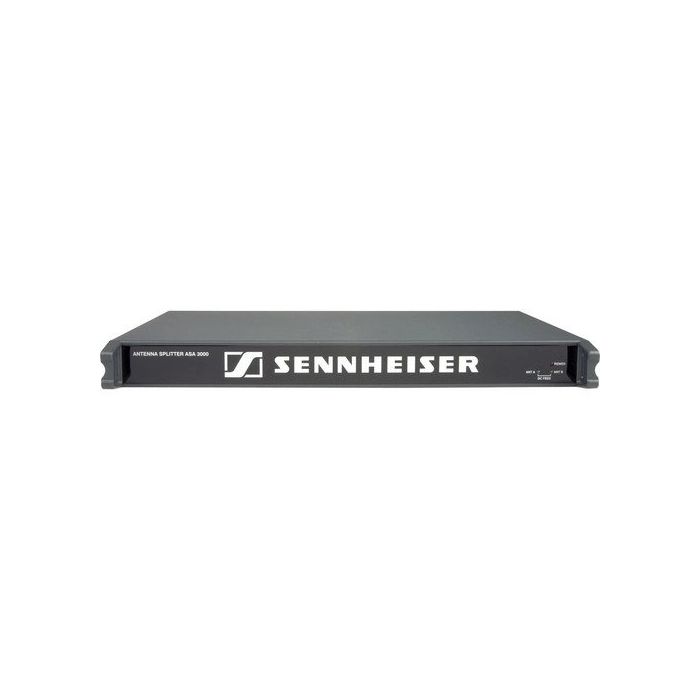

Sennheiser ASA 3000
by SennheiserActive wideband antenna splitter for up to 16 channels (8 dual receivers), may be made narrowband with optional IM3000 selective RF input modules - cables not included
- Obročno plaćanje Obročno kartično plaćanje bez kamata 2-12 rata putem Visa Classic kartica u izdanju UniCredit Bank. Ostale načine plaćanje provjerite na linku: Načini plaćanja.
- Brza dostava Za sve narudžbe unutar BiH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana. Više detalja provjerite na linku Načini dostave.
- Kontakt Mail: info@aviteh.ba - Telefon: 033 24 67 67 - Adresa poslovnice: Malta 29, Sarajevo
Sadržaj pakovanja
- Sennheiser ASA 3000 2 x 1:8 Active Antenna Splitter
- Mains Cable
- Rack-Mounting Kit
- Set of Self-Adhesive Plastic Feet
- 2 x Telescopic Antenna
With the ASA 3000 2 x 1:8 Active Antenna Splitter from Sennheiser, up to 8 receivers (EM 3031) or twin receivers (EM 3032, EM 3532) can be operated with only 1 pair of diversity antennas. Each diversity section is fitted with a wideband input module, which can be exchanged for a selective input module.
Because of the built-in antenna boosters, the signals are routed without loss to the connected receivers. The active antenna splitter allows you to make receiver systems with up to 16 channels. The splitter is suited for use in multi-channel RF installations (fixed or mobile) or in permanent installations in small conference centers and venues.
| Antenna Signal | 2 x 1:8, active |
| Frequency Range | 470 to 870 MHz |
| Attenuation | +3 / -1 dB |
| Nominal Impedance | Inputs/Outputs: 50 Ω |
| Input Connections | A/B: BNC sockets |
| Output Connections | A1-A8/B1-B8: BNC sockets |
| Booster | At the Inputs A and B: 12 V, 70 mA maximum each, short circuit-proof |
| Supply Voltage | 100 to 240 VAC, 50/60 Hz, nominal |
| Power Consumption | Maximum 8 VA |
| Temperature Range | 14 to 131°F (-10 to +55°C) |
| Dimensions | 19.0" (482.6 mm), 1U |
| Weight | Approximately 6.6 lb (3.0 kg) |
| Package Weight | 11.552 lb |
| Box Dimensions (LxWxH) | 21 x 13.1 x 6.2" |
