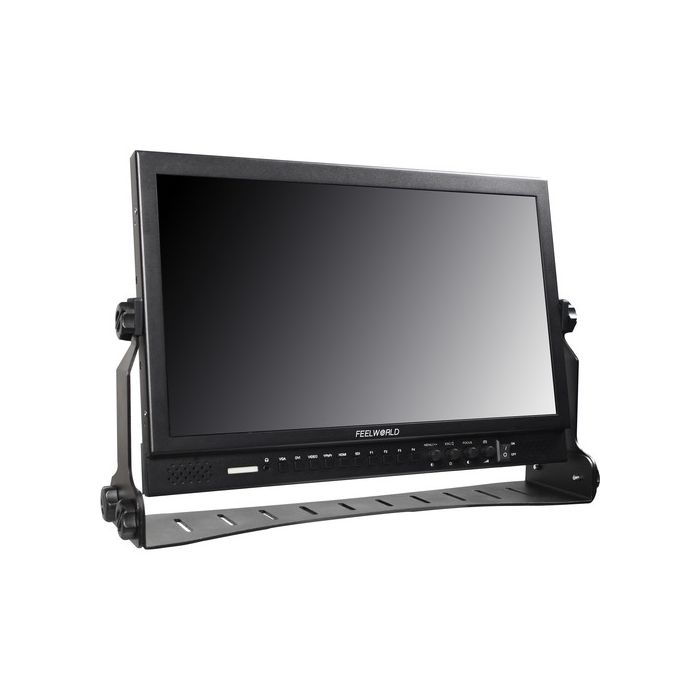

Seetec P173-9HSD SDI monitor

by FeelWorld

Raspoloživost Sarajevo: Isporuka 20-30 dana

SKU

P173-9HSD

17.3" 1920x1080 IPS LCD
Supports 4K, HD, and SD Formats
SDI, HDMI, DVI, YPbPr, Composite Inputs

1.126,00 KM 962,39 KM

Obročno plaćanje Obročno kartično plaćanje bez kamata 2-12 rata putem Visa Classic kartica u izdanju UniCredit Bank. Ostale načine plaćanje provjerite na linku: Načini plaćanja.
Brza dostava Za sve narudžbe unutar BiH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana. Više detalja provjerite na linku Načini dostave.
Kontakt Mail: info@aviteh.ba - Telefon: 033 24 67 67 - Adresa poslovnice: Malta 29, Sarajevo

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Sadržaj pakovanja

FeelWorld P173-9HSD 17.3" Broadcast LCD Monitor
Power Supply
V-Mount Battery Plate
Mini HDMI Cable
Tally Kit
Sunshade
U-Bracket

Detalji

Featuring a full-HD IPS LCD panel, the FeelWorld P173-9HSD 17.3" Broadcast LCD Monitor can be used for 4K, HD, as well as SD workflows in studio, broadcast, and other professional video applications. The rear panel contains SDI, HDMI, DVI, component, and composite inputs, and outputs are available for SDI, HDMI, component and composite. The HDMI input will accept both DCI and UHD 4K signals for high-resolution productions. A separate audio input for analog stereo audio is available via RCA connections. A tally input can be used for studio integration.

Professional monitoring tools such as focus peaking, markers, monochrome, R/G/B-only, pixel-to-pixel mapping, and image flip are built-in for analyzing your video and ensuring a proper image. A V-mount plate is built into the back for powering in the field, away from a mains source. If shooting outdoors attach the included sunhood for optimal contrast. A U-bracket is also included for convenient tabletop mounting.

Monitoring Tools

Peaking Focus Assist (Red highlight over parts of the monochrome image in focus)
R/G/B-only and monochrome viewing modes
Camera scaling mode
Pixel-to-pixel mapping
Aspect ratio and title-safe markers
Image flip
Image freeze

Više informacija

FeelWorld P 9HSD Monitor Specs

Display

Panel Type	TFT LCD
Display Size	17.3" / 43.9 cm
Resolution	1920 x 1080
Aspect Ratio	16:9
Viewing Angle	Horizontal: 160° Vertical: 140°
Maximum Brightness	400 cd/m²
Contrast Ratio	600:1
Dot Pitch	0.1989 x 0.1989 mm
Bit Depth / Color Support	8-Bit (16.7 Million Colors)
Image Controls	Blue Only, Focus Peaking, Image Flip, Pixel-to-Pixel Zoom, Screen Markers

I/O

Video	1 x BNC (3G-SDI) Output 1 x HDMI Type A Output 1 x 3BNC (Component) Output 1 x BNC (Composite) Output 1 x BNC (3G-SDI) Input 1 x HDMI Type A Input 1 x 3BNC (Component) Input 1 x DVI-I Input 1 x BNC (Composite) Input
Audio	1 x RCA Input 1 x 1/8" / 3.5 mm Headphone Output
Built-In Speaker	2
Media/Memory Card Slot	None

Format Support

Video Format

HDMI
DCI 4K: 23.98/24
UHD 4K: 23.98/24/25/29.97/30
1080p: 23.98/24/25/29.97/30/50/59.94/60
1080PsF: 23.98/24
1080i: 50/59.94/60
720p: 29.97/30/50/59.94/60
576p
576i
480p
480i
SDI
1080p: 23.98/24/25/29.97/30/50/59.94/60
1080PsF: 23.98/24
1080i: 50/59.94/60
720p: 23.98/24/25/29.97/30/50/59.94/60
480i
576i

Power
