Sachtler System FSB 8 75/2 AL GS Mk II

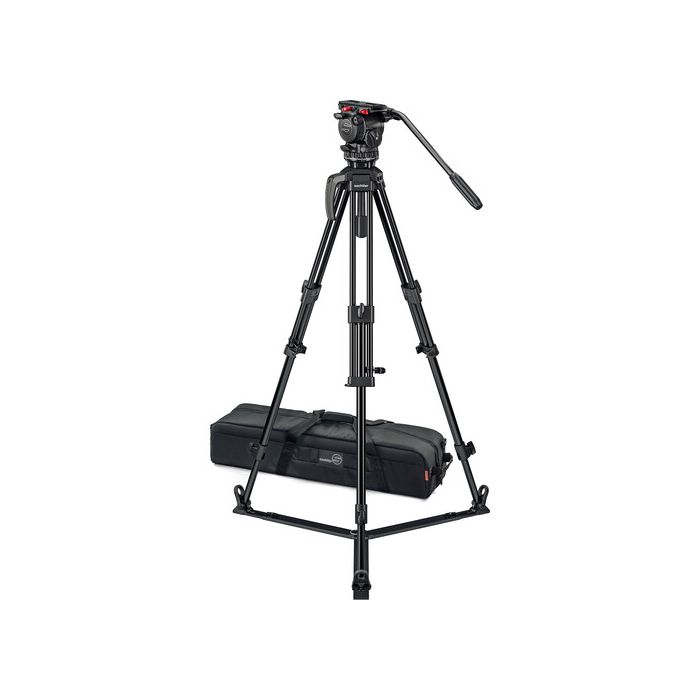

by SachtlerThe 75/2 Mark II Aluminum Tripod System with FSB 8 MK II Fluid Head & Ground Spreader from Sachtler pairs the FSB 8 MK II fluid head and the aluminum 75/2 tripod legs with a ground spreader.
- Obročno plaćanje Obročno kartično plaćanje bez kamata 2-12 rata putem Visa Classic kartica u izdanju UniCredit Bank. Ostale načine plaćanje provjerite na linku: Načini plaćanja.
- Brza dostava Za sve narudžbe unutar BiH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana. Više detalja provjerite na linku Načini dostave.
- Kontakt Mail: info@aviteh.ba - Telefon: 033 24 67 67 - Adresa poslovnice: Malta 29, Sarajevo
Sadržaj pakovanja
- Sachtler FSB 8 MK II Fluid Head with Sideload Mechanism
- Sachtler Pan Handle DV 75
- Sachtler Sideload Plate S/Ace Tripod QR Plate
- Sachtler 75/2 Mark II Aluminum Tripod (75mm)
- Sachtler Carry Handle for Ace Mark II Tripods
- Sachtler Spreader SP 75 Ground Tripod Spreader
- Sachtler Carry Handle for Ace Mark II Tripods
- Sachtler Padded Bag for flowtech 75 or TT Tripod with FSB Fluid Head
The 75/2 Mark II Aluminum Tripod System with FSB 8 MK II Fluid Head & Ground Spreader from Sachtler pairs the FSB 8 MK II fluid head and the aluminum 75/2 tripod legs with a ground spreader. This kit offers a 26.4 lb load capacity for midsized camera rigs, as well as a sliding camera plate and 5-step counterbalance. Carry the system with the included handle and bag for easy transport to the set.
- FSB 8 MK II Fluid Head
- 2-Stage Aluminum Tripod
- 26.4 lb Load Capacity
- 5-Step Counterbalance
- Ground-Level Spreader
Sachtler FSB 8 MK II Fluid Head with Sideload Mechanism
Fast to work with and lightweight at only 5.72 lb, the Sachtler FSB 8 MK II Fluid Head with Sideload Mechanism supports up to 26.4 lb of camera and accessories, and with its 15-steps of counterbalance adjustment, you can tune the head to work with the lightest of cameras. The head features a 75mm ball for quick leveling, and the independent drag adjustment and tilt locks permit you to adjust and move the head with precision to tune it to match the needs of your shot.
The head allows you to tilt forward so you can tilt straight down and tilt almost straight up as well. Pan and tilt have seven independent drag settings, plus a zero setting for no drag at all. Borrowing from the aktiv system, the bubble level has been improved, not only is it illuminated, but now you can see the bubble level from the side, as well as when looking down on the head, for intuitive leveling from almost any position.
15-Step Counterbalance
The 15-step counterbalance settings let you adjust the head to neutralize the weight of cameras up to 26.4 lb, so the head remains in the position you set it and does not tilt forward of back because of the weight of your camera. This allows you to tune the head to match the weight of your cameras, allowing you to work equally well with extremely lightweight cameras as well as cameras weighing up to 26.4 lb. The zero setting provides you a completely free movement if you want.
Frictionless Leak-Proof Fluid Damping
Frictionless leak-proof fluid damping with 7 x levels of drag, for smooth pictures while panning, without jerks and vibrations. Identical across both horizontal and vertical planes, and allows complete disengagement of drag for fast panning
Quick Release
The FSB 8 MK II features Sachtler's Sideload mechanism, which allows you to pop the plate in above instead of trying to slide it in from the edge, and it boasts an exceptionally large sliding range of 4.7"
Sachtler 75/2 Mark II Aluminum Tripod (75mm)
Designed to support ultra-light camcorders and DSLR/mirrorless camera builds, this 75/2 Mark II Aluminum Tripod features a strong set of two-stage aluminum with a 44 lb load capacity. This tripod requires a separately available ground or mid-level spreader. Depending on which spreader you use, the height range can span 16.6 to 62.2" or 24.8 to 60.6", respectively. A 75mm bowl and three 3/8"-16 mounting threads help attach a fluid head of your choice. Use the carry handle to transport the tripod to the set.
Sachtler Spreader SP 75 Ground Tripod Spreader
The Sachtler SP 75 Ground Tripod Spreader fits all 75mm tripods except flowtech, Soom, and Ace M/MS, and it's used when shooting on a level surface such as a studio, city street, office, sports field, or stadium. It allows for rapid setup and pull-down by keeping tripod legs at an equal or preset distance relative to each other. The SP 75 spreader attaches directly to the bottom of a tripod's feet and its telescopic arms allow for the extension of the legs.
Sachtler Carry Handle for Ace Mark II Tripods
For Sachtler Ace Mark II and FSB fluid head users using the 75/2 Mark II tripod, this Carry Handle allows you to carry your tripod system with a single hand for easy transport on set. Attach the handle to one of the three 3/8"-16 mounting threads on your Mark II tripod bowl.
Sachtler Padded Bag for flowtech 75 or TT Tripod with FSB Fluid Head
With dimensions of 36.6 x 7.9 x 9.1", this Padded Bag from Sachtler is designed specifically for carrying a flowtech 75 or TT tripod equipped with an FSB fluid head. It is made with a high-density 900D fabric, which is both flame retardant and water-resistant to help ensure that your equipment stays safe. Additionally, layers of both open-cell and closed-cell foam are used in the construction to protect your gear against small bumps and shocks.
The bag opens via a full-length zipper found at the top, which allows for easy access while shooting. For transport, two straps on each side can be connected to an integrated handgrip for easy carrying. There are also small handles on each side of the bag where the zipper ends, and right next to them are D-rings that can be used to connect an optional shoulder strap. Finally, a clear plastic window on the outside allows you to insert a tag with your name or phone number for easy identification when travelling.
- Padded bag with dimensions of 36.6 x 7.9 x 9.1", designed for carrying a flowtech 75 or TT tripod with an FSB fluid head
- 900D water-resistant fabric on the exterior, with layers of foam to help cushion gear against bumps
- Full-length zipper allows for easy access to the interior compartment
- Connecting hand straps, side handles, and D-rings available for transport
- Clear plastic window on one of the sides allows you to insert a name tag for easy identification
Sachtler FSB 8 MK II Fluid Head With Sideload Mechanism Specs | |
Camera Attachment | |
Camera Plate Features | Quick Release, Sliding Balance Plate |
Camera Plate Type | Sideload Plate S |
Balance Plate Sliding Range | 4.68" / 118.87 mm |
Safety Lock | Yes |
Head | |
Base Mount | 75 mm Half Ball |
Counter Balance | Incremental 15-Step |
Pan Handle Fittings | 2x Rosette |
Bubble Level | 1x Illuminated |
Pan & Tilt | |
Drag Control | Tilt: 7-Step Plus 0 |
Drag Type | Fluid |
Vertical Tilt | +90° to -70° |
Panning Range | 360° |
Independent Pan Lock | Yes |
Independent Tilt Lock | Yes |
General | |
Load Capacity | 26.4 lb / 12 kg |
Operating Temperature | -40 to 140°F / -40 to 60°C |
Weight | 5.72 lb / 2.59 kg |
Packaging Info | |
Package Weight | 8.13 lb |
Box Dimensions (LxWxH) | 19.4 x 9.6 x 8.1" |
Sachtler 75/2 Mark II Aluminum Tripod (75mm) Specs | |
General | |
Load Capacity | 44.1 lb / 20 kg |
Head Mount Type | 75 mm Bowl |
Maximum Working Height | 62.2" / 158 cm (with Spreader) |
60.6" / 154 cm (with Spreader) | |
Minimum Working Height | 16.9" / 43 cm (with Spreader) |
24.8" / 63 cm (with Spreader) | |
Closed Length | 28.0" / 71 cm |
Materials | Aluminum |
Weight | 4.9 lb / 2.2 kg |
Legs | |
Spreader | Mid-Level, Ground |
Packaging Info | |
Package Weight | 7.055 lb |
Box Dimensions (LxWxH) | 30.7 x 7.9 x 7.3" |
Sachtler Spreader SP 75 Ground Tripod Spreader Specs | |
Payload | 88.2 lb / 40 kg |
Construction | Plastic |
Rubber | |
Type | On-Ground |
Adjustable | Yes |
Minimum Length | 13.0" / 33.0 cm |
Maximum Length | 22.8" / 57.9 cm |
Weight | 1.3 lb / 589.7 g |
Packaging Info | |
Package Weight | 1.4 lb |
Box Dimensions (LxWxH) | 14.8 x 4.95 x 4.55" |
Sachtler Carry Handle For Ace Mark II Tripods Specs | |
General | |
Compatibility | Sachtler Ace Mark II / FSB / 75/2 Mark II Tripod |
Physical | |
Mounting | 1 x 3/8"-16 Mounting Point |
Packaging Info | |
Package Weight | 0.26 lb |
Box Dimensions (LxWxH) | 6.8 x 4.55 x 1.35" |
Sachtler Padded Bag For Flowtech 75 Or TT Tripod With FSB Fluid Head Specs | |
Features | |
ATA Compliant | No |
Bottle Pocket | No |
Pressure/Purge Valve | No |
General | |
Materials | Exterior: Nylon |
Padded Interior | Yes |
Weight | Not Specified by Manufacturer |
Packaging Info | |
Package Weight | 4.6 lb |
Box Dimensions (LxWxH) | 36.5 x 9 x 6.8" |
