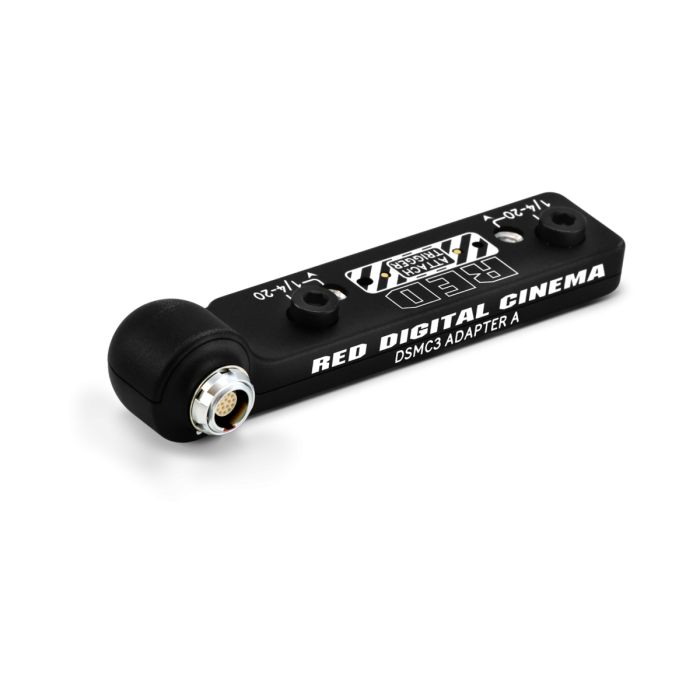

RED DSMC3 Adapter A

by RED

Raspoloživost Sarajevo: Isporuka 20-30 dana

SKU

720-0069

DSMC3™ Adapter A attaches to the top of the KOMODO-X™ (firmware support coming late Q1 2024), the V-RAPTOR®, or the V-RAPTOR XL.

KM 2.008,00 KM 1.716,24

Obročno plaćanje Obročno kartično plaćanje bez kamata 2-12 rata putem Visa Classic kartica u izdanju UniCredit Bank. Ostale načine plaćanje provjerite na linku: Načini plaćanja.
Brza dostava Za sve narudžbe unutar BiH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana. Više detalja provjerite na linku Načini dostave.
Kontakt Mail: info@aviteh.ba - Telefon: 033 24 67 67 - Adresa poslovnice: Malta 29, Sarajevo

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Sadržaj pakovanja

RED DSMC3 Adapter A

Detalji

DSMC3™ Adapter A attaches to the top of the KOMODO-X™ (firmware support coming late Q1 2024), the V-RAPTOR®, or the V-RAPTOR XL, and it provides a 16-Pin output that provides power, video, and control to the RED® Compact EVF and DSMC2® RED EVF (OLED).

The DSMC3 Adapter A includes a Run-Stop trigger pass-through that the operator can use for the V-RAPTOR, for the Compact Top Handles, and for Third-Party accessories.

NOTES:

The DSMC3 Adapter A is not compatible with the DSMC3 RED Touch 7.0" LCD or KOMODO Outrigger Handle.
To prevent damage to the camera, the DSMC3 Adapter A should only be attached or removed while the camera is powered off.

CAMERA COMPATIBILITY

KOMODO-X
V-RAPTOR
V-RAPTOR XL

Više informacija

DIMENSIONS	Height: 1.3 in. (33.0 mm)
	Width: 5.2 in. (132.1 mm)
	Depth: 1.42 in. (36.1 mm)
WEIGHT	0.25 lbs (113.4 g)
MATERIAL	Aluminum
EVF CONNECTION	16-Pin 1B LEMO socket
CAMERA MOUNTING	2x 1/4-20 captive mounting screws
ACCESSORY MOUNTING	2x 1/4-20 mounting points with trigger pass-through
OPERATING TEMPERATURE	32°F to 104°F (0°C to 40°C)
STORAGE TEMPERATURE	–4°F to 122°F (–20°C to 50°C)
OPERATING HUMIDITY	0% to 85%, non-condensing
STORAGE HUMIDITY	0% to 85%, non-condensing
