Portkeys HS8 Monitor

by PortKeys

Raspoloživost Sarajevo: Isporuka 7-10 dana

Raspoloživost Zagreb: Dostupno

SKU

PK-HS8

View your video capture with 3D LUT output using the HS8 8" 3G-SDI 4K HDMI/3G-SDI High-Bright Monitor with 3D LUT Support from PORTKEYS

1.001,50 KM 855,98 KM

Obročno plaćanje Obročno kartično plaćanje bez kamata 2-12 rata putem Visa Classic kartica u izdanju UniCredit Bank. Ostale načine plaćanje provjerite na linku: Načini plaćanja.
Brza dostava Za sve narudžbe unutar BiH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana. Više detalja provjerite na linku Načini dostave.
Kontakt Mail: info@aviteh.ba - Telefon: 033 24 67 67 - Adresa poslovnice: Malta 29, Sarajevo

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Sadržaj pakovanja

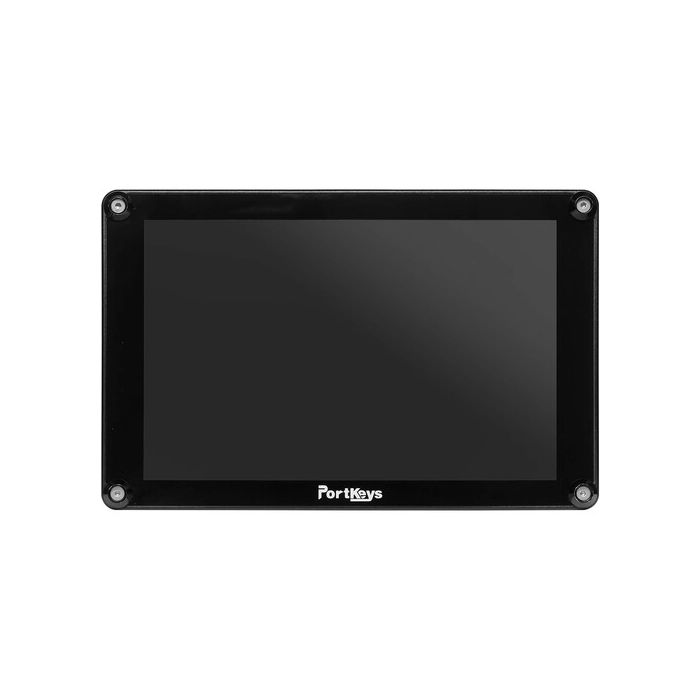

PORTKEYS HS8 8" 3G-SDI 4K HDMI/3G-SDI High-Bright Monitor with 3D LUT Support
D-Tap to DC Barrel Power Cable
Screen Cleaning Cloth
M2 Allen Key
4 x M3 Allen Screw
4 x Cup Head Gasket
Micro-USB Flash Drive

Detalji

View your video capture with 3D LUT output using the HS8 8" 3G-SDI 4K HDMI/3G-SDI High-Bright Monitor with 3D LUT Support from PORTKEYS. This monitor features support for up to DCI 4K24 video, 1920 x 1200 resolution, 10-bit color, and 3D LUT output on both the 4K HDMI and 3G/HD/SD-SDI outputs. Its 1100 cd/m² brightness is high enough for exterior viewing, and the wide viewing angles of 178° make it easy for multiple crew members to watch the footage simultaneously. The rear of the monitor sports a detachable cover for a video transmitter and dual Sony L-series/NP-F battery plates.

HDMI and 3G-SDI Input/Output

4K HDMI and 3G/HD/SD-SDI inputs, both with loop-through outputs

3D LUT Support

3D LUTs for color grading and monitoring can be applied to both the HDMI and SDI outputs

Hi-Bright Monitor

8" on-camera monitor with 1100 cd/m² brightness and 1000:1 contrast ratio

Durable Housing

Rugged, heat-dissipating CNC-machined aluminum alloy housing
Top and bottom 1/4"-20 thread mounts

Hot-Swappable Battery Plates

Hot-swappable, dual Sony L-series-type battery plates
DC input port for power supply

Optional Wireless Video Transmitter

Comes with a detachable cover for the wireless video transmitter mount

Više informacija

Display
Display Size	8.0" / 20.3 cm
Native Resolution	1920 x 1200
Aspect Ratio	16:9
Viewing Angle	Horizontal: 178°
	Vertical: 178°
Touchscreen	No
Maximum Brightness	1100 nits / cd/m2
Contrast Ratio	1000:1
Bit Depth / Color Support	8-Bit+FRC (1.07 Billion Colors)
HDR Support	Yes
Pixels Per Inch (ppi)	283 ppi
Color Gamut	100% Rec. 709
Real-Time LUT Monitoring	SDR, HDR
Image Controls	Anamorphic De-Squeeze, Blue Only, Check Field, Color Temperature Selection, Customizable Aspect Ratios, False Color, Focus Peaking, Green Only, Histogram, Image Flip, OSD Flip, Red Only, RGB Parade, Screen Markers, Vectorscope, Waveform, Zebra
Inputs / Outputs
Video I/O	1x BNC (3G-SDI) Input
	1x HDMI (Unspecified Signal) Input
	1x BNC (3G-SDI) Output
	1x HDMI (Unspecified Signal) Output
HDCP Support	Not Specified by Manufacturer
Embedded Audio	HDMI
	SDI
Audio I/O	1x 1/8" / 3.5 mm Headphone Output
Power I/O	1x Barrel (20 VDC) Input
Other I/O	1x USB-A (LUT Upload)
Media/Memory Card Slot	No
Wi-Fi	No
Bluetooth	No
Mobile App Compatible	No
Format Support
Video Format	HDMI
	DCI 4K: 60/59.94/50/30/29.97/25/24/23.98
	UHD 4K: 60/59.94/50/30/29.97/25/24/23.98
	1080p: 60/59.94/50/30/29.97/25/24/23.98
	1080PsF: 30/29.97/25/24/23.98
	1080p: 60/59.94/50/30/29.97/25/24/23.98
	1080PsF: 30/29.97/25/24/23.98
	1080i: 60/59.94/50
	720p: 60/59.94/50
	SDI (4:2:2 YUV)
	1080p: 60/59.94/50/30/29.97/25/24/23.98
	SDI (4:4:4/4:2:2/4:2:0 RGB, YUV)
	1080PsF: 30/29.97/25/24/23.98
	SDI (4:4:4/4:2:2)
	1080i: 60/59.94/50
	720p: 60/59.94/50
Video Signal Conversion	HDMI to SDI
	SDI to HDMI
Power
Input Power	7 to 20 VDC
Battery Type	2x L-Series
Power Consumption	20 W (Maximum)
Mounting
Mounting-Hole Pattern	100 x 100 mm
Mounting	2x 1/4"-20 Female
General
Material of Construction	Aluminum
Dimensions	81.9 x 52.6 x 19.9" / 208 x 133.7 x 50.5 cm
Weight	23.8 oz / 675 g
