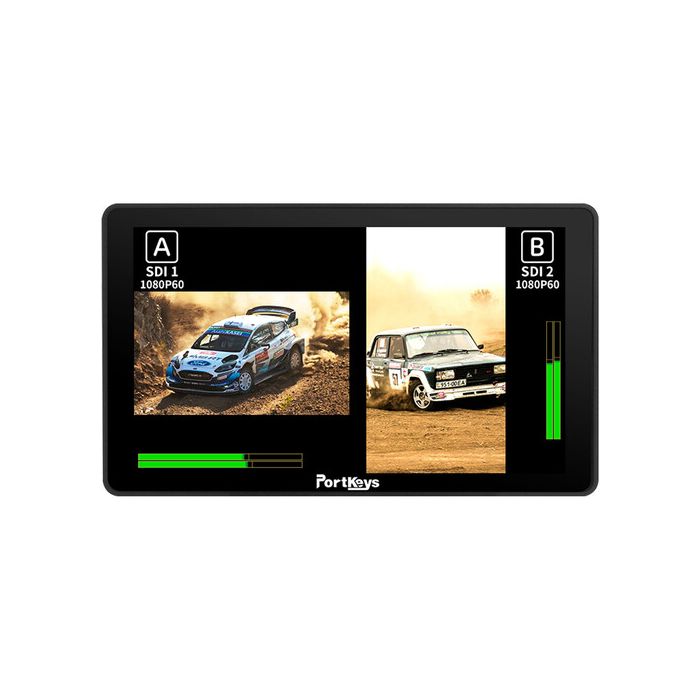

PortKeys BM7 II-DS Monitor

by PortKeys

Raspoloživost Sarajevo: Isporuka 20-30 dana

SKU

PK-BM7II-DS

7" 1920 x 1080 Touchscreen Monitor
Supports up to 1080p Video / 3D LUTs

2.098,50 KM 1.793,59 KM

Obročno plaćanje Obročno kartično plaćanje bez kamata 2-12 rata putem Visa Classic kartica u izdanju UniCredit Bank. Ostale načine plaćanje provjerite na linku: Načini plaćanja.
Brza dostava Za sve narudžbe unutar BiH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana. Više detalja provjerite na linku Načini dostave.
Kontakt Mail: info@aviteh.ba - Telefon: 033 24 67 67 - Adresa poslovnice: Malta 29, Sarajevo

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Sadržaj pakovanja

PORTKEYS BM7 II DS 7" High-Bright Monitor with Wireless Camera Control
USB Drive
DC Barrel to D-Tap Power Cable
Carrying Case

Detalji

Bright enough for outdoor use, the BM7 II DS 7" High Bright Monitor with Wireless Camera Control from PORTKEYS is a 1920 x 1080 display with support for up to 1080p resolution video. The BM7 II DS features a maximum brightness of 2200 cd/m², a contrast ratio of 1000:1, and a durable aluminum frame. The monitor's main feature is the ability to remotely control your camera via Wi-Fi, Bluetooth, or using an optional control cable, depending on your camera's model. It can also be used to control lens motors such as Tilta's Nucleus M/N.

Support for 3D LUTs enables you to view your log footage in your chosen color space or palette. This monitor incorporates one 3G-SDI input, one 3G-SDI output, one HDMI input, one HDMI output, a 3.5mm headphone audio output, and a USB-A port used to load 3D LUTs or upgrade firmware. A 170° viewing angle enables off-axis viewing without color and contrast shifts.

Integrated image display tools include a waveform, a histogram, focus peaking, false color, 3G-SDI-to-HDMI cross conversion, image flip, and selectable aspect ratios. You can power this super bright monitor via its dual Sony L-series type battery plate or from a D-Tap power source using the included DC cable. Four 1/4"-20 threads enable you to support the monitor from whichever side works best for each setup.

Key Features

High 2200 cd/m² brightness, 1000:1 contrast ratio, and 170°/170° viewing angle

7" 1920 x 1080 on-camera monitor supports up to 1080p video input/output

Remote control of the camera or focus motor via optional cable, Wi-Fi, or Bluetooth

3D LUT support via USB input

Dual L-series battery plates plus D-Tap power cable

Durable aluminum frame

Display tools include a waveform, focus peaking, false color, image flip, histogram, and 3G-SDI to HDMI cross conversion

Compatible Camera Control Models

Wi-Fi

RED V-RAPTOR, KOMODO 6K
Sony a9 II, a1, a7C, FX3, FX30, RX10, a7S III, a7 IV, RX0, a7 III

Bluetooth

Blackmagic Pocket Cinema Camera 4K
Blackmagic Pocket Cinema Camera 6K
Blackmagic Pocket Cinema Camera 6K Pro

Wired

Various camera models from Sony, Canon, RED, Panasonic, Z CAM
Tilta Nucleus-N and Nucleus-M lens motor

Više informacija

Display
Panel Type	LCD
Display Size	7.0" / 17.8 cm
Resolution	1920 x 1080
Aspect Ratio	16:09
Viewing Angle	Horizontal: 170° (85/85)
	Vertical: 170° (85/85)
Touchscreen	Yes
Maximum Brightness	2200 nits / cd/m2
Contrast Ratio
Bit Depth / Color Support	8-Bit+FRC (1.07 Billion Colors)
HDR Compatibility	Hybrid Log Gamma
Pixels Per Inch (ppi)	314 ppi
Color Gamut	85% DCI-P3
Image Controls	Anamorphic De-Squeeze, Check Field, Color Temperature Selection, False Color, Focus Peaking, Histogram, Image Flip, Vectorscope, Waveform, Zebra
Inputs / Outputs
Video I/O	2 x BNC (3G-SDI) Input
	1 x HDMI Input
	1 x BNC (3G-SDI) Output
	1 x HDMI Output
Embedded Audio	HDMI: 2-Channel
	SDI: 8-Channel
Audio I/O	1 x 1/8" / 3.5 mm Headphone Output
Built-In Speaker	None
Power I/O	1 x LEMO 2-Pin Input
	1 x Barrel 2.1 mm Input
Other I/O	1 x Mini-USB (Camera Control)
	1 x Unspecified 5-Pin (Motor Control)
	1 x USB-A (Firmware), (LUT Upload)
Media/Memory Card Slot	None
Wi-Fi	Yes
Bluetooth	Yes
Mobile App Compatible	No
	*As of May, 2023: Check with manufacturer for the most up-to-date compatibility
Format Support
Video Format	SDI (4:4:4/4:2:2 YUV)
	1080p: 30/29.97/25/24/23.98
	1080PsF: 30/29.97/25/24/23.98
	1080i: 60/59.94/50
	720p: 60/59.94/50
	SDI
	1080p: 60/59.94/50
	HDMI
	1080p: 60/59.94/50/30/29.97/25/24/23.98
	1080PsF: 30/29.97/25/24/23.98
	1080i: 60/59.94/50
	720p: 60/59.94/50
	576p: 50
	576i: 50
	480p: 60/59.94/50
	480i: 60/59.94/50
Video Signal Conversion	HDMI to SDI
Power
DC Input Power	7 to 24 VDC
Battery Type	2 x L-Series
Power Consumption	15 W (Maximum)
Mounting
Mounting	2 x 1/4"-20 Female
Environmental
Operating Temperature	32 to 104°F / 0 to 40°C
General
Material of Construction	Aluminum
Dimensions	7.1 x 4.2 x 1.2" / 179.3 x 106.8 x 31 mm
Weight	1.0 lb / 460 g
