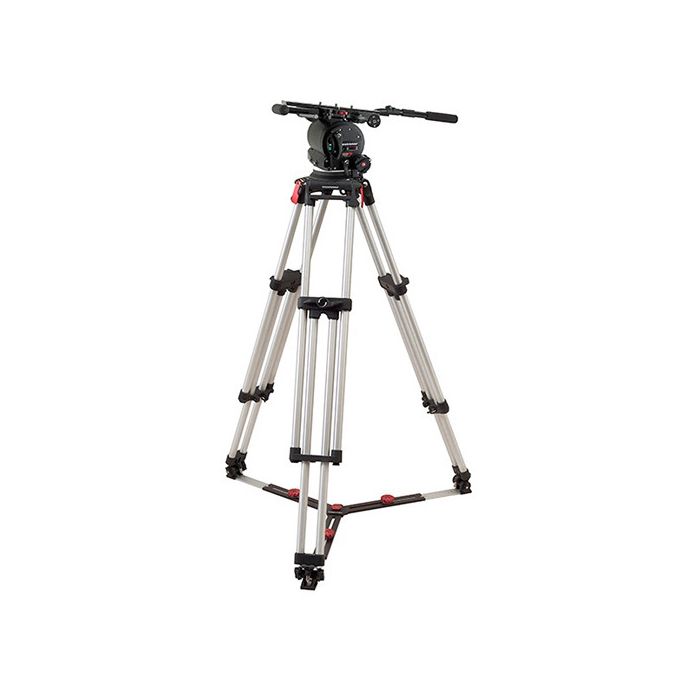

OConnor 120EX head & Cine Mitchell tripod with floor spreader

The 120EX Fluid Head & Cine HD Mitchell Top Tripod with Ground Spreader from OConnor includes the 120EX fluid head with a payload capacity of 120 lb for the ±90° tilt range. It offers a maximum payload of 240 lb at 8" center of gravity with a ± 60° tilt range. The aluminum Cine HD tripod on its own can support payloads up to 309 lb and offers height adjustment from 33.6 to 69.2". The ground-level spreader enhances the stability of the tripod with heavy loads, providing protection for delicate floor surfaces.

OConnor C12250001 120EX Standard Film Fluid Head (Black)
The OConnor 120EX Standard Assembly C12250001 is the flagship of fluid head design. With a payload capacity of 120 lbs it is the right choice for larger format film and video cameras. This device features 90 to 90 degree tilt with a folding crank handle with numerical readout for repeatable counterbalance adjustments. This head features the EX Mode which allows extended weight capacity.

Counterbalance System
The fluid head features a counterbalance system that will keep the camera from falling forward or backward when it is tilted. With the correct counterbalance, the camera will stay where you put it, throughout the entire +/-90° tilt range.

Infinitely Adjustable True Fluid Drag
Fluid drag allows you to pan and tilt smoothly, without shake or vibration. The high viscosity fluid acts as a buffer, adding an adjustable level of resistance to the camera movement.

Unmatched Versatility
The fluid head employs a modular design concept that allows you to choose different mounting bases (150mm, Mitchell, Sachtler/Vinten), quick release platforms (Oconnor, 120mm Euro, Panavision Dovetail and Arriflex Plates) and handles for added flexibility.

EX-Technology
EX fluid heads can go far beyond that maximum payload by slowly limiting tilt range as the payload is increased. With the example of the 120EX, the payload for a 90° tilt range is between 30-120 lbs (14-54 kg), but in EX mode the 120EX can counterbalance up to incredible 240 lbs (109 kg) at a tilt range of 60°; all based on a 8" center of gravity.

OConnor C12210001 Cine HD Single-Stage Aluminum Alloy Tripod (Mitchell) - Supports 309 lbs (140 kg)
It is not uncommon to encounter a barrage of exotic materials when perusing high-end support systems, but you'll find no such thing when you investigate the OConnor C12210001 Cine HD Tripod. Based on time-proven aluminum alloy metallurgy, there will be no surprises, and it requires no special accommodations. The single-stage design and die-cast spider ensure maximum rigidity for head and camera loads up to 309 lbs (140 kg), and the rotary stage clamps provide tool-free temperature-independent leg fixing. Concentrate on pressing production issues and forget about reinventing the wheel- your camera is safely suspended above the fray, and protected by the unbeatable OConnor 5-year parts and labor warranty.

• Single stage design for maximum rigidity
• Die-cast alloy spider/receiver top stage
• Rotary stage clamps are temperature-independent
• Dual leg spikes for high and low angles

OConnor C1221-00015 Ground Spreader for Cine HD Tripod
The OConnor C1221-00015 Ground Spreader is for use with the Cine HD tripod. It greatly enhances stability of the tripod with heavy loads while providing protection for delicate floor surfaces.
