Neumann AK 43

by Neumann

Raspoloživost Sarajevo: Isporuka 20-30 dana

SKU

SEN-069014

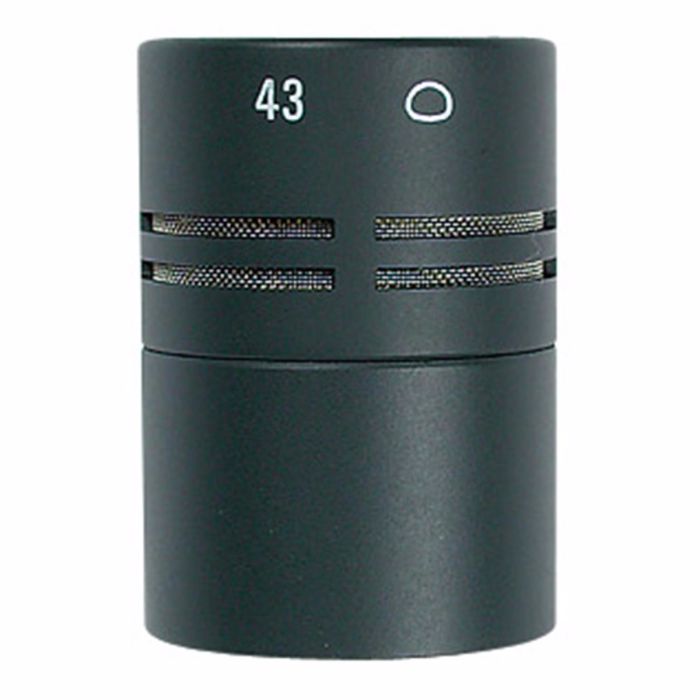

Neumann AK 43 - Wide-Angle Cardioid Miniature Capsule for KM 100 and KM 100F Power Supplies

1.719,50 KM 1.469,66 KM

Obročno plaćanje Obročno kartično plaćanje bez kamata 2-12 rata putem Visa Classic kartica u izdanju UniCredit Bank. Ostale načine plaćanje provjerite na linku: Načini plaćanja.
Brza dostava Za sve narudžbe unutar BiH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana. Više detalja provjerite na linku Načini dostave.
Kontakt Mail: info@aviteh.ba - Telefon: 033 24 67 67 - Adresa poslovnice: Malta 29, Sarajevo

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Sadržaj pakovanja

1 x Neumann AK 43

Detalji

The Neumann AK 43 microphone capsule is part of the KM 100 miniature series microphone systems. The AK 43 element features a pressure gradient, single diaphragm transducer with a wide-angle cardioid polar pattern.

Attenuation at 90 degrees is 4dB, at 135 degrees it is 8dB and at 180 degrees it is 11dB. The wide-angled cardioid pattern offers a more generous pick up area then conventional cardioid microphones, making it suitable for ambiance recording, vocal recording, stereo miking as well as close miking of instruments.

Modular Design: The capsule is developed for use with the KM100 and KM100F modular power supplies.

Wide-Angled Cardioid: The pressure gradient element provides a wide-angled cardioid pattern. Attenuation at 90 degrees is 4dB, at 135 degrees it is 8dB and at 180 degrees it is 11dB.

Više informacija

Transducer	Pressure Gradient Condenser
Polar Pattern	Wide-Angle Cardioid
Frequency Response	20 Hz - 20 kHz
Dynamic Range (Typical)	122 dB
Signal-to-Noise Ratio	69 dB Related at 1 Pa at 1 kHz (CCIR dB) 78 dB Related at 1 Pa at 1 kHz (A-Weighted dB)
Maximum Input Sound Level	138 dB Less than 0.5% THD (without Preattenuation) 148 dB Less than 0.5% THD (with Preattenuation)
Power Requirements	Phantom +48v (KM 100 Power Supply)
Output Impedance	50 Ohms
Output Connectors	XLR-3 Type (KM 100 Power Supply)
Pad	Yes, -10 dB Preattenuation
Low Frequency Roll-Off	Use KM 100F Power Supply
Dimensions (LxDiameter)	3.68 x 0.88" (92 x 22mm)
Weight	2.82 oz. (80 g)
