Nanlite PavoSlim 120B
by NanliteThe Nanlite PavoSlim 120B is an exceptionally thin and lightweight 2x1 LED panel light that provides impressive output.
- Obročno plaćanje Obročno kartično plaćanje bez kamata 2-12 rata putem Visa Classic kartica u izdanju UniCredit Bank. Ostale načine plaćanje provjerite na linku: Načini plaćanja.
- Brza dostava Za sve narudžbe unutar BiH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana. Više detalja provjerite na linku Načini dostave.
- Kontakt Mail: info@aviteh.ba - Telefon: 033 24 67 67 - Adresa poslovnice: Malta 29, Sarajevo

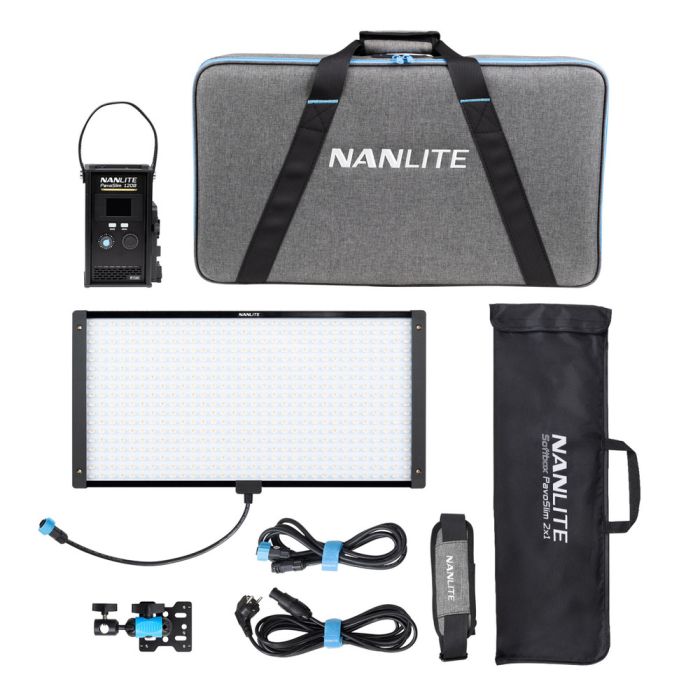

Sadržaj pakovanja
- PavoSlim 120B LED Bi-Color Panel
- Control Unit
- Swivel Holder
- DC Connection Cable 8.5' (2.6m)
- AC Power Cable 14.7' (4.5m)
- Softbox
- Softbox Bag
- 2x Diffusers (2.5 Stop Lite Diffuser, 1.5 Stop Standard Diffuser)
- Eggcrate
- Padded Carrying Bag
- User Manual
The Nanlite PavoSlim 120B is an exceptionally thin and lightweight 2x1 LED panel light that provides impressive output (17620 lux, 1637 fc @1M 5600K), 0–100% dimming, a bi-color CCT range of 2700K–6500K, power through AC or V-Mount battery, and includes a Control Unit, softbox, 2 sets of diffusion, eggcrate grid, a swivel mount, and a compact padded carrying case that safely holds everything.
- THIN, AIRY, BRIGHT & TOUGH - Exceptionally slim and lightweight yet it provides impressive an output of 17620 lux (1637 fc) @1M 5600K, and it has solid construction that was designed to last
- FAST SET UP & BREAK DOWN - Designed for speed and efficiency, PavoSlim 120B and the included softbox and grid can be set up and put away impressively quickly
- ACCURATE & EXPANDABLE - With a CRI of 95 and TLCI of 97, 3200K SSI of 82 and 5600K SSI of 73, your colors and skin tones will always be accurate. A separate accessory is available to couple two PavoSlims together to create a larger light source.
- AC OR BATTERY - Run continuously on an AC outlet and features a V-Mount battery plate for working on location
SPACE-EFFICIENT & FAST
This is a portable fixture that easily fits into tight spaces and quickly sets up and breaks down. It has durable, heat-dissipating metal construction that operates without a fan and was designed to provide years of reliable service.
THIN YET POWERFUL
PavoSlim 120B is only 0.73"" (30.6 cm) thick, yet it features an advanced optical system that's capable of outputting a sizable amount of light: 16210 lux (1506 fc) @1M 3200K, 17620 lux (1637 fc) @1M 5600K.
COMPLETE CONTROL
The Control Unit has easy-to-use buttons, knobs, and a screen. Put the panel high up on a stand while being able to access the controls and swap out batteries easily. Features a locking metal DMX/RDM port, Bluetooth for the free NANLINK app, and 2.4G for the WS-RC-C2 handheld remote or WS-TB-1 Transmitter Box (both sold separately).
VERSATILE MOUNT
The body of PavoSlim is metal with multiple 4-pin locking plates incorporated into the back. The included mount slides into the plates and locks securely. It can be swiveled and locked into the exact position you desire.
EXPANDABLE SYSTEM
Coupling accessories are available (sold separately) that let you fuse two PavoSlim panels together to create larger light sources.
SOFTBOX & CASE
The slender padded carrying case has room for all the included accessories, like the softbox, grid, 1.5 stop, and 2.5 stop diffusers (which all set up and break down remarkably quickly with hook-and-loop fasteners). The case won't weigh you down or consume unnecessary space in transit or storage.
FLICKER-FREE ACCURACY
Every Nanlite fixture delivers highly accurate performance that remains flicker-free even at incredibly high frame rates, and PavoSlim is no different. With the 120B, you can always have confidence in your colors: CRI average 95, TLCI average 97, TM-30 Rf average 95 and Rg average 102, SSI 3200K 83 and 5600K 73.
| SSI | 3200K: 82 5600K: 73 |
| CRI | Average 95 |
| TLCI | Average 97 |
| Color Temperature (Kelvin) | 2700K–6500K |
| Beam Angle Spot | 60° |
| Dimming | 0-100% |
| DMX Control | Yes |
| Compatible Wifi Adapter | Nanlink WS-TB-1 Transmitter Box |
| Compatible Remote | NANLINK APP, WS-TB-1 Box, WS-RC-C2 Handheld Remote |
| Wireless Control Type | 2.4GHz, Bluetooth, DMX/RDM |
| Frequency | 2.4Ghz |
| Operating Temperature | -20℃-45℃ |
| Cooling System | No |
| Power Source | DC 24V DC (Battery)14.4-26V AC100-240V 50/60Hz |
| Max Power Consumption | 120W |
| Battery Compatibility | V-Mount Battery |
| Charger | DC/AC Adapter |
| Battery Required | Yes |
| Lux / Foot Candles | |
| Distance and Colour Temperature | |
| @ 1m 2700K | 15480 lux / 1438 fc |
| @ 1m 3200K | 16210 lux / 1506 fc |
| @ 1m 5600K | 17620 lux / 1637 fc |
| @ 1m 6500K | 18010 lux / 1673 fc |
| @ 2m 2700K | 4212 lux / 391 fc |
| @ 2m 3200K | 4422 lux / 411 fc |
| @ 2m 5600K | 4815 lux / 447 fc |
| @ 2m 6500K | 4933 lux / 458 fc |
| @ 3m 2700K | 1945 lux / 181 fc |
| @ 3m 3200K | 2053 lux / 189 fc |
| @ 3m 5600K | 2210 lux / 205 fc |
| @ 3m 6500K | 2253 lux / 209 fc |
| Dimensions | |
| Product Height (cm) | 1.86 |
| Product Height (in) | 0.73 |
| Product Length (cm) | 60.2 |
| Product Length (in) | 24.0 |
| Product Weight (kg) | 1.65 |
| Product Weight (lb) | 3.6 |
| Product Width (cm) | 30.63 |
| Product Width (in) | 12.1 |
| Control Unit Weight (lb) | 4.06lb |
| Control Unit Weight (kg) | 1.84lb |
| Control Unit Height (in) | 7.99lb |
| Control Unit Height (cm) | 20.3lb |
| Control Unit Length (in) | 5.52lb |
| Control Unit Length (cm) | 14.03lb |
| Control Unit Width (in) | 4.39lb |
| Control Unit Width (cm) | 11.14lb |
| Special Effects | 12 BUILT-IN PRACTICAL EFFECTS: CCT LOOP/ INT LOOP/ FLASH/ PULSE/ STORM/ TV/ PAPARAZZI/ CANDLE/FIRE/ DISCO/ BAD BULB/ FIREWORK/ EXPLOSION AND WELDING |
