Manfrotto 504X & CF Fast Sing Leg Tripod
by ManfrottoThe system features the 504X fluid tripod head, the 635 FAST carbon fiber tripod, a leveling ball to adapt the head to the tripod, and a carry bag.
- Obročno plaćanje Obročno kartično plaćanje bez kamata 2-12 rata putem Visa Classic kartica u izdanju UniCredit Bank. Ostale načine plaćanje provjerite na linku: Načini plaćanja.
- Brza dostava Za sve narudžbe unutar BiH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana. Više detalja provjerite na linku Načini dostave.
- Kontakt Mail: info@aviteh.ba - Telefon: 033 24 67 67 - Adresa poslovnice: Malta 29, Sarajevo
Sadržaj pakovanja
- Manfrotto 504X Fluid Video Head with Flat Base
- Pan Handle
- 504PLONGR-1 Quick Release Plate
-
Manfrotto 635 FAST Single Leg Carbon Fiber Tripod Legs
-
3 x Rubber Boot
-
Leveling Ball
-
Carry Bag

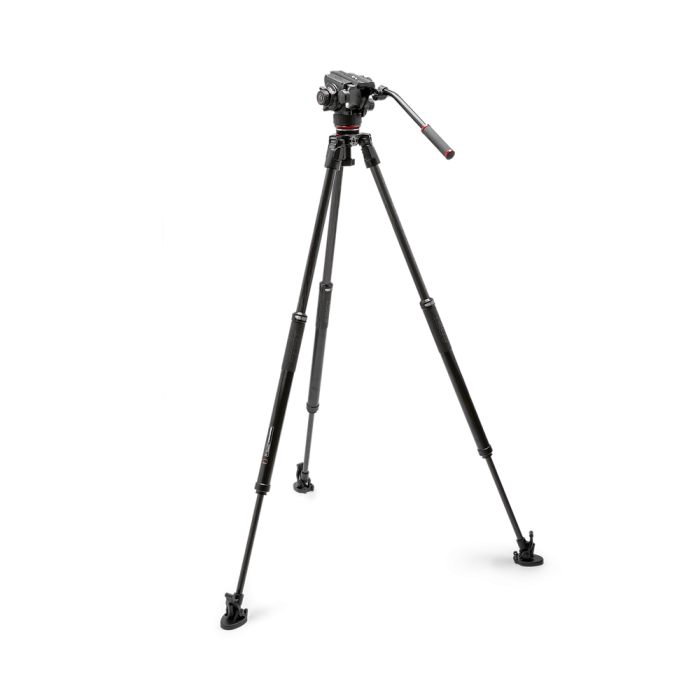

Support your camera rig with the 504X Fluid Video Head with 635 FAST Carbon Fiber Tripod from Manfrotto. The system features the 504X fluid tripod head, the 635 FAST carbon fiber tripod, a leveling ball to adapt the head to the tripod, and a carry bag.
The head features a 26.5 lb maximum load, a pan bar, a quick release plate, a counterbalance system with four presets, and its open bridge design that provides a stable, smooth performance and reduces weight. Its flat base with a 3/8"-16 female mounting thread allows compatibility with a wide range of tripods, monopods, sliders, jibs, and dollies, and a variety of rigs.
The single-tube carbon fiber tripod provides a 44 lb maximum load and a 75mm ball head mount. The 504X head mounts onto the 635 tripod using the included leveling ball. A carry bag is included to store and transport the entire system.
The 504X Fluid Video Head with Flat Base from Manfrotto features an open bridge design that provides a stable, smooth performance while reducing weight. The head's patented bridge technology allows for a wider top surface and longer sliding plate that add stability and balance. The head features a flat base with a 3/8"-16 female mounting thread that allows compatibility with a wide range of tripods, monopods, sliders, jibs, and dollies, and a variety of rigs.
With its ability to support up to 26.5 lb, the 504X can be used with a variety of video and photo cameras and rigs. The pan and tilt counterbalance system includes four presets from 0 to 4.8 to 9.7 to 14.3 lb, enabling proper balance no matter what the camera's size or weight.
At the same time, variable friction components with clearly marked degree scales and vibration-free movement bring new levels of fine-tuning to your tilts and pans. A leveling bubble keeps horizons from tilting, even in the dark, while independent disc-brake locks make sure the head stays secure when at rest.
Whether you're using a pro camcorder or an accessorized DSLR, the 504X provides a 504PLONGR-1 sliding quick release plate with 1/4"-20 and 3/8"-16 threads to balance the camera properly on your rig. The head is made from durable aluminum and includes a pan bar that can be attached via rosettes on either the right or left side to help create smooth pan-and-tilt movements.
- Fluid drag system for precise, smooth movements
- Wide top surface and long sliding plate for extra stability and balance while using video or photo equipment
- Four-step counterbalance system ensures quick setup and optimal performance
- Rigid structure for maximum precision and improved responsiveness
- Lightweight aluminum for optimum balance of strength and size
The Manfrotto 635 FAST Single Leg Carbon Fiber Tripod Legs have a 75mm bowl base and load capacity of just over 44 pounds. This tripod has a maximum height of just over 61", and with the legs spread wide a minimum operating height of 11". The three leg sections feature synchronized twist-lock leg locks, which provide for faster leg adjustments of the leg height. The bowl base has three mounting fittings compatible with both the ARRI anti-twist and Manfrotto anti-rotation systems for mounting accessories.
The legs move independently of each other and have independent height adjustments, which is useful on uneven terrain and in odd-shaped or tight spaces. The legs have integrated locking angles of 23, 50, and 70°, so you don't need to use a spreader to have a stable platform, though optional ground and mid-level spreaders are available. The legs feature integrated spiked feet, and rubber boots are included for working on delicate surfaces. The legs collapse down to about 29" in length for storage and transport, and they weigh in at under 8 pounds.
- You can adjust the leg height using a single twist lock on each leg; this makes it faster to set up and break down
- Independent leg height and angle adjustment make these legs well suited for working on uneven terrains such as rocky ground or stairs as well as in tight or odd-shaped spaces
- The spiked feet provide grip when working on soft ground, while the included rubber boots provide grip when working on hard surfaces and protect delicate surfaces from the spiked feet
- The legs can accept optional mid-level or ground spreaders
| Weight | 5.8 kg |
| Safety Payload UNI/PdR 105:2021 | 12 kg |
| Counterbalance System | Variable Steps |
| Counterbalance Weight | 2.2, 4.4, 6.5 kg |
| Maximum Height | 171 cm |
| Min Height | 44.5 cm |
| Base Diameter | 75 mm |
| Bubble Spirit Level (No.) | 1 |
| Center of gravity | 55 mm |
| Carrying Bag Included | yes |
| Center Column | no center column |
| Certifications | WEEE; RoHS |
| Closed Length | 89.5 cm |
| Color | Black |
| Top Attachment | 1/4″ screw, 3/8″ screw attachmenttype |
| Ball Flat | Flat |
| Powered by (batteries) | Lithium |
| Easy Link | Yes (with antirotation) |
| Front Tilt | -70° / +90° tiltrange |
| Head Type | Video/Fluid Head |
| Leg Type | Single |
| Leg Angles | 20°, 50°, 70° |
| Leg Lock Type | Twist Lock |
| Leg Sections | 3 |
| Legs Tube Diameter | 29.2, 24.8, 20.4 mm |
| Material | Aluminum, Carbon Fiber |
| Maximum Working Temperature | 60 °C |
| Minimum Working Temperature | -30 °C |
| Pan Bar Included | Yes |
| Pan Drag | continuously adjustable from 0 to max level |
| Panoramic Rotation | 360 ° |
| Plate Type | 504PLONGR-1 |
| Quick Release | Yes |
| Tilt Drag | continuously adjustable from 0 to max level |
