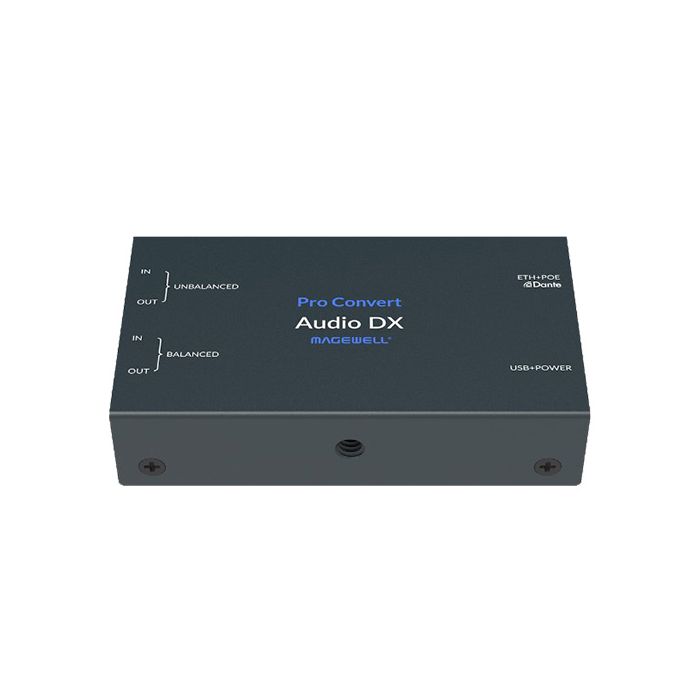

Magewell Pro Convert Audio DX

by Magewell

Raspoloživost Sarajevo: Isporuka 20-30 dana

SKU

64260

A multi-format IP audio converter and capture device.

1.124,00 KM 960,68 KM

Obročno plaćanje Obročno kartično plaćanje bez kamata 2-12 rata putem Visa Classic kartica u izdanju UniCredit Bank. Ostale načine plaćanje provjerite na linku: Načini plaćanja.
Brza dostava Za sve narudžbe unutar BiH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana. Više detalja provjerite na linku Načini dostave.
Kontakt Mail: info@aviteh.ba - Telefon: 033 24 67 67 - Adresa poslovnice: Malta 29, Sarajevo

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Sadržaj pakovanja

Magewell Pro Convert Audio DX

Detalji

Input/Receiving Features

1 x 2-channel 3.5mm unbalanced in
1 x 2-channel 4.4mm balanced in
1 x 4-channel 24-bit/48k UAC in
Receiving 8-channel 24-bit Dante® streams in unicast or multicast
Receiving 1 x 4-channel 16-bit SRT/NDI® audio stream simultaneously

Output/Sending Features

1 x 2-channel 3.5mm unbalanced out
1 x 2-channel 4.4mm balanced out
1 x 4-channel 24-bit/48k UAC out
Encoding 8-channel 24-bit Dante® streams in unicast or multicast
Encoding 1 x 4-channel 16-bit audio for RTSP/SRT/NDI® audio stream simultaneously

Audio routing and mixing Features

Any analog or IP-based input channel can be routed and mixed into any analog, IP or UAC output via a web-based user interface

Others

Support for Dante Controller, providing signal routing and configuration
Plug-and-play as a UAC device
Provide comprehensive information regarding the device and signals in real-time
Remote control via Web GUI and Magewell Cloud
Provide HTTP APIs

Više informacija

Receiving/Input Features	Support for sample rates of 96/48/88.2/44.1 KHz, and 16/24bit sample depth
	1 x 2-channel 3.5mm TRS unbalanced in (5k Ohm)
	1 x 2-channel 4.4mm TRRRS balanced in (20k Ohm)
	1 x 4-channel 24-bit/48k USB Audio Class in
	Receiving 8-channel 24-bit Dante® flows in unicast or multicast
	Receiving 2 x 4-channel 16-bit network audio streams of SRT and/or NDI® simultaneously
	Support for PTP master/slave
	Total harmonic distortion < 0.01% @ +4dBu
	Frequency Response 20Hz ~ 20kHz (-/+0.5dB)
	Signal to noise ratio > 100dB
	Dynamic range > 100dB
	Max signal level: unbalanced at 12dBu, balanced at 24dBu
Transmitting/Output Features	Support for sample rates of 96/48/88.2/44.1 KHz, and 16/24bit sample depth
	1 x 2-channel 3.5mm TRS unbalanced out (10 Ohm)
	1 x 2-channel 4.4mm TRRRS balanced out (150 Ohm)
	1 x 4-channel 24-bit/48k UAC out
	Encoding 8-channel 24-bit Dante® flows in unicast or multicast
	Encoding 2 x 4-channel 16-bit network audio streams of RTSP, SRT, NDI® protocols simultaneously
	Support for PTP master/slave
	Total harmonic distortion < 0.01% @ +4dBu
	Frequency Response 20Hz ~ 20kHz (-/+0.5dB)
	Dynamic range > 100dB
	Signal to noise ratio > 100dB
	Max signal level: unbalanced at 12dBu, balanced at 18dBu
Configuration Management	Support for Dante Domain Manager and Dante Controller, providing signal routing and configuration
	Registration with Magewell Cloud
	Remote control via WebUI and Magewell Cloud
	Provision of comprehensive information regarding the device and signals in real-time
	Configuration of how an input is processed and codec, including volume setting, audio matrix, buffer, as well as the network connection
	Support for updating firmware
	Support for USB NET
	Support for IE/Edge/Firefox/Chrome/Safari/Opera web browsers
	Provision of HTTP APIs
Interfaces	10/100/1000Mbps with PoE (IEEE 802.3af)
	USB2.0 Type B
	5V/2.1A power supply
	USB NET
	3.5mm TRS unbalanced IN/OUT
	4.4mm TRRRS balanced IN/OUT
LED Indicators	Power LED indications:
	on: power on
	off: power off
	PTP LED indications:
	on: synced
	off: not synced
	blinking: syncing
Form Factor	100.9mm (L) x 60.2mm (W)x 23.3mm (H)
Accessories	4.4mm to Dual XLR Male Cable
	4.4mm to Dual XLR Female Cable
	USB 2.0 cable (Type A to Type B)
	Universal power adapter
	L bracket
On-board Control Buttons	16 Position Rotary DIP Switch: set board-index from 0 to F
Screw Mounting Hole	¼–20 threaded hole
Power Consumption	5V max current: ~ 1 A
	Max power consumption: ~ 5 W
Working Environment	Operating temperature: 0 to 40 deg C
	Storage temperature: –20 to 70 deg C
	Relative humidity: 5% to 90% non-condensing
