Magewell Pro capture mini HDMI card

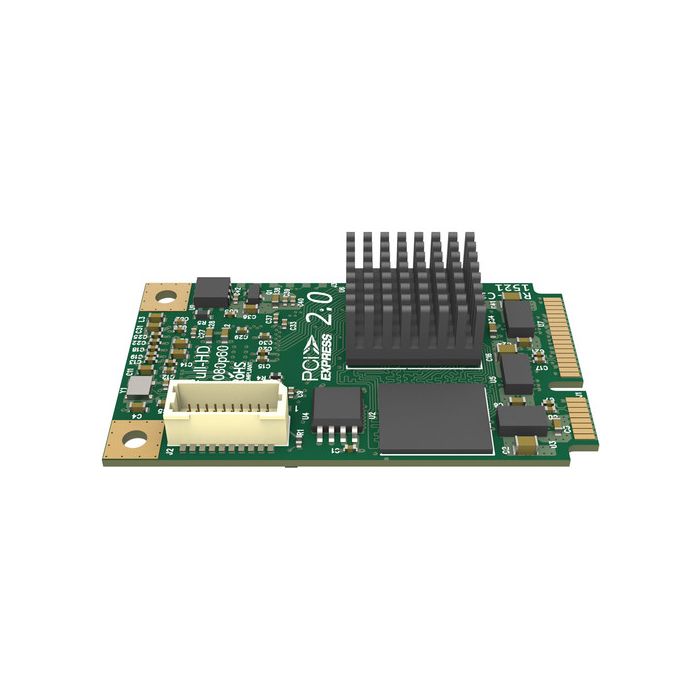

by MagewellThe Magewell Pro Capture Mini HDMI with Small Heat Sink is a mini PCIe capture card offering a single HDMI input for Windows and Linux computers. It supports the HDMI 1.4 standard and up to 1080p60 resolution and embedded audio. Instead of an integrated HDMI input, the card flexibly features a JST 20-pin input interface and includes an HDMI adapter that connects into the interface.
- Obročno plaćanje Obročno kartično plaćanje bez kamata 2-12 rata putem Visa Classic kartica u izdanju UniCredit Bank. Ostale načine plaćanje provjerite na linku: Načini plaćanja.
- Brza dostava Za sve narudžbe unutar BiH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana. Više detalja provjerite na linku Načini dostave.
- Kontakt Mail: info@aviteh.ba - Telefon: 033 24 67 67 - Adresa poslovnice: Malta 29, Sarajevo
Sadržaj pakovanja
- Magewell Pro Capture Mini HDMI with Small Heat Sink
- HDMI Adapter
- Limited 2-Year Warranty
The Magewell Pro Capture Mini HDMI with Small Heat Sink is a mini PCIe capture card offering a single HDMI input for Windows and Linux computers. It supports the HDMI 1.4 standard and up to 1080p60 resolution and embedded audio. Instead of an integrated HDMI input, the card flexibly features a JST 20-pin input interface and includes an HDMI adapter that connects into the interface.
HDMI Features
- Customized EDID
- Extraction of AVI/Audio/SPD/MS/VS/ACP/IRSC1/ISRC2/Gamut InfoFrames
- Full colorimetry
- 8/10/12-bit color depths
- RGB 4:4:4, YCbCr 4:4:4, and YCbCr 4:2:2 color sampling
- Up to 8-channel IEC60958/IEC61937 audio streams
- Extraction of audio formation information and channel status data
- Extraction of video timing information
- Extraction of 3D format information
- Extraction of Sony/Canon DSLR time code
Display Format Support
- 4:2:0 8-bit : NV12, I420, YV12
- 4:2:2 8-bit : YUY2, YUYV, UYVY
- 4:4:4 8-bit : V308, IYU2, V408, BGR24, BGR32
- 4:4:4 10-bit : V410, Y410
- More display formats are supported via Pro Capture SDK for DirectKS
Video Processing Features
- Two video processing pipelines with ~180 megapixels processing bandwidth for each one
- Full 10-bit video processing
- Cropping
- Scaling
- De-interlacing
- Frame rate conversion
- Aspect ratio conversion
- Color format conversion
- OSD composition
Video De-Interlacing
- Weave
- Blend top and bottom field
- Top field only
- Bottom field only
Video Color Format Conversion
- Auto or manual selection of input color format and quantization range
- Auto or manual selection of display color format, quantization range, and saturation range
- RGB, YCbCr 601, YCbCr 709, and YCbCr 2020 color formats
- Limited or Full quantization range
- Limited, Full, and Extended Gamut saturation range
Firmware Upgrades
- Multiple cards in one system can be upgraded simultaneously
- Cards can be upgraded without a system power shutdown when they're not in use
Other
- Unlimited display streams for any one input channel
- Independent cropping, aspect ratio, color format, resolution, frame rate, de-interlacing, and color adjustment settings for each individual stream
