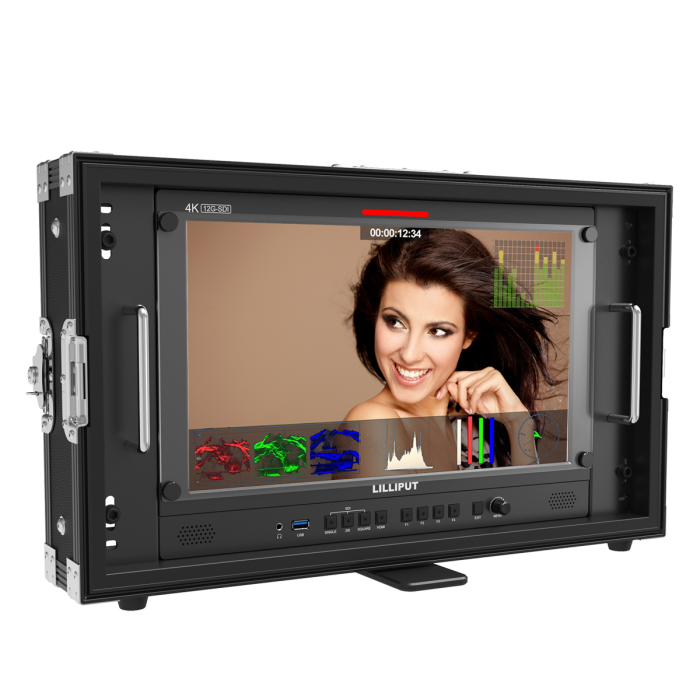

Lilliput Q17 17" Monitor with Hardcase

by Lilliput

Raspoloživost Sarajevo: Isporuka 7-10 dana

Raspoloživost Zagreb: Dostupno

SKU

LIL-Q17HC

The Q17 17.3" 12G-SDI/HDMI HDR Monitor from Lilliput is a 1920 x 1080 resolution production monitor that supports up to UHD 4K input and loop output.

Akcija traje do 7. 12. 2025. ili do isteka zaliha!

Normalna cijena 3.148,00 KM Posebna cijena 2.518,40 KM 2.152,48 KM

Obročno plaćanje Obročno kartično plaćanje bez kamata 2-12 rata putem Visa Classic kartica u izdanju UniCredit Bank. Ostale načine plaćanje provjerite na linku: Načini plaćanja.
Brza dostava Za sve narudžbe unutar BiH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana. Više detalja provjerite na linku Načini dostave.
Kontakt Mail: info@aviteh.ba - Telefon: 033 24 67 67 - Adresa poslovnice: Malta 29, Sarajevo

-20%

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Sadržaj pakovanja

Lilliput Q17 17.3" 12G-SDI/HDMI HDR Monitor (Gold Mount)
15 VDC Power Adapter with AC cord
VESA Mount Plate
Gold Mount Battery Plate
Carrying Case
2 x Base Bracket
Tilt Bracket
USB Flash Drive
Acrylic Screen Protector

Detalji

Its display provides 1200:1 contrast, 300 cd/m2 brightness, and a wide 170 x 170° viewing angle. The integrated battery plate enables you to use longer-lasting Gold mount batteries when not working near an AC power source. The Q17 monitor features one HDMI 2.0, two 12G-SDI, and two 3G-SDI inputs and loop-through outputs. It also features 12G-SDI single-link, dual-link, and 3G-SDI quad-link options plus an expansion slot for an optional 12G SPF+ module.

Pro features that help you obtain optimal images include HDR and 3D LUT support, adjustable gamma, LAN and RS-422 remote control options, and an audio vector and level monitoring. Monitor display functions include a 16:9 aspect ratio, quad-view, false color, focus peaking, check field, image flip, image freeze, selectable markers, and color temperature functions. The Q17 monitor comes with multiple mounting options, a USB drive, an acrylic screen protector, and a carrying case.

Versatile Inputs/Loop Outputs:

12G-SDI single/dual/quad link
3G-SDI
HDMI 2.0
Color Calibration
Color Spaces
SMPTE C
Rec. 709
EBU
Color Temperature
3200/5500/6500/7500/9300K
Customizable settings
Gamma Options
Gamma can be adjusted between 1.8 to 2.8 for better detail in dark areas
Remote Control
LAN control
RS-422 control
Lissajous audio vector
Audio levels
High Dynamic Range
Selectable HDR offers greater detail in highlights and shadows
Supports ST2084/ST2084 1000/HLG
Display Functions
Quad-view
False color
Focus peaking
Check field
Image flip
Image freeze
Selectable markers
Color temperature selection
Versatile Mounting
Tabletop base
Tilting bracket
Carrying case
Rack-mountable

Više informacija

Display

Panel Type	IPS-Type LCD
Display Size	17.3" / 43.9 cm
Aspect Ratio	16:9
Viewing Angle	Horizontal: 170° Vertical: 170°
Touchscreen	No
Maximum Brightness	300 cd/m2
Contrast Ratio	1200:1
Pixels Per Inch (ppi)	127 ppi
Color Gamut	100% Rec. 709 100% SMPTE-C 100% EBU
Real-Time LUT Monitoring	SDR, HDR
Image Controls	Anamorphic De-Squeeze, Blue Only, Check Field, Color Temperature Selection, False Color, Focus Peaking, Histogram, Image Flip, Pixel-to-Pixel Zoom, RGB Parade, Screen Markers, Vectorscope, Waveform, Zebra
Wi-Fi	None

I/O

Video	2 x BNC (12G-SDI) Input 2 x BNC (3G-SDI) Input 1 x HDMI Type A (HDMI 2.0) Input 2 x BNC (12G-SDI) Loop Output 2 x BNC (3G-SDI) Loop Output 1 x HDMI Type A (HDMI 2.0) Loop Output
Embedded Audio	SDI: 16-Channel HDMI: 8-Channel
Audio	1 x 1/8" / 3.5 mm Headphone Output
Built-In Speaker	2
Power	1 x 4-Pin XLR (15 VDC) Input
Other I/O	1 x GPI (RJ45) Input 1 x LAN () Input 1 x RS-422 (RJ45) Input 1 x RS-422 (RJ45) Output
Expansion Slots	1 x SFP+ Slot
Card Slot	None

Format Support

Video Format	SDI UHD 4K: 60/50/30/25/24 1080p: 60/50/30/25/24 1080PsF: 30/25/24 1080i: 60/50 720p: 60/50 HDMI UHD 4K: 60/50/30/25/24 1080p: 60/50/30/25/24 1080i: 60/50 720p: 60/50
Gamma Curve	HDR-HLG, Sony S-Log, Sony S-Log 2, Sony S-Log 3
