Lilliput K2 Controller

by Lilliput

Raspoloživost Sarajevo: Isporuka 20-30 dana

SKU

LIL-K2

The Lilliput K2 Touchscreen PTZ Camera Controller is the late 2024 revision of Lilliput's multi-featured PTZ Controller line, Designed to work with a host of control schemas and protocols, the new controls and features which the K2 system sports are numerous.

1.315,50 KM 1.124,36 KM

Obročno plaćanje Obročno kartično plaćanje bez kamata 2-12 rata putem Visa Classic kartica u izdanju UniCredit Bank. Ostale načine plaćanje provjerite na linku: Načini plaćanja.
Brza dostava Za sve narudžbe unutar BiH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana. Više detalja provjerite na linku Načini dostave.
Kontakt Mail: info@aviteh.ba - Telefon: 033 24 67 67 - Adresa poslovnice: Malta 29, Sarajevo

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Sadržaj pakovanja

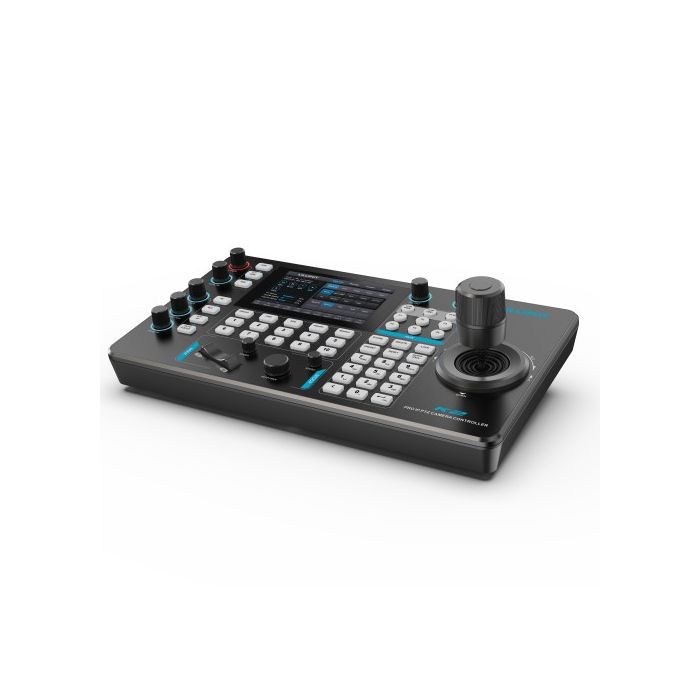

Lilliput K2 Touchscreen PTZ Camera Controller

Detalji

5-inch touch screen controls, and a 4D joystick make the K2 easy to operate
Supports real-time preview camera in 5″ screen
Supports Visca, Visca Over IP, Pelco P&D and Onvif protocols
Control the system via IP, RS-422, RS-485 and RS-232 interface
Automatically assigns IP addresses to devices for quick setup
Manage up to 100x independent IP cameras on a single network
6 user-assignable buttons for quick access to functions
Quickly control exposure, iris, focus, pan, tilt and other functions
Can support PoE (Power over Ethernet) and 12V DC Power Supply inputs
Optional NDI version available

Više informacija

MODEL NO.	K2
CONNECTIONS
Interfaces	IP(RJ45)×1, RS-232×1, RS-485/RS-422×4, TALLY×1, USB-C (For upgrade)
Control Protocol	ONVIF, VISCA- IP
Serial Protocol	PELCO-D, PELCO-P, VISCA
Serial Baud Rate	2400, 4800, 9600, 19200, 38400, 115200 bps
LAN port standard	100M×1 (PoE/PoE+: IEEE802.3 af/at)
USER
Display	5 Inch Touch Screen
Knob	Quickly control iris, shutter speed, gain, auto exposure, white balance, etc.
INTERFACES
Joystick	Pan/Tilt/Zoom
Camera Group	10 (Each group connect up to 10 cameras)
Camera Address	Up to 100
Camera Preset	Up to 255
POWER
Power	PoE+ / DC 7~24V
Power Consumption	PoE+: < 8W, DC: < 8W
ENVIRONMENT
Working Temperature	-20°C~60°C
Storage Temperature	-20°C~70°C
DIMENSION
Dimension(LWD)	340×195×49.5mm340×195×110.2mm (With joystick)
Weight	Net: 1730g, Gross:2360g
