Laowa Sword 15mm T4.1 1X Macro Cine Lens (Cine) Arri PL

by Laowa
Raspoloživost Sarajevo: Isporuka 20-30 dana
SKU
VESW1541PL

Full Frame | T4.1 to T32
14-Blade Iris, 110° Field of View

3.871,50 KM 3.308,97 KM

Sadržaj pakovanja

  • Venus Optics Laowa Sword 15mm T4.1 1x Macro Cine Lens (ARRI PL)
  • Front Lens Cap
  • Rear Lens Cap

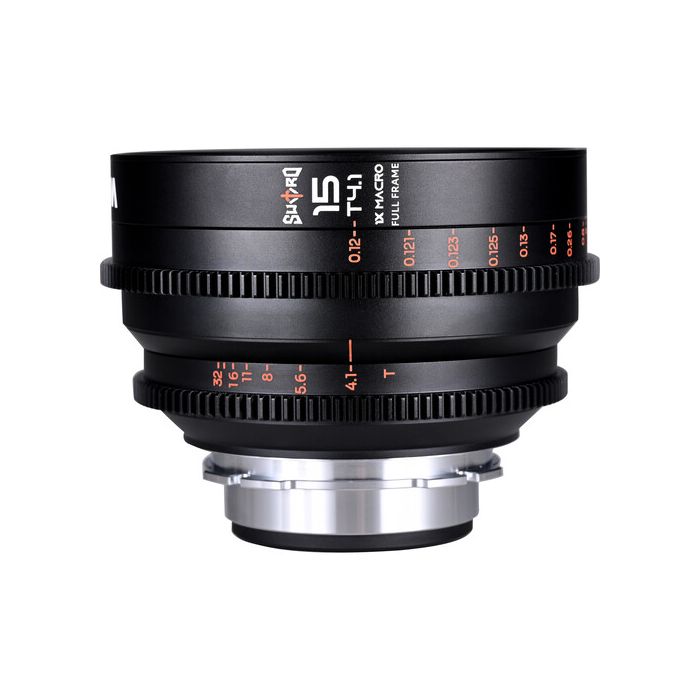

Designed for full-frame camera sensors, the Laowa Sword 15mm T4.1 1x Macro Cine Lens from Venus Optics captures ultra-sharp macro footage with compatible ARRI PL cameras. The 15mm lens features a T4.1 to T32 aperture range and is constructed of 12 elements in 9 groups. Create a shallow depth of field and dreamy bokeh with the 14-blade iris. This focal length has a 1x magnification ratio and a 4.7" minimum focus distance for detailed close-ups.

The Sword series is engineered with improved chromatic aberration control to prevent color fringing while maintaining sharp and vibrant images. The focus ring rotates 84° and the iris ring 37° for intuitive manual adjustments. A 110° angle of view ensures your subject remains in the frame. The 15mm version has a 100mm outer diameter and 95mm filter thread for use with compatible matte boxes and filters. Cine-standard gearing on the lens and separately available interchangeable mounts provide wide compatibility with cameras and accessories.

Features at a Glance

  • T4.1 to T32 aperture range
  • 14-blade iris, optical construction of 12 elements in 9 groups
  • 100mm outer diameter, 95mm filter thread
  • 0.03" minimum focus distance
  • 84° focus and 37° iris rotation
  • 43.2mm image circle, 110° angle of view
Focal Length 15mm
Maximum Aperture T4.1
Lens Mount ARRI PL
Lens Format Coverage Full Frame
Filter Thread 95 mm
Image Stabilization No
Electronic Communication No
Maximum Aperture T4.1
Minimum Aperture T32
Lens Mount ARRI PL
Interchangeable Mount Yes
Lens Format Coverage Full Frame
Image Circle 43.2 mm
Angle of View Full Frame
  Horizontal: 100°
Focus Scales Metric, Imperial
Optical Design
12 Elements in 9 Groups
Filter Thread 95 mm
Minimum Focus Distance
From Unspecified Point in Lens: 4.7" / 12 cm
Maximum Magnification Ratio 01:01
Diaphragm Blades 14
Image Stabilization No
Gear Standard 0.8 MOD
Gear Rotation Focus: 84°
  Iris: 37°
Electronic Communication No
Coating No
Environmental Resistance No
Diameter Front: 3.9" / 100 mm
Length 2.65" / 67.27 mm
Weight 22.6 oz / 640 g
Packaging Info
Package Weight 2.9 lb
Box Dimensions (LxWxH) 7.8 x 6.2 x 5.3"
