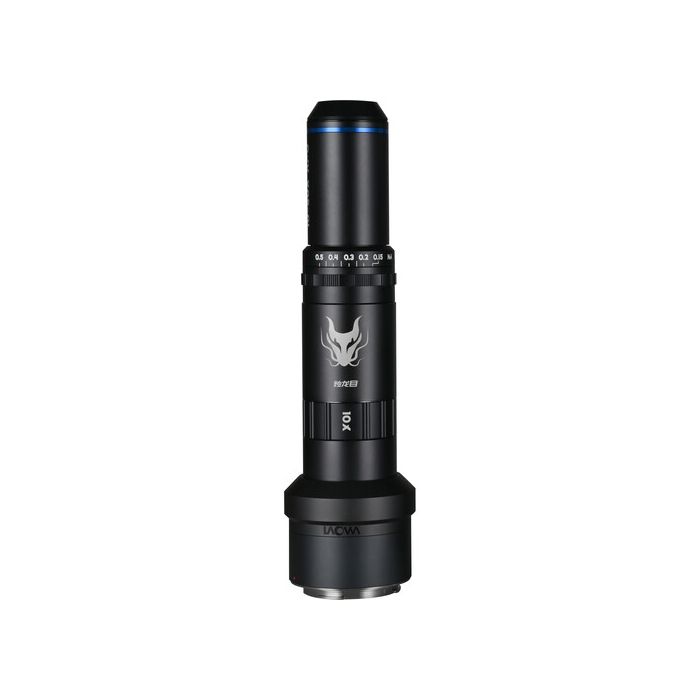

Laowa Aurogon FF 10-50x NA0.5 supermicro APO Fuji GFX
by LaowaThe Laowa Aurogon FF 10-50x NA0.5 Supermicro APO for FUJIFILM G from Venus Optics is a microphotography lens system that can be directly used on cameras without the need to use microscope adapters. It features four seamlessly interchangeable magnification tubes, offering 10x, 20x, 35x, and 50x magnification options.
- Obročno plaćanje Obročno kartično plaćanje bez kamata 2-12 rata putem Visa Classic kartica u izdanju UniCredit Bank. Ostale načine plaćanje provjerite na linku: Načini plaćanja.
- Brza dostava Za sve narudžbe unutar BiH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana. Više detalja provjerite na linku Načini dostave.
- Kontakt Mail: info@aviteh.ba - Telefon: 033 24 67 67 - Adresa poslovnice: Malta 29, Sarajevo
Sadržaj pakovanja
- Venus Optics Laowa Aurogon FF 10-50x NA0.5 Supermicro APO Lens (FUJIFILM GFX)
- Objective Lens
- 10x Magnification Tube
- 20x Magnification Tube
- 35x Magnification Tube
- 50x Magnification Tube
- Aluminum Carrying Case
The adjustable numerical aperture (NA) of this microscope lens ranges from 0.5 to 0.1, the high NA providing room for exceptional brightness and minimal diffraction. The lens is designed with a fixed 0.79" long working distance, ensuring both flexibility and convenience for the lighting setup, and you can easily change magnification without having to reset focus and lighting for stable microscopic shooting setups.
The apochromatic lens design minimizes chromatic aberrations in all magnification ratio for outstanding resolution.
The eight grades of Numerical Aperture (NA) values from /0.5 to /0.15 indicated on the objective lens addresses the depth of field for microscopic shooting.
The wide NA provided combined with ample lighting ensures that when capturing images, a lower ISO value can be used, resulting in a higher resolution image.
The Laowa Aurogon is suitable for use in both still and video applications.
| Focal Length | 5.56 to 18.5mm |
| Maximum Aperture | f/0.5 |
| Minimum Aperture | f/0.15 |
| Lens Mount | FUJIFILM G |
| Minimum Focus Distance | 0.8" / 20 mm |
| Maximum Magnification | 10 to 50x |
| Diaphragm Blades | 9 |
| Focus Type | Manual Focus |
| Image Stabilization | No |
| Filter Size | No |
|
Objective Lens plus Magnification |
|
|
10x: |
18.8mm |
| 20x: | 10.3mm |
| 35x: | 6.85mm |
| 50x: | 5.56mm |
|
Maximum Distortion |
|
|
10x: |
0.60% |
| 20x: | 0.80% |
| 35x: | 0.40% |
| 50x: | 0.40% |
|
Image Field Diameter |
|
|
10x: |
Column 2 Value 15 |
| 20x: | Column 3 Value 15 |
| 35x: | Column 4 Value 15 |
| 50x: | Column 5 Value 15 |
|
Conjugate Distance |
|
|
10x: |
29,9cm |
| 20x: | 37,1cm |
| 35x: | 41.9cm |
| 50x: | 46,5cm |
|
Component Lengths |
|
|
Objective Lens Only: |
16,7cm |
| 10x Magnification Tube: | 11,2cm |
| 20x Magnification Tube: | 16,2cm |
| 35x Magnification Tube: | 21.1cm |
| 50x Magnification Tube: | 25,1cm |
|
Component Weights |
|
|
Objective Lens Only: |
391g |
| 10x tube: | 377g |
| 20x tube: | 445g |
| 35x tube: | 531g |
| 50x tube: | 608g |
