Hollyland Pyro 7 Kit

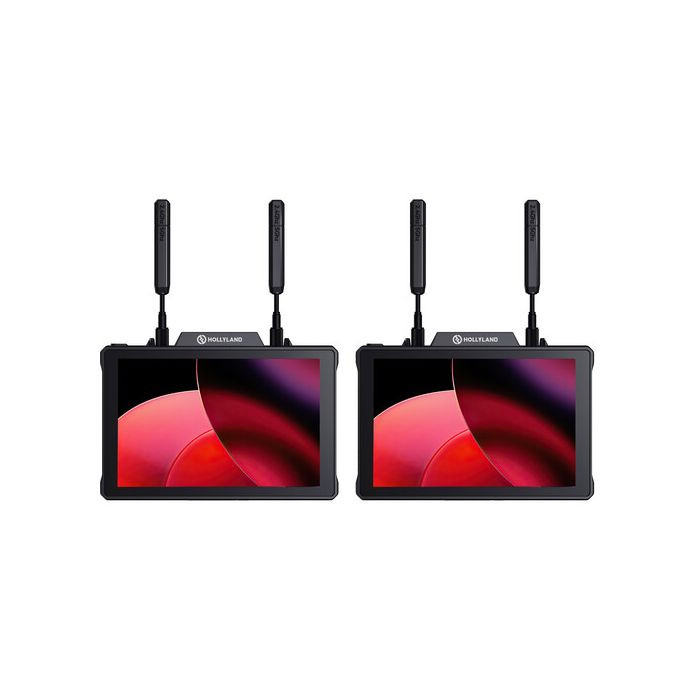

Pyro 7 is a 7-inch wireless monitor that integrates the functionalities of TX, RX, and monitor, all in one. It utilizes Auto Dual-Band Hopping (ADH) technology. With 1,300ft (400m) and an incredibly low latency of only 60ms, Pyro 7 supports 2.4GHz/5GHz dual-band transmission and automatic frequency hopping. Its exceptional hardware design enables Pyro 7 to simultaneously connect one transmitter to four receivers, and the convenience of dual-camera monitoring is achieved through customizable shortcut keys. Additionally, the upgraded HollyOS system provides enhanced image analysis capabilities and allows for video file export via an external SD card. Pyro 7 is compatible with Pyro H and Pyro S, which means you can easily pair Pyro 7 with either Pyro H or Pyro S. This provides you with greater flexibility and scalability to meet various monitoring needs.

Key Features

• 1TX & 4RX
  Offers more flexibility when additional monitoring needs emerge on set.
• 1300ft (400m) & 0.06s Latency
  Ultra-long range wireless transmission capability.
• 2.4 GHz & 5 GHz Dual Band
  Provides better signal transmission performance and efficiency.
• Auto Frequency Hopping
  Guarantees reliable and uninterrupted wireless video transmission.
• TX, RX, and Monitor – All in One
  One device to meet your diverse needs
• Dual-View Quick Monitoring Switch
  Conveniently switch to the desired view.
• 7-Inch & 1200 nits
  7-inch, better monitoring experience. 1200 nits, clear and visible even in outdoor or strong lighting conditions.
• Precise Image Analysis
  More precise and advanced image analysis features for you.
• SDI & HDMI Loopout
  Satisfies the diverse requirements of different user groups.
• RTMP Streaming
  Convenient for live streaming and video conferencing.

1TX & 4RX

WifiBroadcast Technology

4 Receivers. Not an Issue.

More Flexible. Meet More Monitoring Needs.

Pyro 7’s WifiBroadcast technology enables one transmitter to connect to four receivers with stable signals, offering more flexibility when additional monitoring needs emerge on set.

Broadcast Mode

Activated

When Broadcast mode is activated, the transmitter can transmit signals to a max of four receivers.

Deactivated

When Broadcast mode is deactivated, the transmitter can transmit signals to at most two receivers and two mobile devices.
*Connection to the monitoring app may affect the transmission range.

See Real-time Footage - Quick Monitoring Switch

Pyro 7 enables seamless connection with Pyro series video transmission solution after grouping preset. You can swiftly switch between dual camera views for monitoring within 1 second by utilizing two customizable buttons.

Dual Boost- Faster. Longer. Stronger.

With self-developed 2.4 GHz & 5 GHz Dual-Band technology, Pyro 7 features a stable transmission range of up to 1,300ft (400m). It achieves a minimal transmission latency of 60ms thanks to upgraded chips and optimized video encoding/decoding algorithms.

• 1,300ft (400m)
  Transmission Range
• 60ms
  Low Latency
• 2.4GHz/5GHz
  Dual-Band Technology

Dual Boosts. Less Latency and More Stability.

Compared to traditional video transmission systems whose range extends at the cost of image quality and latency, Pyro S excels with increased transmission distance while preserving video quality and minimizing latency.

• HD Mode
  Optimal for superior image quality. HD Mode guarantees clear visuals, maintaining a stable bitrate of 8-12 Mbps even at a range of 1,300ft (400m) .
• Smooth Mode
  The bitrate dynamically adjusts in this mode to achieve the lowest 60ms latency for ultra-long-distance transmission.

ADH - Auto Dual-Band Hopping

With our developed Auto Dual-Band Hopping (ADH) technology, Pyro 7 operates on both 2.4 GHz and 5 GHz dual-bands and features intelligent Auto Frequency Hopping, so it can automatically choose the clearest channel. This feature guarantees reliable and uninterrupted wireless video transmission.

Dual Band - 2.4 GHz & 5 GHz.

Pyro 7 offers a dual-band transmission solution that addresses common issues such as signal interference, low transmission efficiency, and frequency congestion. And the omnidirectional high-gain antennas will also ensure stable signals in all directions. This provides better signal transmission performance and efficiency. With Pyro 7, you won’t have to worry about video drop issues any more.

Intelligent - Auto Frequency Hopping

Pyro 7 is equipped with Auto Frequency Hopping technology, which constantly scans and monitors the strength of the signal and interference across various frequency ranges to find the best wireless channel to use, resulting in a more reliable connection.

Image Analysis

What’s New? Have a look.

Leap Forward – HollyOS Image Analysis - Precise Image Analysis, Enhanced Your Experience

Pyro 7 offers a convenient custom shortcut key feature that can be used for dual-view monitoring and can also be used to quickly launch Waveform, Recording, Focus Assist and other image analysis functions.

• Waveform
• Focus Assist
• Zebra Pattern
• False Color
• 3D LUT
• Image Overlay

More Possibilities - Expanding Functionality Enhanced Features

• SD Card
• LUTs Application
• Customized Folder

Pyro 7 supports extended mp4 video recording of up to 40 minutes in a single session using an external standard SD card, allowing for convenient on-site monitoring and increased work efficiency. Additionally, it offers the option to apply LUT during video export. Furthermore, Pyro 7 enables efficient export and organization of available videos into specific folders, catering to your needs for streamlined editing workflow.

*It also supports importing external devices or taking on-set screenshots, overlaying them with the current recording screen for scene restoration or replication purposes.
7-inch

7-inch - See Every Detail Clearly

The 7-inch screen provides a more comfortable monitoring experience. With a brightness of 1200 nits, whether indoors or outdoors, in bright sunlight or dim environments, you can adjust the screen brightness for optimal visual performance.

Seamless Connectivity- HDMI and SDI Input/Output/ Loopout

Pyro 7 is the perfect solution for professional shooting and smaller commercial projects. The transmitter features one HDMI input, one SDI input, and one HDMI loopout, while the receiver provides one SDI output, one HDMI output, and one SDI loopout.

Interference-free - Smart Channel Scan.

Upon startup, Pyro 7 automatically chooses a high-quality frequency channel, optimizing the user experience from the outset. Additionally, users can activate the smart channel scan function on the device to view real-time feedback on the frequency status, thus ensuring an uninterrupted and reliable experience.

Preset Grouping & Pairing - Easy Setup. Ready to Go.

Pyro 7 supports preset grouping and pairing, obviating the need for users to repetitively and manually set up the transmitter and receivers. Time really matters to crew members.

RTMP Streaming

Real-Time Messaging Protocol - RTMP Streaming

With the HollyView App and the power of RTMP (Real-Time Messaging Protocol), just input your wireless key and connect 4G LTE Wi-Fi Modem to easily stream video to popular live broadcasting or conferencing platforms like Zoom, YouTube Live, Twitch, TikTok Live, and others. Pyro 7 will offer you a convenient live streaming experience.

Magnesium Aluminum - Lighter, Stronger, Stiffer

The shell of Pyro 7 is made of aerospace-grade magnesium-aluminum alloy, which is more robust, rigid, 30% lighter, and better at heat dissipation than aluminum-only models.
