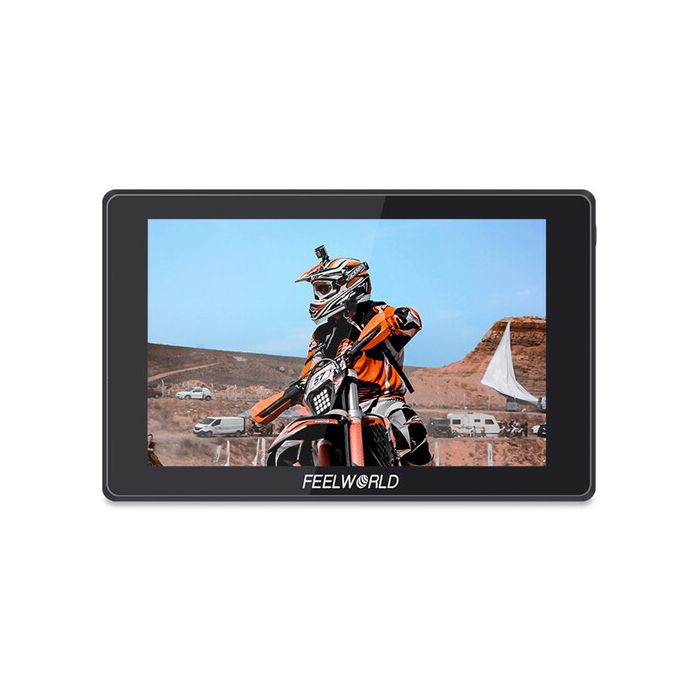

Feelworld SH7 HDMI/SDI Field Monitor
by FeelWorldAdd a versatile and ultrabright monitor to your studio or on-location production kit with the SH7 7" On-Camera Monitor from FeelWorld.
- Obročno plaćanje Obročno kartično plaćanje bez kamata 2-12 rata putem Visa Classic kartica u izdanju UniCredit Bank. Ostale načine plaćanje provjerite na linku: Načini plaćanja.
- Brza dostava Za sve narudžbe unutar BiH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana. Više detalja provjerite na linku Načini dostave.
- Kontakt Mail: info@aviteh.ba - Telefon: 033 24 67 67 - Adresa poslovnice: Malta 29, Sarajevo
Sadržaj pakovanja
- FeelWorld SH7 7" On-Camera Monitor
- Mini/Micro HDMI to HDMI Type A Cable
- Tilt Arm
- Wrench
Add a versatile and ultrabright monitor to your studio or on-location production kit with the SH7 7" On-Camera Monitor from FeelWorld. The daylight-viewable 1920 x 1200 Full HD IPS screen features a peak brightness of 2200 cd/m² and touchscreen menu operation. Easily convert an HDMI signal to SDI and vice versa via the HDMI and SDI inputs and outputs, and add a LUT to your image for real-time monitoring on the go. The monitor may be powered using an optional power supply with a barrel connector or with separately available L-series batteries for enhanced mobility.
Ideal for directors, focus pullers, and video switching operators, the SH7 is packed with useful on-set functions such as waveform, vectorscope, audio meter monitoring, horizontal and vertical image flip, center and safety markers, and full support for HDR monitoring and 3D LUTs. The unit comes with a Mini/Micro-HDMI to HDMI cable, a tilt arm, and a handy wrench.
7" Full HD IPS Touchscreen
View your images clearly and capture every detail with confidence with this high-resolution 1920 x 1200 IPS panel that supports REC709, DCI-P3, and BT2020, while showcasing rich color and meeting the different needs of photographers and videographers for an enhanced color gamut. The ultrahigh brightness makes shooting outdoors in bright sunlight a breeze.
Intuitive UI Menu and Custom Shortcut Keys
The SH7 adopts a new UI menu with iconized functions that make for more convenient and quick navigation to each separate function. Additionally, three custom shortcut buttons on the top of the screen allow you to quickly access pre-saved functions during the shooting process, greatly improving shooting efficiency.
Professional Auxiliary Tools
- Waveform
- Vectorscope
- Histogram
- Nine grid and safe frames
- Audio meter monitoring
- Focus peaking
- Check field
- Zoom
3D LUT Loop-Out
The HDMI and SDI outputs can deliver your video or still image with a 3D LUT effect. When you are live streaming, you can add a cinematic look, and when shooting on a set, you can output the image with a LUT to the director or client for real-time monitoring by connecting an optional wireless device to enhance teamwork and flexibility.
SDI and HDMI Input and Output with Cross Conversion
SDI connectivity is perfect for higher-end cinema cameras, while HDMI provides the ease to quickly connect with DSLR or mirrorless cameras. A 3.5mm headphone jack allows for real-time audio monitoring. Built-in signal cross conversion allows you to convert your HDMI signal to SDI or SDI to HDMI without the need for additional conversion devices.
DC Power Input and Output with Built-In Cooler
A 12 VDC input provides ample power when used with an optional power adapter, and an auxiliary power out provides 8 VDC for select, compatible cameras or other devices. An integrated cooling system keeps the air flowing so you can work for hours and hours without ever worrying about overheating.
The monitor is equipped with two standard 1/4"-20 mounting threads (bottom, right side) that allow you to easily mount it on the camera or other types of equipment with a magic arm, bracket, or other mounting solution.
Display | |
Panel Type | IPS-Type LCD |
Display Size | 7.0" / 17.8 cm |
Resolution | 1920 x 1200 |
Aspect Ratio | 16:10 |
Viewing Angle | Horizontal: 80° |
Vertical: 80° | |
Touchscreen | Yes |
Maximum Brightness | 2200 nits / cd/m2 |
Contrast Ratio | 1200:1 |
Dot Pitch | 0.07875 x 0.7875 mm |
Bit Depth / Color Support | 8-Bit (16.7 Million Colors) |
HDR Compatibility | Yes |
Pixels Per Inch (ppi) | 323 ppi |
Response Time | 25 ms |
Real-Time LUT Monitoring | HDR |
Image Controls | Check Field, Customizable Aspect Ratios, False Color, Focus Assist, Focus Peaking, Histogram, Image Flip, Marker Color, Pixel Zoom, Pixel-to-Pixel Zoom, Screen Markers, Vectorscope, Waveform, Zebra |
Inputs / Outputs | |
Video I/O | 1 x HDMI 1.3 Input |
1 x HDMI 1.3 Output | |
1 x BNC (3G-SDI) Input | |
1 x BNC (3G-SDI) Output | |
Embedded Audio | HDMI/SDI |
Audio I/O | 1 x 1/8" / 3.5 mm Headphone Output |
Power I/O | 1 x Barrel (24 VDC) Input |
1 x Barrel (8 VDC) Output | |
Media/Memory Card Slot | Single Slot: SD (Unspecified Type) |
Wi-Fi | None |
Bluetooth | None |
Mobile App Compatible | No |
*As of October, 2023: Check with manufacturer for the most up-to-date compatibility | |
Format Support | |
Video Format | SDI |
1080p: 60/59.94/50/30/29.97/25/24/23.98 | |
1080i: 60/59.94/50 | |
720p: 60/59.94/50/30/29.97/25/24/23.98 | |
HDMI | |
1080p: 60/59.94/50 | |
1080i: 60/59.94/50 | |
720p: 60/59.94/50/30/29.97/25/24/23.98 | |
Video Signal Conversion | HDMI to SDI |
SDI to HDMI | |
Power | |
DC Input Power | 7 to 24 VDC |
Power Consumption | 15 W |
Mounting | |
Mounting | 2 x 1/4"-20 Female |
Environmental | |
Certifications | None |
Operating Temperature | -4 to 122°F / -20 to 50°C |
Storage Temperature | -22 to 140°F / -30 to 60°C |
General | |
Dimensions | 7.4 x 4.6 x 0.9" / 186.8 x 118 x 23 mm |
Weight | 0.9 lb / 420 g |
