Feelworld F7S SDI monitor

by FeelWorld

Raspoloživost Sarajevo: Isporuka 20-30 dana

SKU

F7S

1920 x 1200 Resolution
450 cd/m² Brightness
Brightness Histogram

763,50 KM 652,56 KM

Obročno plaćanje Obročno kartično plaćanje bez kamata 2-12 rata putem Visa Classic kartica u izdanju UniCredit Bank. Ostale načine plaćanje provjerite na linku: Načini plaćanja.
Brza dostava Za sve narudžbe unutar BiH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana. Više detalja provjerite na linku Načini dostave.
Kontakt Mail: info@aviteh.ba - Telefon: 033 24 67 67 - Adresa poslovnice: Malta 29, Sarajevo

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Sadržaj pakovanja

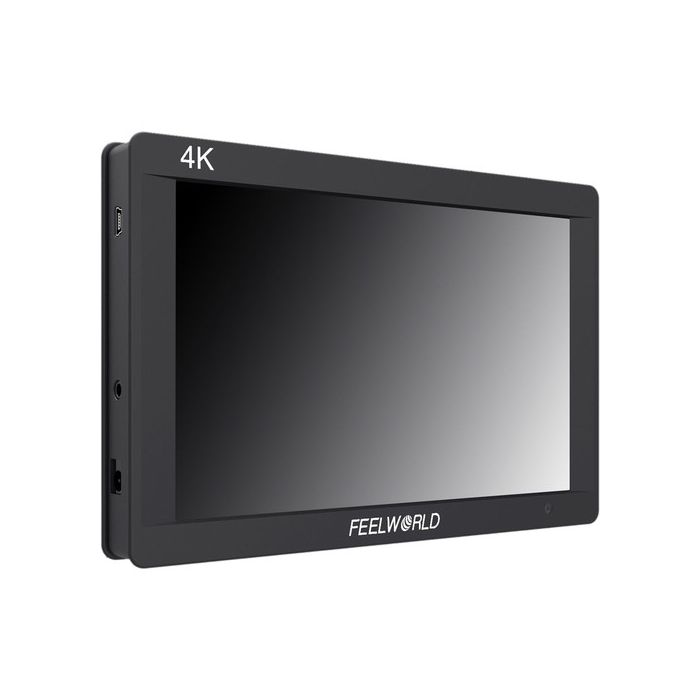

FeelWorld 7" IPS 4K On-Camera HDMI & HD-SDI Monitor
HDMI to Mini HDMI Cable
Hot Shoe Mount
L-Series Type Battery Plate

Detalji

The 7" IPS 4K On-Camera HDMI & HD-SDI Monitor from FeelWorld features a 1920 x 1200 resolution, a 1200:1 contrast ratio, and a 450 cd/m² measured brightness for easy viewing indoors. On the right edge of the monitor you'll find HDMI and HD-SDI input/output connections, and on the left edge a headphone jack. A 1/4"-20 thread for securing the monitor to the included shoe mount or to an optional articulating arm can be found at the monitor's base. The back of the monitor hosts the included L-series type battery plate, which will readily accept widely available L-series batteries. Various monitoring tools are built into the F7S including a histogram, false color, zebra stripes, peaking, and framing markers.

Key Features

Histogram
Focus assist (red, green, blue)
False colors
Zebra exposure (1-100 IRE adjustable)
Embedded audio
Camera mode
Anamorphic mode (1.3x, 2.0x, 2.0x mag)
Center marker
Safe area (80%, 85%, 90%, 93%, 96%, 2.35:1)
Ratio marker (4:3, 13:9, 14:9, 15:9, 16:9, 1.85:1, 2.35:1)
Marker color (red, green, blue, white, black)
Check field (red, green, blue, mono)
Image flip (H, V, H/V)
Image freeze
Color temperature adjustment

Više informacija

FeelWorld F7S Specs

Screen Size	7" / 18 cm IPS
Resolution	1920 x 1200
Display Colors	16.7 million colors (8-bit)
Dot Pitch	0.07875 x 0.07875 mm
Aspect Ratio	16:10
Brightness	450 cd/m²
Contrast	1200:1
Backlight	LED
Response Time	27 ms
Viewing Angle	80°/80°(L/R) 80°/80°(U/D)
Inputs	1 x HD-SDI 1 x HDMI
Outputs	1 x HD-SDI 1 x HDMI 1 x 3.5 mm stereo headphone jack
Supported Video Formats	SDI 1080p 23.98/24/25/29.97/30/50/59.94/60 1080PsF 23.98/24 1080i 50/59.94/60 720p 23.98/24/25/29/30/50/59.94/60 576i 480i HDMI (In/Out) 4096 x 2160p 24 Hz 3840 x 2160p 23.98/24/25/29.97/30 Hz 1080p 23.98/24/25/29.97/30/50/59.94/60 1080PsF 23.98/24 1080i 50/59.94/60 720p 23.98/24/25/29/30/50/59.94/60 576p/i 480p/i
Audio	Headphone jack Built-in speaker
Power Consumption	≤9 W
Input Voltage	6.5 to 24 VDC
Power Connector	DC
Battery Plate	L-series type (standard) D28S/D54, LP-E6, BP-U60 (optional)
Operating Temperature	-4 to 131°F / -20 to 55°C
Storage Temperature	-22 to 149°F / -30 to 65°C
Threaded Mounting Hole	1/4"-20 thread socket (bottom)
Dimensions	7.1 x 4.7 x 0.7" / 18 x 12 x 2 cm
Weight	15.6 oz / 445 g (without battery plate) 16.7 oz / 475 g (with battery plate)

Packaging Info

Package Weight	2.15 lb
Box Dimensions (LxWxH)	8.8 x 6.4 x 3.1"
