Feelworld F570 HDMI monitor
by FeelWorld- Full HD 1920 x 1080 Display Resolution
- 460 cd/m² Brightness
- 1400:1 Contrast Ratio
- Obročno plaćanje Obročno kartično plaćanje bez kamata 2-12 rata putem Visa Classic kartica u izdanju UniCredit Bank. Ostale načine plaćanje provjerite na linku: Načini plaćanja.
- Brza dostava Za sve narudžbe unutar BiH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana. Više detalja provjerite na linku Načini dostave.
- Kontakt Mail: info@aviteh.ba - Telefon: 033 24 67 67 - Adresa poslovnice: Malta 29, Sarajevo
Sadržaj pakovanja
- FeelWorld F570 5.7" IPS 4K HDMI On-Camera Monitor
- Mini HDMI Cable
- Sunshade
- Cold Shoe Mount
- L-Series Type Battery Plate
- 1/4"-20 Screw Lock

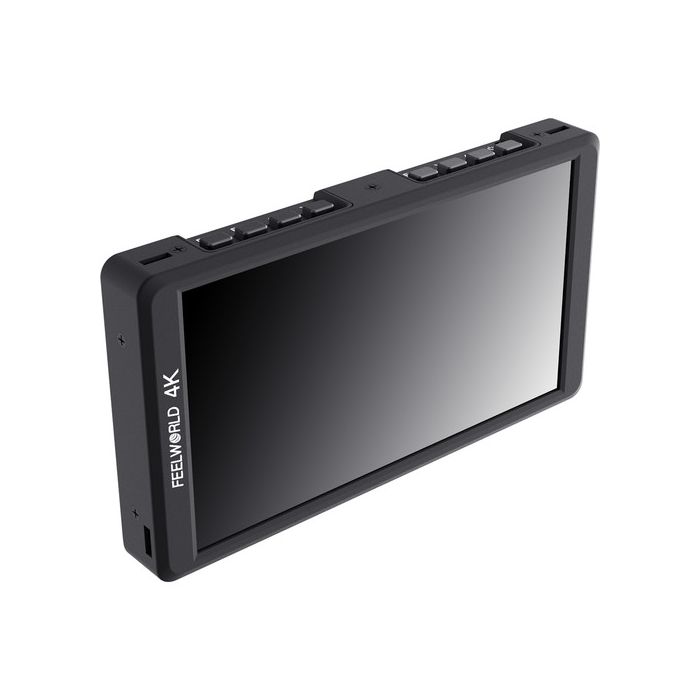

The F570 5.7" IPS 4K HDMI On-Camera Monitor from FeelWorld features a display resolution of 1920 x 1080. The IPS screen allows for off-axis viewing of 85° up/down/left/right, and it features a brightness of 460 cd/m2 with a contrast ratio of 1400:1. The monitor incorporates an HDMI input with a loop-through HDMI out. The F570 features many useful functions into its small size including peaking, zoom, anamorphic de-squeeze, frame lines, markers, and image flip. The monitor includes a Mini HDMI cable, sunshade, shoe mount, and an F970 L-Series battery plate.
Full HD 1920 x 1080 display resolution
170° wide-viewing angle IPS panel
Histogram
Peaking focus assist (red, green, blue)
False colors
Zebra exposure (1-100 IRE adjustable)
Nine-grid (4K input not supported)
Camera mode
4x, 9x, 16x zoom (4K input not supported)
Anamorphic mode (1.3x, 2.0x, 2.0x mag)
Pixel-to-pixel (4K input not supported)
Center marker
Safe area (80%, 85%, 90%, 93%, 96%, 2.35:1)
Ratio marker (4:3, 13:9, 14:9, 15:9, 16:9, 1.85:1, 2.35:1)
Marker color (red, green, blue, white, black)
Check field (red, green, blue, mono)
Image flip (H, V, H/V)
Image freeze
Zoom-all (4K input not supported)
U/D and L/R zoom (4K input not supported)
Color temperature adjustment
FeelWorld F570 Specs
|
Screen Size |
5.7" / 14.5 cm |
|
Resolution |
1920 x 1080p |
|
Pixel Pitch |
0.0657 x 0.0219 mm |
|
Aspect Ratio |
16:9 |
|
Brightness |
460 cd/m2 |
|
Contrast Ratio |
1400:1 |
|
Backlight |
LED |
|
Viewing Angle |
85°/85°(L/R) 85°/85°(U/D) |
|
Input |
1 x HDMI |
|
Output |
1 x HDMI |
|
Additional Ports |
1 x Mini-USB, for firmware updates |
|
Supported Video Formats |
4096 x 2160p 24 |
|
Input Voltage |
7 to 24 VDC |
|
Power Consumption |
≤8 W |
|
Working Temperature |
-4 to 131°F / -20 to 55°C |
|
Storage Temperature |
-22 to 149°F / -30 to 65°C |
|
Installation |
1/4"-20 thread socket |
|
Battery Plate |
F970, L-Series type |
|
Dimensions |
5.8 x 3.2 x 0.7" / 14.8 x 8.2 x 1.9 cm |
|
Weight |
10.9 oz / 310 g (with battery plate) |
Packaging Info
|
Package Weight |
1.65 lb |
|
Box Dimensions (LxWxH) |
7.3 x 4.9 x 3.2" |
