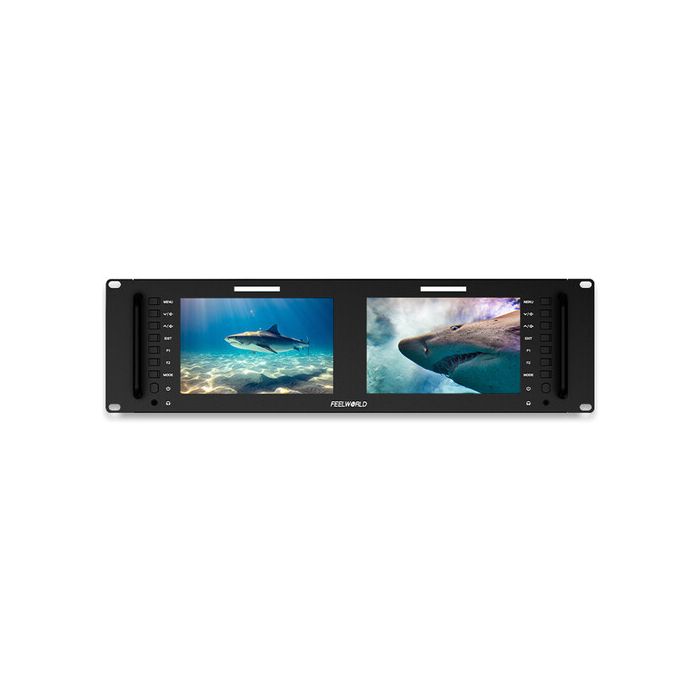

Feelworld D71PLUS-H Rack mount monitor
by FeelWorldFEELWORLD D71 PLUS-H monitors are the ideal choice for 4K HDMI monitoring anywhere you need it.
- Obročno plaćanje Obročno kartično plaćanje bez kamata 2-12 rata putem Visa Classic kartica u izdanju UniCredit Bank. Ostale načine plaćanje provjerite na linku: Načini plaćanja.
- Brza dostava Za sve narudžbe unutar BiH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana. Više detalja provjerite na linku Načini dostave.
- Kontakt Mail: info@aviteh.ba - Telefon: 033 24 67 67 - Adresa poslovnice: Malta 29, Sarajevo
Sadržaj pakovanja
- Feelworld D71PLUS-H Rack mount monitor
- 3A Power Adapter
- Tally Kit
Ideal Choice for 4K HDMI Monitoring
FEELWORLD D71 PLUS-H monitors are the ideal choice for 4K HDMI monitoring anywhere you need it. It has 2 independent 7 inch displays can be monitor two different cameras simultaneously, it easy to install in video wall or broadcast truck thanks to its 3RU form factor. You can use them for broadcast, post production, on set monitoring, flyaway kits, broadcast trucks and more.
Full HD LCD Panel
D71 PLUS-H is equipped with 2x7-inch high resolution 1920x1200 LCD panels.True color reproduction and provide excellent details.160°wide viewing angle allows you to enjoy a more perfect visual experience.
Ultra Thin Design
Ultra thin and metal housing, strong and durable. The 3RU installation size can be easy to install in TV wall or broadcast truck, etc.
Intuitive Button Operation
D71 PLUS-H has 2 exquisite front panels equipped with intuitive buttons for independent control of the screen, as well as F shortcut key, the frequently used functions are clear at a glance, making the operation quickly and easily.
Multiple Video Interfaces
D71 PLUS-H is design for broadcast work and post-production, each panel with 4K HDMI and CVBS signal inputs and outputs. Plus, it also have L/R audio.
Ethernet Remote Control
Connecting Ethernet D71 PLUS-H can remotely adjustment for the monitor via software GPIO, which makes it very easy to set up a matching monitor.
Note: the software is suitable for Windows system at present.
Flexible Power Supply
D71 PLUS-H comes with DC 12V and 4 pin XLR connector (suitable for 12V/3A power adapter), strong power for the screens.
Professional Auxiliary Tools, Inspire Your Creation
The monitor includes a plethora of useful features such as histogram, false color, focus assist, embedded audio, pixel to pixel, frame guides, nine grid etc. As well as a flexible 3D LUT implementation (use built-in LOG to Rec.709 video or upload .cube files). And both screens can be set independently!
Load Custom 3D LUTs,Preview Filming Look in Field Shooting
Supports to load 32 custom LUTs
The LUT loading function makes the color calibration easier and more intuitive, optimizes the workflow and improves the work efficiency in the early stage of shooting. You could use built-in LOG or upload .cube files. The user stores the LUT document in the root directory of the U flash drive, and imports via connecting the USB adapter cable and the USB interface of the device (up to 32 custom files can be imported), maintaining creative intent, always.
Accurate waveform monitoring
Save your budget
When you need to analyze image quality more accurately than simply looking at the picture then use D71 PLUS-H's built in waveform monitoring! Choose from waveform (RGB Parade, YUV Parade, Y Parade), vector, histogram, audio phase and level displays, and get broadcast accurate waveform monitoring that shows everything you need to know technically about your video and audio signals. The functions can be opened separately, and also support one key to open all scope mode. D71 PLUS-H becomes the ideal choice for live production monitoring, so you no longer need to use a separate expensive scopes!
3-Color Tally Indicator, Enhance Team Cooperation
There is front TALLY indicator for each screen, with 3 colors display (Red,Green,Yellow), and controlled via DB-9 ports on the rear panel. Enhance the team cooperation.
APPLICATION
Perfect Monitoring for Broadcast Organization
Use multiple D71 PLUS-H units to monitor lots of camera inputs simultaneously. The built-in Tally function can display red, green or yellow indicator, allows you always know when you are recording or on-air.
Broadcast Truck
Mobile Broadcast Monitoring Solution
In mobile broadcast truck, you need every inch of space and you need minimal heat so you need a monitoring solution that is lightweight and compact, the D71 PLUS-H is the ideal solution. Imagine having all your video sources displayed on 7 inch LCD screens so you can see camera detail and quality.
Display Spec. | |
Model | D71 PLUS-H |
Screen Size | 7"×2 IPS |
Resolution | 1920×1200 pixels |
Dot pitch | 0.07875(H)×0.07875 (W) mm |
Aspect Ratio | 16:10 |
Brightness | 450cd/m² |
Contrast Ratio | 1100:1 |
Backlight | LED |
Viewing Angle | 80°/80°(L/R) 80°/80°(U/D) |
Input (Each LCD) | |
1 X HDMI | HDMI |
1 X BNC | Video |
2 X RCA | Audio(L/R) |
Output (Each LCD) | |
1 X HDMI | HDMI |
1 X BNC | Video |
Audio (Each LCD) | |
Audio Out | Stereo Headphone × 1 |
HDMI Support Format | 480i/576i/480p/576p |
1080i (60/59.94/50) | |
720p (60/59.94/50/30/29/25/24/23.98) | |
1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF) | |
4K UHD 3840×2160p (30/29.97/25/24/23.98 Hz) | |
DCI 4K 4096×2160p (24Hz) | |
CVBS (Video) Support Format | PAL/NTSC auto recognize |
General | |
Input Voltage | DC9~24V |
Power Consumption | ≤21W |
Power Connector | DC/ 4-pin XLR |
Working Temperature | -10°C~60°C |
Storage Temperature | -30°C~70°C |
Install Way | Rack Mount |
Unit Size | 482.6Lx132Hx30.5D mm |
Unit Weight | 1890g |
