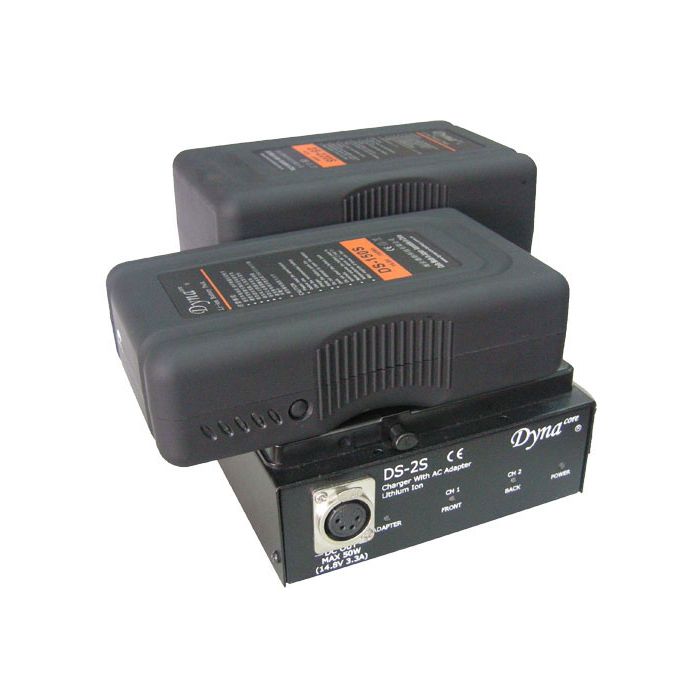

Dynacore DS-2S V-lock Charger
by Dynacore- Obročno plaćanje Obročno kartično plaćanje bez kamata 2-12 rata putem Visa Classic kartica u izdanju UniCredit Bank. Ostale načine plaćanje provjerite na linku: Načini plaćanja.
- Brza dostava Za sve narudžbe unutar BiH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana. Više detalja provjerite na linku Načini dostave.
- Kontakt Mail: info@aviteh.ba - Telefon: 033 24 67 67 - Adresa poslovnice: Malta 29, Sarajevo
Sadržaj pakovanja
- Dynacore DS-2S V-lock Charger
Function and Feature:
1. 3 channels of CH1、CH2 and DC OUT can work simultaneously.
2.The working status of 3 channles is shown clearly by indicators seperately.
a. The adaptor DC OUT indicator shows red when it woks.
b. For charger CH1 and CH2, the indicators will show red when the capacity of the battery is between 0-85%,and organge between 85%-95%, when the battery is fully charged, the indicator will turn green.
3.Inhabit IC protection system to prevent over current, over voltage (the max volatge is 16.8V) and short circuit.
4. With 0V activation function, when the charger is with empty load, there is pulse signal on CH1 and CH2 to detect battery, in case of the problem that the battery can’t be charged after protection.
1. Input Voltage：AC 100-240V
2. Output: ≤120W in total
a. CH1 output：16.8V×2A≤34W；CH2 output: 16.8V×2A≤34W；
b. DC Output：14.8V×3.3A≤50W.
3. Size：215*85*155（mm）
4. Weight：1.3Kg
