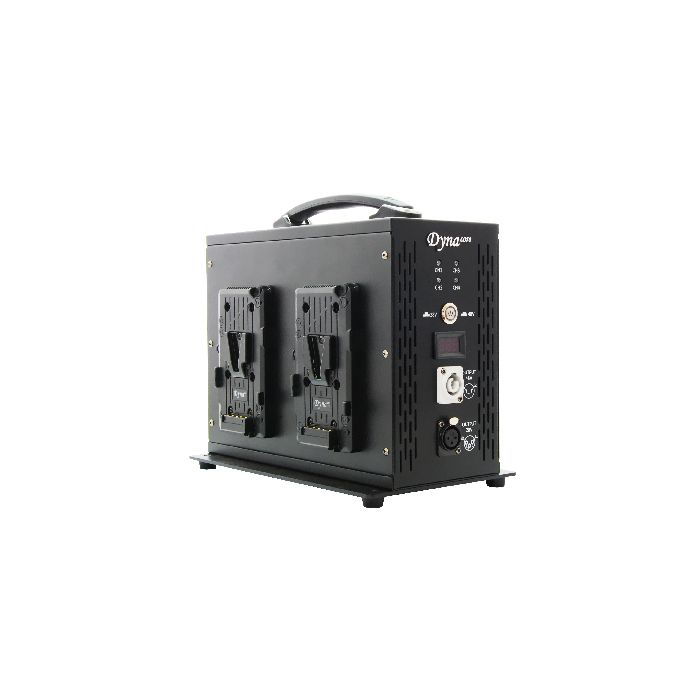

Dynacore D-4S-48V 48V adapter for skypanel S60/120

by Dynacore
Raspoloživost Sarajevo: Isporuka 20-30 dana
SKU
DY-D-4S-48V

Integration of both battery adapter and charger function in one device.

KM 1.697,50 KM 1.450,85

Sadržaj pakovanja

  • Dynacore D-4S-48V 48V

48V, 10A& 28V, 10A adapter output are available, support Max 480W.
48V,10A adapter output can meet the power requirement of ARRI Skypanel S60.

4pcs high capacity batteries are suggested to get the maximum power. Mount 4pcs Dynacore DN-310S/A, with total capacity as big as 1240Wh, it can support Skypanel S60 with 100%brightnessaround 2 hours.

28V, 10A adapter output can be used to power 28V equipment like Alexa LF, KINO lights, etc.
With charging output of 16.8V, 2.6A for each channel, 4pcs batteries can be charged simultaneously.

One Dynacore D-4S/A-48 will fulfill your needs of both DC power bank and charger. Just bring 4pcs batteries
and 1pc DynacoreD-4S/A-48, it will be enough for outdoor shooting.

D-4S-48V For V-Mount Batteries
D-4A-48V For Gold Mount Batteries

AC Input AC 90V~240V/47Hz~63Hz
Charger Output DC 16.8V/2.6A
Adapter Output  DC 28V/10A
   DC 48V/10A
Outlet 1 x NEUTRIK NAC3MPB-1 (48V)
   1 x 3-PIN Female XLR (28V)
Applicable Battery V-Mount/Gold Mount batteries
Dimension 298 x 158 x 265mm
Weight 5.70Kg
