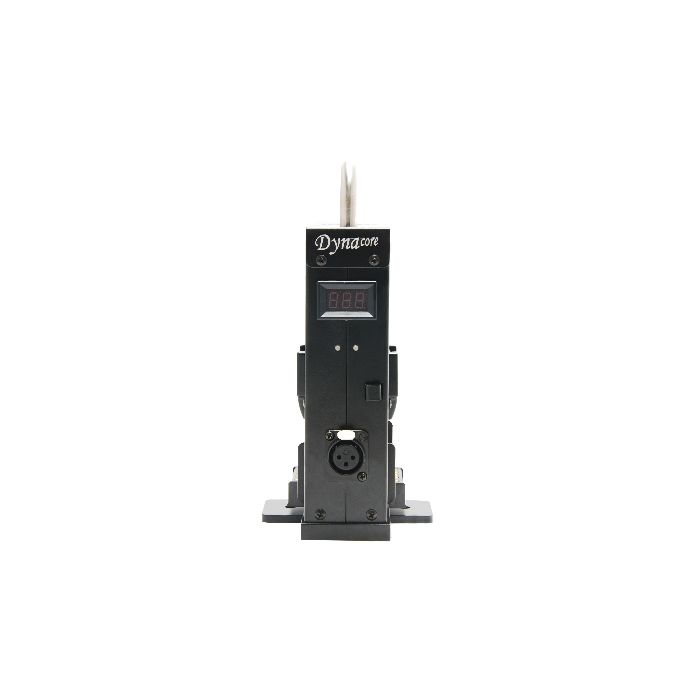

Dynacore D-2BS-24 Battery Extender
by DynacoreD-2BS/A-24 is the power station designed to integrate the power of 2pcs V-Mount and Gold Mount batteries into a power source as a 24V voltage output.
- Obročno plaćanje Obročno kartično plaćanje bez kamata 2-12 rata putem Visa Classic kartica u izdanju UniCredit Bank. Ostale načine plaćanje provjerite na linku: Načini plaćanja.
- Brza dostava Za sve narudžbe unutar BiH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana. Više detalja provjerite na linku Načini dostave.
- Kontakt Mail: info@aviteh.ba - Telefon: 033 24 67 67 - Adresa poslovnice: Malta 29, Sarajevo
Sadržaj pakovanja
- Dynacore D-2BS-24 Battery Extender
It can supply power of up to 240W output(24V, 10A).
To reach the best output performance, 2pcs batteries with the same capacity and charging status are required.
Battery models with bigger capacity are better.
LCD Display For Output Voltage
24.5V(+/-5mV on no-load,+/-1.2% on full load)
2 Channel Low Voltage Alarm Indicator LED Battery Indication
Color Red=Under/Over Voltage
Color Green=Good
Green Blinking=Battery Low
3 Pin Female XLR Output
24V, 10A, 240W(Max)
Hexagon Connector Makes It Easy To Be Connected To The Tripod With Convi Clamp.
D-2BS-24 Integrated Mount Plate Design Makes The Product Compact
D-2BS-24 For V-Mount Batteries
D-2BA-24 For Gold Mount Batteries
| DC Input | 12-17V |
| DC Output | 24.5V |
| Outlet | 1 x 3-pin Female XLR |
| DC Output Max Power | 10A,240W |
| Applicable battery | V-Mount batteries |
| Dimension | 150X73X220mm(Including Metal Cylinder) |
| Weight | 1.10Kg(Including Metal Cylinder) |
