DPA VO4099V d:vote 4099 Clip Microphone for Violin
by DPAFor Live Sound, Violin, Viola, Banjo, One-Hand Mounting, Holder Gentle on Instrument, 5.5" Adjustable Gooseneck, Microdot Connector, Detachable Cable
- Obročno plaćanje Obročno kartično plaćanje bez kamata 2-12 rata putem Visa Classic kartica u izdanju UniCredit Bank. Ostale načine plaćanje provjerite na linku: Načini plaćanja.
- Brza dostava Za sve narudžbe unutar BiH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana. Više detalja provjerite na linku Načini dostave.
- Kontakt Mail: info@aviteh.ba - Telefon: 033 24 67 67 - Adresa poslovnice: Malta 29, Sarajevo
Sadržaj pakovanja
- DPA Microphones d:vote 4099U Universal Clip Microphone
- XLR Adapter
- Belt Clip
- Clip with Hook and Loop Fastener

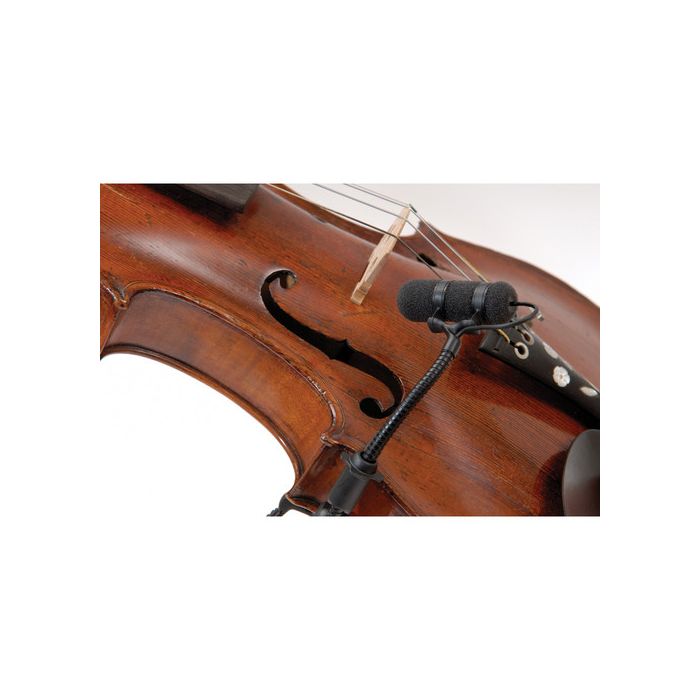

The d:vote 4099V Clip Microphone for Violin with XLR Adapter from DPA Microphones is designed to clip onto your violin, viola, banjo, or other string instrument with a body depth between 1.4 and 2.1". The clip has a holder that attaches gently to avoid damaging older and gentle instruments. It can be adjusted with one hand.
The microphone itself is a supercardioid condenser with a 5.5" adjustable gooseneck for ease in positioning. It also features a detachable cable, allowing you to attach your mic to your string instrument before connecting it. The 4099V terminates in a Microdot connector, allowing compatibility with DPA's connection adapters for use with a variety of third party wireless systems. An XLR adapter with a belt clip is included for use in a wired system with 48-volt phantom power.
| Transducer Type | Pre-Polarized Condenser |
| Polar Pattern | Supercardioid |
| Principle of Operation | Pressure Gradient |
| Frequency Range | 20 Hz to 20 kHz 80 Hz to 15 kHz with 2 dB Soft Boost @ 10 to 12 kHz, Second Order Low-Cut Filter @ 80 Hz (>+/- 2 dB, 20 cm Distance) |
| Sensitivity | 6 mV/Pa; -44.5 dB Reference: 1 V/Pa (Nominal, +/- 3 dB) |
| Equivalent Noise Level | Typ. 23 dB(A) Reference: 20 µPa (Maximum 26 dB(A)) (A-Weighted) |
| Signal to Noise Ratio | 71 dB (Reference: 1 kHz @ 1 Pa, 94 dB SPL) |
| Total Harmonic Distortion (THD) | < 1 % up to 123 dB SPL peak < 1 % up to 120 dB SPL RMS sine |
| Dynamic Range | 100 dB |
| Maximum SPL | 142 dB (Peak Before Clipping) |
| Output Impedance | MicroDot: 30 to 40 Ω, XLR: 100 Ω |
| Cable Drive Capability | XLR: 984' (300 m) |
| Output Balance Principle | Signal balanced with XLR adapter |
| CMRR | XLR Adapter: > 60 dB at 50 Hz to 15 kHz |
| Power Supply | Minimum 5 V to Maximum 50 V through DPA adapter for wireless systems 48 V phantom power ±4 V with XLR adapter |
| Current Consumption | XLR Adapter: 1.5 mA; 3.5 mA |
| Connector | Microdot XLR Adapter Included |
| Compatibility | Fits Instruments with a Body Depth Between 1.4 and 2.1" (35 and 55 mm) |
| Polarity | Positively increasing sound pressure produces positive going voltage at MicroDot pin (and pin 2 on DAD4099-BC XLR adapter) |
| Operating Temperature | -40 to 113°F (-40 to 45°C) |
| Relative Humidity | Up to 90% |
| Cable Length | 6' (1.8 m) |
| Gooseneck | Length: 5.5" (140 mm) |
| Microphone Length | 1.8" (45 mm) |
| Weight | 1.16 oz (33 g) |
| Packaging Info | |
|---|---|
| Package Weight | 1.15 lb |
| Box Dimensions (LxWxH) | 9.7 x 6.0 x 3.0" |
