DPA VO4099T d:vote 4099 Clip Microphone for Brass

by DPA

Raspoloživost Sarajevo: Isporuka 20-30 dana

SKU

DPA-VO4099T

For Trumpet, Trombone, or Other Brass, Fits Any Mute, One-Hand Mounting, 5.5" Adjustable Gooseneck, Detachable Cable
Includes XLR Adapter with Belt Clip

1.099,50 KM 939,74 KM

Obročno plaćanje Obročno kartično plaćanje bez kamata 2-12 rata putem Visa Classic kartica u izdanju UniCredit Bank. Ostale načine plaćanje provjerite na linku: Načini plaćanja.
Brza dostava Za sve narudžbe unutar BiH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana. Više detalja provjerite na linku Načini dostave.
Kontakt Mail: info@aviteh.ba - Telefon: 033 24 67 67 - Adresa poslovnice: Malta 29, Sarajevo

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Sadržaj pakovanja

DPA Microphones d:vote 4099T Clip Microphone for Brass Instruments
XLR Adapter
Belt Clip

Detalji

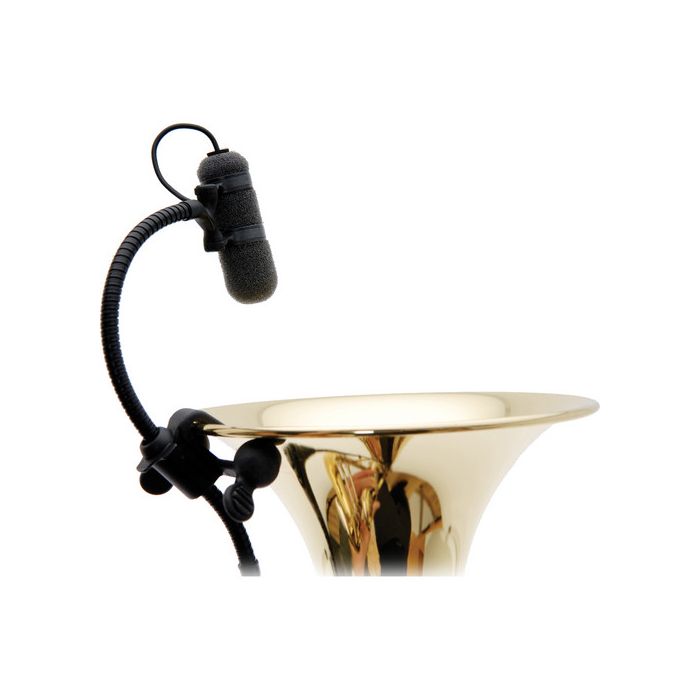

The d:vote 4099T Clip Microphone for Brass Instruments from DPA Microphones is designed for miking trumpet, trombone, or other brass instruments. It can be mounted with one hand and will work on a brass instrument with or without a mute. It has a maximum SPL rating of 152dB to handle a brass instrument's high output. The 4099T has a pre-polarized condenser capsule that is attached to a 5.5" gooseneck and provides flexibility for mic placement. It terminates in a MicroDot connector, making it compatible DPA's connection adapters for use with a variety of third-party wireless systems. An XLR adapter is included with a belt clip for use in a wired system with 48-volt phantom power.

Više informacija

Transducer Type	Pre-Polarized Condenser
Polar Pattern	Supercardioid
Principle of Operation	Pressure Gradient
Frequency Range	20 Hz to 20 kHz +/- 2 dB, 20 cm Distance: 80 Hz to 15 kHz, Second Order Low-Cut Filter @ 80 Hz with XLR Adapter
Sensitivity	2 mV/Pa; -54 dB Reference: 1 V/Pa (Nominal, +/- 3 dB)
Equivalent Noise Level	Typ. 28 dB(A) Reference: 20 µPa (Maximum 31 dB(A)) (A-Weighted)
Signal to Noise Ratio	66 dB (Reference: 1 kHz @ 1 Pa, 94 dB SPL)
Total Harmonic Distortion (THD)	< 1 % up to 123 dB SPL peak < 1 % up to 120 dB SPL RMS sine
Dynamic Range	95 dB
Maximum SPL	152 dB (Peak Before Clipping)
Output Impedance	MicroDot: 30 to 40 Ω, XLR: 100 Ω
Cable Drive Capability	XLR: 984' (300 m)
Output Balance Principle	Signal balanced with XLR adapter
CMRR	XLR Adapter: > 60 dB @ 50 Hz to 15 kHz
Power Supply	Minimum 5 V to Maximum 50 V through DPA adapter for wireless systems 48 V phantom power ±4 V with XLR adapter
Current Consumption	MicroDot: 1.5 mA XLR Adapter: 3.5 mA
Connector	MicroDot XLR Adapter Included
Polarity	Positively increasing sound pressure produces positive going voltage at MicroDot pin (and pin 2 on DAD6001 XLR adapter)
Operating Temperature	-40° to 113°F (-40° to 45°C)
Relative Humidity	Up to 90%
Cable Length	6' (1.8 m)
Gooseneck	Length: 5.5" (140 mm)
Capsule Diameter	0.2" (5.4 mm)
Microphone Length	1.8" (45 mm)
Weight	1.1 oz (31 g)

Packaging Info
Package Weight	1.1 lb
Box Dimensions (LxWxH)	9.8 x 5.6 x 2.9"
