DPA VO4099S d:vote 4099 Clip Microphone for Saxophone
by DPAFor Use with Saxophone Family, One-Hand Mounting, 5.5" Adjustable Gooseneck, MicroDot Connector, Includes XLR Adapter, Detachable Cable
- Obročno plaćanje Obročno kartično plaćanje bez kamata 2-12 rata putem Visa Classic kartica u izdanju UniCredit Bank. Ostale načine plaćanje provjerite na linku: Načini plaćanja.
- Brza dostava Za sve narudžbe unutar BiH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana. Više detalja provjerite na linku Načini dostave.
- Kontakt Mail: info@aviteh.ba - Telefon: 033 24 67 67 - Adresa poslovnice: Malta 29, Sarajevo
Sadržaj pakovanja
- DPA Microphones d:vote 4099S Clip Microphone for Saxophone
- XLR Adapter
- Belt Clip

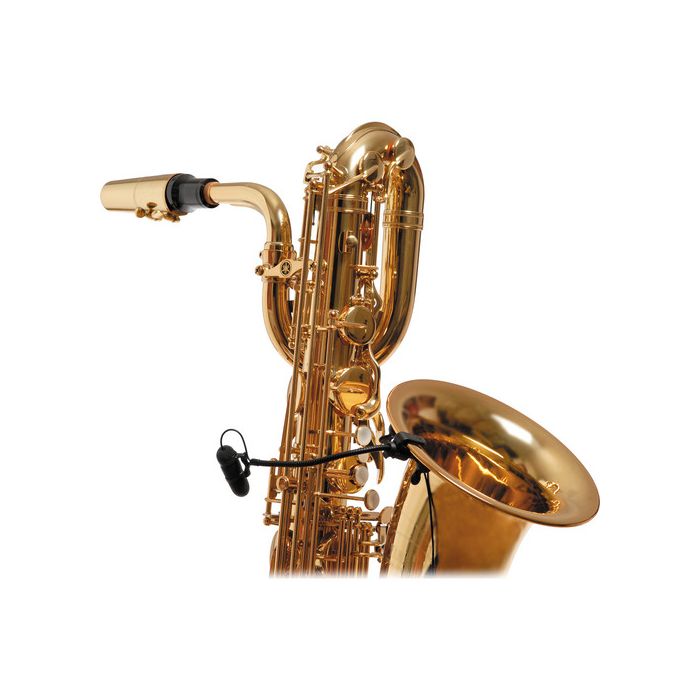

The d:vote 4099S Clip Microphone for Saxophone from DPA Microphones is designed to clip onto your saxophone for live sound and recording purposes. Its mount can be adjusted by one hand and is optimized to attach itself gently to your instrument in order to prevent damage and marks. It can be used with soprano, alto, or baritone saxes.
The 4099S has a pre-polarized condenser capsule with a supercardioid polar pattern. Its gooseneck allows for a variety of positioning possibilities. The 4099S terminates in a MicroDot connector, providing compatibility with DPA's connection adapters for use with a variety of third-party wireless systems. An XLR adapter is included with a belt clip for use in a wired system with 48-volt phantom power.
| Transducer Type | Pre-Polarized Condenser |
| Polar Pattern | Supercardioid |
| Principle of Operation | Pressure Gradient |
| Frequency Range | 20 Hz to 20 kHz +/- 2 dB, 20 cm Distance: 80 Hz to 15 kHz with 2 dB Soft Boost @ 10 to 12 kHz, Second Order Low-Cut Filter @ 80 Hz |
| Sensitivity | 6 mV/Pa; -44.5 dB Reference: 1 V/Pa (Nominal, +/- 3 dB) |
| Equivalent Noise Level | Typ. 23 dB(A) Reference: 20 µPa (Maximum 26 dB(A)) (A-Weighted) |
| Signal to Noise Ratio | 71 dB (Reference: 1 kHz @ 1 Pa, 94 dB SPL) |
| Total Harmonic Distortion (THD) | < 1 % up to 123 dB SPL peak < 1 % up to 120 dB SPL RMS sine |
| Dynamic Range | 100 dB |
| Maximum SPL | 142 dB (Peak Before Clipping) |
| Output Impedance | MicroDot: 30 to 40 Ω, XLR: 100 Ω |
| Cable Drive Capability | XLR: 984' (300 m) |
| Output Balance Principle | Signal balanced with XLR adapter |
| CMRR | XLR Adapter: > 60 dB @ 50 Hz to 15 kHz |
| Power Supply | Minimum 5 V to Maximum 50 V through DPA adapter for wireless systems 48 V phantom power ±4 V with XLR adapter |
| Current Consumption | MicroDot: 1.5 mA XLR Adapter: 3.5 mA |
| Connector | MicroDot XLR Adapter Included |
| Polarity | Positively increasing sound pressure produces positive going voltage at MicroDot pin (and pin 2 on DAD6001 XLR adapter) |
| Operating Temperature | -40° to 113°F (-40° to 45°C) |
| Relative Humidity | Up to 90% |
| Cable Length | 6' (1.8 m) |
| Gooseneck | Length: 5.5" (140 mm) |
| Capsule Diameter | 0.2" (5.4 mm) |
| Microphone Length | 1.8" (45 mm) |
| Weight | 1.1 oz (31 g) |
| Packaging Info | |
|---|---|
| Package Weight | 1.1 lb |
| Box Dimensions (LxWxH) | 9.7 x 5.9 x 2.1" |
