DPA VO4099Hi d:vote 4099 Clip Microphone in Pouch, Hi-Sens

DPA VO4099Hi d:vote 4099 Clip Microphone in Pouch, Hi-Sens

by DPA

Raspoloživost Sarajevo: Isporuka 20-30 dana

SKU

DPA-VO4099Hi

For Live Sound, 6 mV/Pa Sensitivity, 142 dB Maximum SPL, 5.5" Adjustable Gooseneck, MicroDot Connector

840,00 KM 717,95 KM

Obročno plaćanje Obročno kartično plaćanje bez kamata 2-12 rata putem Visa Classic kartica u izdanju UniCredit Bank. Ostale načine plaćanje provjerite na linku: Načini plaćanja.
Brza dostava Za sve narudžbe unutar BiH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana. Više detalja provjerite na linku Načini dostave.
Kontakt Mail: info@aviteh.ba - Telefon: 033 24 67 67 - Adresa poslovnice: Malta 29, Sarajevo

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Sadržaj pakovanja

DPA Microphones d:vote 4099 Instrument Microphone (Microphone Only - High Sensitivity)
Carry Pouch

Detalji

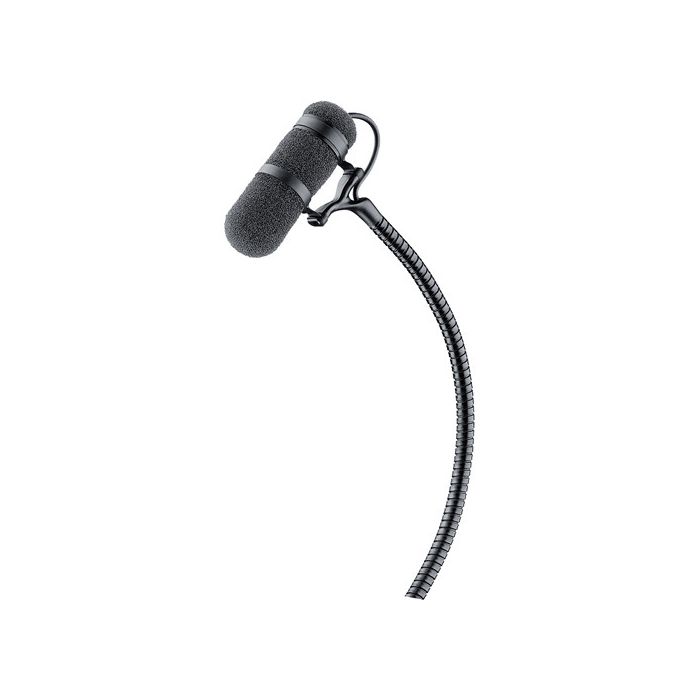

The high-sensitivity (6 mV/Pa) d:vote 4099 Instrument Microphone from DPA Microphones utilizes a supercardioid condenser capsule that can handle a maximum SPL of 142 dB.

The microphone body is connected to a 5.5" adjustable gooseneck for ease in positioning. The microphone terminates in a MicroDot connector, allowing compatibility with DPA's connection adapters for use with a variety of third party wireless systems. A range of accessories including clips for attaching the microphone to various instruments are available sold separately.

Više informacija

Transducer Type	Pre-Polarized Condenser
Polar Pattern	Supercardioid
Principle of Operation	Pressure Gradient
Frequency Range	20 Hz to 20 kHz 80 Hz to 15 kHz with 2 dB Soft Boost @ 10 to 12 kHz, Second Order Low-Cut Filter @ 80 Hz (>+/- 2 dB, 20 cm Distance)
Sensitivity	6 mV/Pa; -44.5 dB Reference: 1 V/Pa (Nominal, +/- 3 dB)
Equivalent Noise Level	Typ. 23 dB(A) Reference: 20 µPa (Maximum 26 dB(A)) (A-Weighted)
Signal to Noise Ratio	71 dB (Reference: 1 kHz @ 1 Pa, 94 dB SPL)
Total Harmonic Distortion (THD)	< 1 % up to 123 dB SPL peak < 1 % up to 120 dB SPL RMS sine
Dynamic Range	100 dB
Maximum SPL	142 dB (Peak Before Clipping)
Output Impedance	MicroDot: 30 to 40 Ω XLR: 100 Ω
Cable Drive Capability	XLR: 984' (300 m)
Output Balance Principle	Signal balanced with XLR adapter
CMRR	XLR Adapter: > 60 dB @ 50 Hz to 15 kHz
Power Supply	Minimum 5 V to Maximum 50 V through DPA adapter for wireless systems 48 V phantom power ±4 V with XLR adapter
Current Consumption	MicroDot: 1.5 mA XLR Adapter: 3.5 mA
Compatibility	Fits Instruments with a Body Depth Between 1.4 and 2.1" (35 and 55 mm)
Polarity	Positively increasing sound pressure produces positive going voltage at MicroDot pin (and pin 2 on DAD4099-BC XLR adapter)
Operating Temperature	-40 to 113°F (-40 to 45°C)
Relative Humidity	Up to 90%
Gooseneck	Length: 5.5" (140 mm)
Microphone Length	1.8" (45 mm)
Weight	1.16 oz (33 g)
