DJI RS 2 RavenEye Image Transmission System
by DJIAllows live camera view and enables ActiveTrack 3.0 on DJI RS 2/DJI RSC 2, transmitting the camera live view directly on the Ronin app.
- Obročno plaćanje Obročno kartično plaćanje bez kamata 2-12 rata putem Visa Classic kartica u izdanju UniCredit Bank. Ostale načine plaćanje provjerite na linku: Načini plaćanja.
- Brza dostava Za sve narudžbe unutar BiH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana. Više detalja provjerite na linku Načini dostave.
- Kontakt Mail: info@aviteh.ba - Telefon: 033 24 67 67 - Adresa poslovnice: Malta 29, Sarajevo
Sadržaj pakovanja
- Image Transmitter
- Cold Shoe to 1/4''-20 Adapter
- USB-C Charging Cable (40 cm)
- USB-C Power Cable (20 cm)
- Mini-HDMI to HDMI Cable (20 cm)
- Mini-HDMI to Mini-HDMI Cable (20 cm)
- Mini-HDMI to Micro-HDMI Cable (20 cm)
- M4 Screw × 2
- Allen Wrench (3 mm)

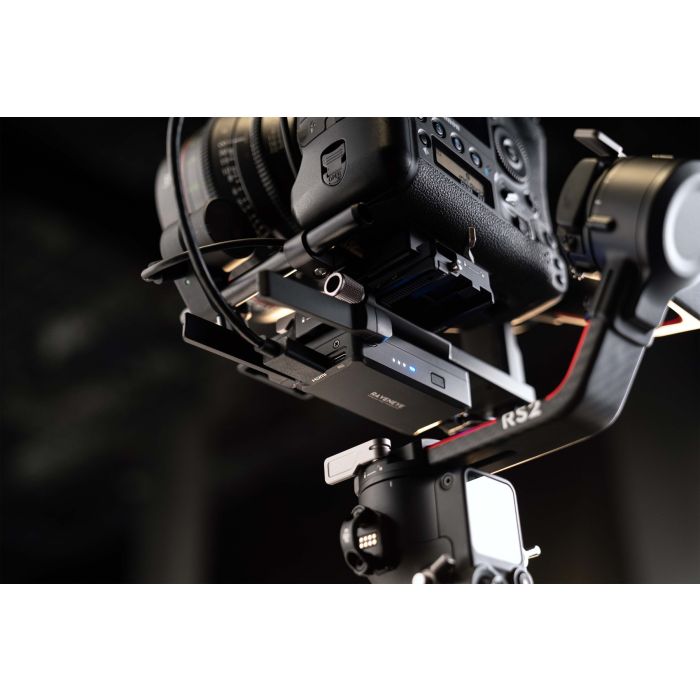

The DJI Ronin RavenEye Image Transmission System allows live camera view and enables ActiveTrack 3.0 on DJI RS 2, transmitting the camera live view directly on the touchscreen and Ronin app. When using DJI RSC 2, RavenEye enables remote control of the gimbal, monitoring, and ActiveTrack 3.0, but the built-in screen cannot be used to transmit the camera live view. The system mounts to the gimbal and connects to the camera via HDMI cable and to the smartphone via Wi-Fi. Please visit the Ronin Series Compatibility Search at dji.com to see supported camera models and functions.
Compatibility :
- Ronin-S
- Ronin-SC
- DJI RS 2
- DJI RSC 2
Note: Ronin-S and Ronin-SC do not currently allow remote gimbal control or the use of ActiveTrack 3.0 via RavenEye.
| Working Frequency | 2.400-2.4835 GHz，5.725-5.850 GHz |
| Weight: | 126 g |
| Dimensions: | 82 mm x 63 mm x 24 mm |
| Transmission Power (EIRP): | 2.400-2.4835 GHz: |
| ＜25dBm (FCC) | |
| ＜20dBm (CE/SRRC/MIC) | |
| 5.725-5.850 GHz: | |
| ＜25dBm (FCC/SRRC) | |
| ＜14dBm(CE) |
