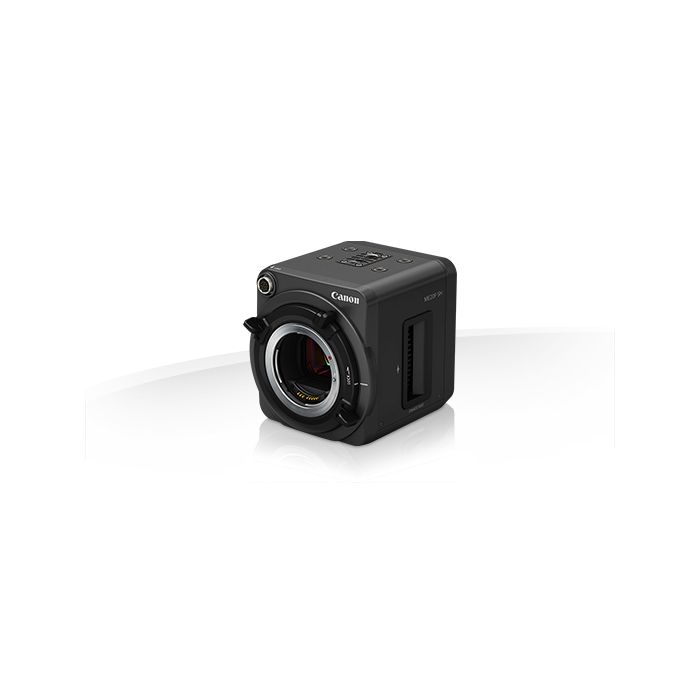

Canon Multi Purpose ME20F-SH Camcorder

by Canon

Raspoloživost Sarajevo: Isporuka 20-30 dana

SKU

AD1002C003AA

47.911,50 KM 40.950,00 KM

Obročno plaćanje Obročno kartično plaćanje bez kamata 2-12 rata putem Visa Classic kartica u izdanju UniCredit Bank. Ostale načine plaćanje provjerite na linku: Načini plaćanja.
Brza dostava Za sve narudžbe unutar BiH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana. Više detalja provjerite na linku Načini dostave.
Kontakt Mail: info@aviteh.ba - Telefon: 033 24 67 67 - Adresa poslovnice: Malta 29, Sarajevo

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Detalji

Featuring an astonishing four million ISO rating, the Canon ME20F-SH Camera captures video at up to 1920 x 1080p 60 and supports both NTSC and PAL broadcast frame rates. The camera incorporates a full frame 35mm-sized sensor with approximately 2.26 million pixels. This results in a pixel that is about 7.5 x larger than the pixels on optional Canon Full-frame DSLR cameras, which provides for camera's notable ISO rating.

Incorporating a Canon DIGIC DV 4 image processor, the camera supports 12 stops of dynamic range, and features Wide DR and Canon Log gamma profiles that protect highlight and shadow detail. The camera body is small in size and features 2 x HD/3G-SDI outputs, and a single HDMI output. The camera incorporates a Genlock-in for integrating this camera into a multi-camera shoot. Although small in size the ME20F Multi-Purpose camera features a locking Cinema EF Lens mount.

This small box sized camera is versatile and can fit into smaller spaces. You can use optional accessories to configure the camera for a variety of applications.
The camera's sensor feature photosites that measure 19 micrometers, which is 7.5 times larger than the photosites of the nominal Canon 35mm DSLR sensor. This allows the camera to provide excellent low light performance.
This is an HD camera body only and is capable of capturing 1920 x 1080 footage at 59.94P / 59.94i / 50.00P / 50.00i / 29.97P / 25.00P / 23.98P.
Professional connectivity includes the HD/3G-SDI connectors and genlock input, allowing the camera to be easily integrated into a multi-camera workflow. The OSD is available on both the HDMI and the first SDI output.
The camera features a built-in filter stack including a clear filter, an ND 1/8, and an ND 1/64, as well as an IR cut filter, this allows you to choose to use the IR cut filter much as you would choose from the built-in ND filters.
The camera features built-in One-shot AF, and Push Auto Iris. The One-Shot AF assists in focusing adjustment with a dedicated button. Focus status can be confirmed on an external monitor. Push Auto Iris automatically adjusts the aperture of the lens to quickly and easily maintain proper exposure, even in situations where lighting changes frequently.
The locking cinema EF mount is compatible with EF mount lenses, and provides a stronger attachment to the camera than a standard EF mount. The front of the camera features a 12-pin lens terminal enabling lens connectivity with EF mount CINE-SERVO lenses or 2/3" broadcast lenses with an optional third party adapter.

Više informacija

CAMERA

Image Sensor

Sensor

35mm Full Size CMOS Sensor

Filter

RGB Primary Colour Filter (Bayer array)

Effective pixels per sensor

Approx. 2.26MP (2000 x 1128)

Minimum illumination

0.0005 lux or less( Gain 75dB, f/1.2, 29.97P, 50 IRE)

Horizontal Resolution

Depends on the lens used.

Lens

Lens Mount

Canon EF mount with Cinema Lock

ND filter

Yes, 2 density (1/8, 3 stops or 1/64 , 6 stops) Manually selected electronic control

Focus control

Manual Focus using lens or via RC-V100 Remote Control; One Shot AF via assignable button

Iris control

Manual; 1/2 stop increments. Push Auto Iris via assignable button. Auto (combined function combining Iris, Gain, Shutter and ND filter operation)

Aperture range

Depending on selected lens

Filter diameter

Depending on selected lens

Image stabilization system

Depending on selected lens

Digital Tele Converter

Yes : X2/ X4 tele converter

Image Processor

Type

DIGIC DV 4

Sampling accuracy

YbCbCr 422 via 3G/HD-SDI; RGB 444, YCbCr 444, YCbCr 422 via HDMI

Bit depth

10 bit (8 bit effective)

RECORDING

Video storage media

External Recording Device

Recording file format

Depending on External Device

Recording frame rate

3G/HD-SDI Output: 1920x1080: 59.94P/59.94i/50P/50i/29.97P/25P/23.98P
1280x720: 59.94P/50P/29.97P/25P/23.98P
HDMI Output: 1920x 1080: 59.94P/59.94i/50P/50i/29.97PsF/25PsF
1280x720: 59.94P/50P
640x480: 59.94P

Slow/Fast motion

Interval Record

Frame Record

Pre Record (cache record)

Scan Reverse

Custom Picture Options

Nine Custom Picture options: Canon Log, Wide DR, EOS Standard, CP1 - CP6 . User customisable settings: Black, Black Gamma, Knee, Sharpness, Noise Reduction, White Balance. Adjustable for Chroma Key performance¹

HD->SD conversion

SYSTEM

Inputs/Outputs

Automatic Exposure Settings

Shutter Priority, Aperture Priority, Auto Gain Control (AGC)¹

Audio in

3.5mm stereo mini jack, plug-in power mic supported

Headphone output

Video monitor output

Yes, 3G/HD-SDI (BNC) OSD output compatible, HDMI.

HDMI

Yes. Output only,

USB

3G/HD-SDI output

Yes, X2; Output 1 OSD compatible, Output 2 Clean output only.

Time code

Genlock

Yes, input only, BNC

Component out

AV terminal

DC input

Yes. 4-Pin XLR, 2-Pin connection. Input voltage 11 - 17V

Lens Terminal

Yes, 12-pin connector¹

Remote Control Terminal

Yes, x2: Remote A: 2.5mm mini jack/Remote B: Circular 8-pin . Both utilise Canon Unique Protocol.

Memory Card connector

Yes, microSD card (for firmware update only, no recording capability)

Colour Bars

Yes, SMPTE, EBU and ARIB depending on system frequency

Misc

Tally lamp

Custom key

User Assigned Functions

Yes, 4 buttons.
Assignable items:One-Shot AF / Push Auto Iris / ABB /AE Shift + / AE Shift - / Bar / Set WB /Tele-converter / Infrared / External Rec / Custom Picture /
Camera Mode A/M. These items work with the RC-V100 remote controller.
