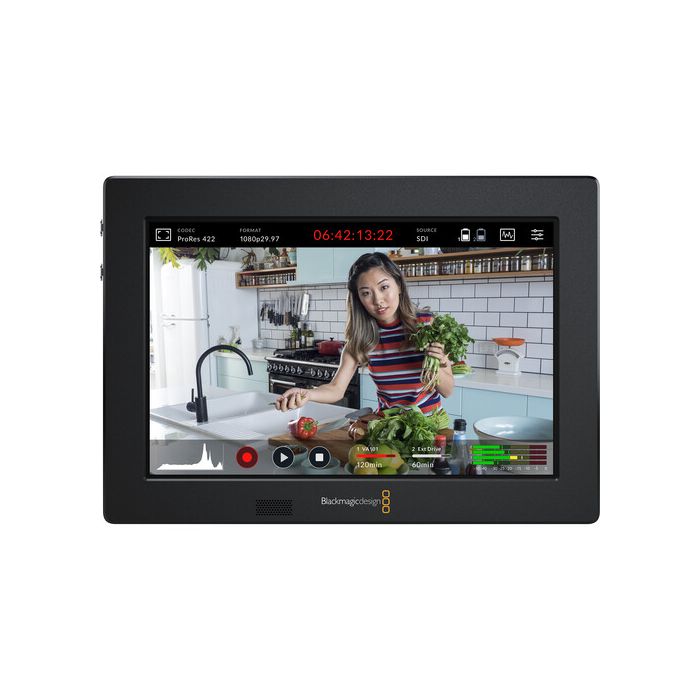

Blackmagic Design Video Assist 7" 3G

Raspoloživost Sarajevo: Isporuka 20-30 dana

SKU

HYPERD/AVIDA03/7

1920 x 1080 7" Touchscreen LCD
HDMI & 3G-SDI Video Inputs
Records up to 1080p60 Video
Stores to 2 x SDHC/SDXC Memory Cards

1.252,50 KM 1.070,51 KM

Obročno plaćanje Obročno kartično plaćanje bez kamata 2-12 rata putem Visa Classic kartica u izdanju UniCredit Bank. Ostale načine plaćanje provjerite na linku: Načini plaćanja.
Brza dostava Za sve narudžbe unutar BiH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana. Više detalja provjerite na linku Načini dostave.
Kontakt Mail: info@aviteh.ba - Telefon: 033 24 67 67 - Adresa poslovnice: Malta 29, Sarajevo

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Sadržaj pakovanja

Blackmagic Design Video Assist 7" 3G

Detalji

Blackmagic Video Assist 7” 12G HDR adds professional monitoring and recording to any SDI or HDMI camera in all HD, Ultra HD, 2K and 4K DCI formats! The super bright 2500nit 7 inch HDR monitor supports 3D LUTs and features professional scopes along with powerful focus assist and exposure tools that help you accurately set focus, exposure and frame shots. Dual built in SD card recorders save files from any camera in 10‑bit 4:2:2 ProRes or DNx formats. You also get two mini XLR connections with 48V of phantom power and a noise floor of ‑128dBV for high quality, crystal clear audio recording. Plus, you can start editing immediately because you don’t have to convert the files!

Više informacija

Display

Panel Type	LCD
Display Size	7.0" / 17.8 cm
Screen Resolution	1920 x 1200
Aspect Ratio	16:9
Viewing Angle	Horizontal: 135°
Touchscreen	Yes
Maximum Brightness	310 cd/m2
Pixels Per Inch (ppi)	323 ppi
Color Gamut	100% Rec. 709
Real-Time LUT Monitoring	SDR
Image Controls	Anamorphic De-Squeeze, Blue Only, False Color, Focus Peaking, Histogram, Image Flip, Picture-in-Picture, RGB Parade, Screen Markers, Vectorscope, Waveform, Zebra

I/O

Video	1 x HDMI Type A Input 1 x BNC (3G-SDI/HD-SDI/SD-SDI) Input 1 x HDMI Type A Output 1 x BNC (3G-SDI/HD-SDI/SD-SDI) Output
HDCP Support	Yes
Embedded Audio	HDMI: 8-Channel SDI: 16-Channel
Audio	2 x Mini-XLR Input 1 x 3.5 mm Headphone Output
Built-In Speaker	1
Power	1 x Barrel (12 VDC) Input
Other I/O	1 x USB Type-C 1 x LANC (2.5 mm) Input
Card Slot	2 x SD
Wi-Fi	None

Format Support

Video Format

SDI (10-Bit 4:2:2 YUV)
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
576i: 50
480i: 59.94
HDMI (10-Bit)
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
576i: 50
480i: 59.94

Recording

Pulldown Conversion	None
Camera Trigger	None
Pre-Roll Record	None
Encoding Formats	Up to 1920 x 1080 ProRes 422 HQ, 422, LT, Proxy 10-Bit 4:2:2 at up to 60 fps DNxHD 220x, 145, 45, 220x MXF, 145 MXF, 45 MXF 10-Bit 4:2:2 at up to 60 fps
Maximum Audio Tracks	16
Recording Media	1 x SDXC (UHS-I)
Metadata Tagging	Yes
Timecode Support	SMPTE 12M via Embedded SDI / Embedded HDMI
Phantom Power	None
