Blackmagic Design URSA Cine Studio Viewfinder

by Blackmagic Design

Raspoloživost Sarajevo: Isporuka 20-30 dana

SKU

CINEURSAB/EVFST7

Obročno plaćanje Obročno kartično plaćanje bez kamata 2-12 rata putem Visa Classic kartica u izdanju UniCredit Bank. Ostale načine plaćanje provjerite na linku: Načini plaćanja.
Brza dostava Za sve narudžbe unutar BiH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana. Više detalja provjerite na linku Načini dostave.
Kontakt Mail: info@aviteh.ba - Telefon: 033 24 67 67 - Adresa poslovnice: Malta 29, Sarajevo

Novo

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Sadržaj pakovanja

Blackmagic Design URSA Cine Studio Viewfinder
Sun Hood
Mounting Plate

Detalji

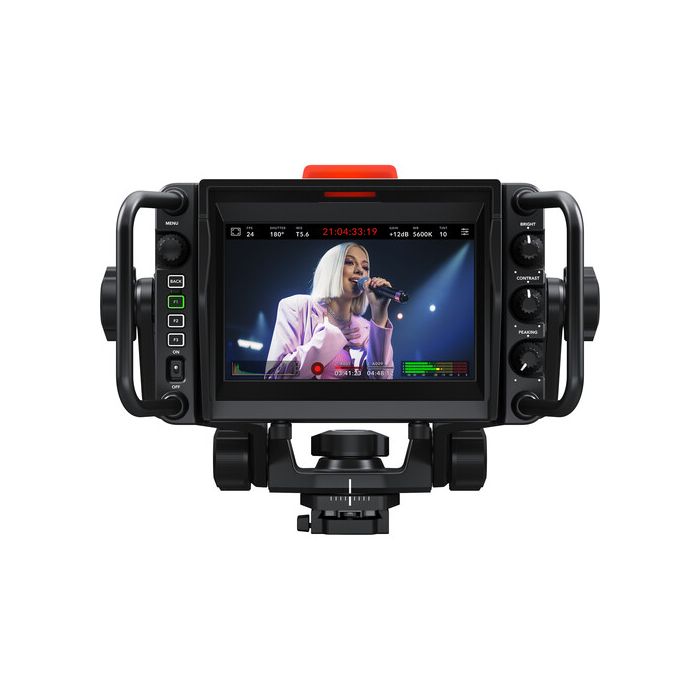

Use the URSA Cine Studio Viewfinder from Blackmagic Design to get high-resolution monitoring for your live URSA Cine event capture. This 7" viewfinder/monitor features a high-resolution 1920 x 1200 TFT LCD touchscreen, built-in grab handles, and a detachable sun hood to prevent glare. It features screen overlays, multiple controls, and a single USB-C video/power/control cable. Mount the viewfinder on your URSA Cine 12K camera using its bottom V-lock mount.

Compatibility

Blackmagic URSA Cine 12K LF 100G
Blackmagic URSA Cine 12K LF
Blackmagic URSA Cine 17K 65
Blackmagic URSA Cine Immersive 100G
Blackmagic URSA Cine Immersive

Controls

Touchscreen, dial, knobs, and three customizable function buttons for settings, shortcut features, and navigating menus.

Handles

Built-in grab handles for positioning the monitor independently from the camera.

Position Adjustment Options

Variable tension pivot points for articulated arm and grab handles with forward, backward, up, down, pan, and tilt adjustments.

Mounting Options

Quick release V-lock mounting bracket for attaching the viewfinder to the URSA Mini top handle.

Tally

Large LED tally light.

Metadata Support

Detects camera information embedded in the SDI signal, including status information, frame guides, focus peaking, tally, and more.

Screen Interface

On-screen meters and status information, including camera ID, resolution, frames per second, shutter speed, gain, white balance, camera battery level, and more.

Više informacija

Display
Panel Type	TFT LCD
Display Size	7.0" / 17.8 cm
Screen Resolution	1920 x 1200
Aspect Ratio	16:10
Touchscreen	Yes
Maximum Brightness	2000 nits / cd/m2
Pixels Per Inch (ppi)	323 ppi
Image Controls	False Color, Focus Assist, Focus Peaking, Screen Markers
Inputs / Outputs
Inputs/Outputs	1x USB-C Video Input
	1x Barrel Power Input
Video Format	USB (10-Bit 4:2:2 YUV)
	1080p: 60/59.94/50/30/29.97/25/24/23.98
	1080i: 60/59.94/50
	720p: 60/59.94/50
Input Power	12 VDC
General
Operating Conditions	32 to 104°F / 0 to 40°C up to 90% Humidity
Storage Conditions	-4 to 140°F / -20 to 60°C up to 90% Humidity
Tripod/Accessory Mounting	Bottom/Bracket
	1x V-Lock
Dimensions	11.97 x 9.17" / 30.4 x 23.29 cm (Including Bracket)
Weight	5.27 lb / 2.39 kg
