Blackmagic Design HyperDeck ISO Recorder 100G

Blackmagic Design HyperDeck ISO Recorder 100G

Raspoloživost Sarajevo: Isporuka 20-30 dana

SKU

HYPERD/UISO/100G

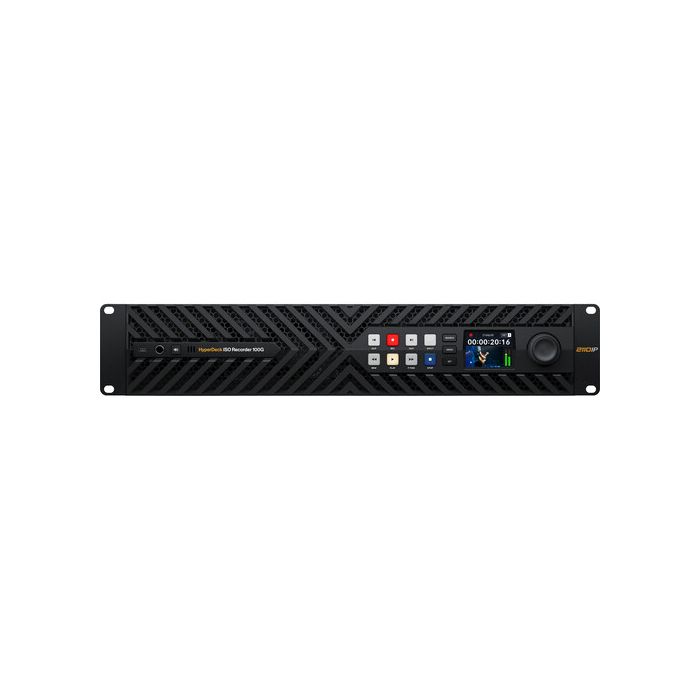

The Blackmagic Design HyperDeck ISO Recorder 100G is a 2 RU SMPTE 2110 broadcast recorder engineered for multicamera live production and high-bandwidth IP workflows.

Obročno plaćanje Obročno kartično plaćanje bez kamata 2-12 rata putem Visa Classic kartica u izdanju UniCredit Bank. Ostale načine plaćanje provjerite na linku: Načini plaćanja.
Brza dostava Za sve narudžbe unutar BiH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana. Više detalja provjerite na linku Načini dostave.
Kontakt Mail: info@aviteh.ba - Telefon: 033 24 67 67 - Adresa poslovnice: Malta 29, Sarajevo

Novo

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Sadržaj pakovanja

Blackmagic Design HyperDeck ISO Recorder 100G

Detalji

The Blackmagic Design HyperDeck ISO Recorder 100G is a 2 RU SMPTE 2110 broadcast recorder engineered for multicamera live production and high-bandwidth IP workflows. Capable of recording up to eight channels of 10-bit 4:2:2 video at resolutions up to DCI 4K60, the unit captures each feed as an individual ProRes file directly to network storage over dual 100GbE connections. SMPTE ST 2022-7 redundancy ensures uninterrupted recording across dual network paths, while support for 16 channels of embedded audio per stream preserves full multichannel audio integrity for post-production.

Designed for live production and broadcast environments, the HyperDeck ISO Recorder enables simultaneous recording and playback of all eight channels, making it suitable for live switching, replay, and post-event editing. A front-panel 2.2" LCD with machined metal search dial and transport controls provides precise clip navigation and monitoring, complemented by a built-in speaker and headphone output for audio confidence. External control is supported via RS-422 serial, NMOS over RJ45, and USB-C configuration, while dual AC inputs, redundant network paths, and advanced Blackmagic OS management ensure reliable operation in demanding scenarios.

IP Video Recording

Records eight simultaneous SMPTE 2110 IP video channels up to DCI 4K60
Two pairs of 100GbE QSFP28 ports with SMPTE ST 2022-7 redundancy
Direct recording to shared network storage over 100G Ethernet
Supports ProRes 422 HQ, 422, 422 LT, and Proxy codecs
10-bit 4:2:2 video with Rec. 709 and Rec. 2020 color space support
16 channels of embedded audio per video stream
Simultaneous multichannel playback for testing and replay

Advanced Functionality

2.2" front-panel LCD for video, audio, and system monitoring
Machined metal search dial with electronic clutch and transport controls
Built-in speaker and headphone output for audio monitoring
RS-422 deck control and Ethernet-based remote control support
Dual 10G RJ45 ports for NMOS control and configuration
USB-C interface for setup and firmware updates
Dual IEC C14 AC inputs for redundant power delivery

Više informacija

Display
Panel Type	LCD
Size	2.2"
Touchscreen	No
Inputs/Outputs
USB I/O	1 x USB-C Female Input
Video I/O	2x QSFP28 100G Input
	2x QSFP28 100G Output
	2x BNC (12G-SDI) Monitor Output
	1x HDMI Monitor Output
Audio I/O	1x 1/4" Headphone Output
Other I/O	2x RJ45 10G NMOS Control Input
	2x RJ45 2110 PTP Clock Input/Output
	1x RJ45 1G Management Input
	1x D-Sub 9 RS-422 Control Input
	1x D-Sub 9 RS-422 Control Output
Video Resolution	Fiber Input/Output (10-Bit 4:2:2 YUV)
	4096 x 2160:
	23.98/24/25/29.97/30 fps
	3840 x 2160:
	23.98/24/25/29.97/30/50/59.94/60 fps
	1920 x 1080p:
	23.98/24/25/29.97/30/50/59.94/60 fps
	1920 x 1080i: 50/59.94/60 fps
	1920 x 1080PsF: 25/29.97/30 fps
	1280 x 720p: 50/59.94/60 fps
Power
Power Source	AC Input (Built-In)
AC Input Power	100 to 240 VAC, 50 / 60 Hz
Power I/O	2x IEC C14 Input
Physical
Mounting	4x Unthreaded Rackmount Hole
Color	Black
Certifications	IEEE 1588-2008, SMPTE 2082-1, SMPTE 2082-10, SMPTE 2084, SMPTE 2108-1, SMPTE 2110-20, SMPTE 2110-21, SMPTE 2110-30, SMPTE 2110-40, SMPTE 2022-7, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M, SMPTE 2081-1, SMPTE 2081-10
Operating Conditions	32 to 104°F / 0 to 40°C up to 90% Humidity
Storage Conditions	-4 to 113°F / -20 to 45°C up to 90% Humidity
Dimensions	19 x 9.5 x 3.5" / 48.3 x 24.1 x 8.9 cm (2 RU)
