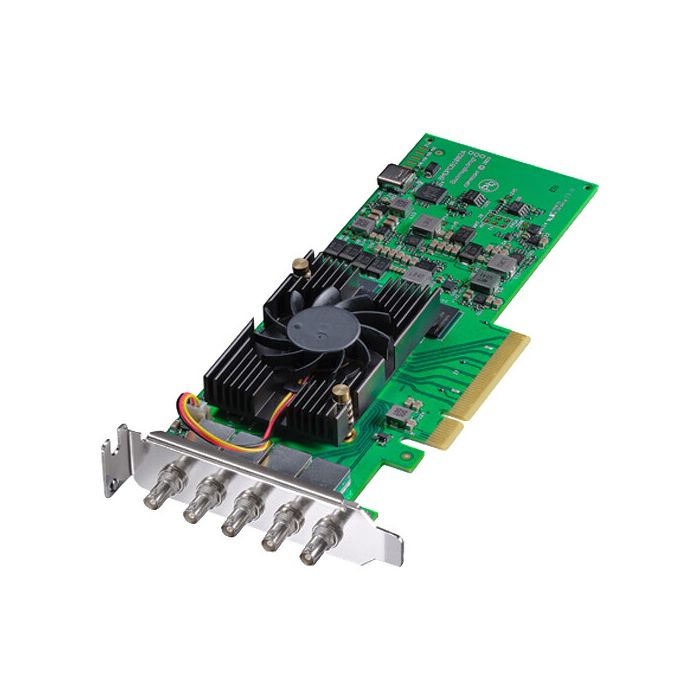

Blackmagic Design DeckLink 8K Pro Mini
by Blackmagic Design
Raspoloživost Sarajevo:
Isporuka 20-30 dana
SKU
BDLKHCPRO8K12GMINI
DeckLink 8K Pro Mini is the ultimate 8K digital cinema low profile capture and playback card.
KM 1.651,00
KM 1.411,11
- Obročno plaćanje Obročno kartično plaćanje bez kamata 2-12 rata putem Visa Classic kartica u izdanju UniCredit Bank. Ostale načine plaćanje provjerite na linku: Načini plaćanja.
- Brza dostava Za sve narudžbe unutar BiH zaprimljene do 14h dostava će biti izvršena sljedećeg radnog dana. Više detalja provjerite na linku Načini dostave.
- Kontakt Mail: info@aviteh.ba - Telefon: 033 24 67 67 - Adresa poslovnice: Malta 29, Sarajevo
Sadržaj pakovanja
- Blackmagic Design DeckLink 8K Pro Mini Capture Card
DeckLink 8K Pro Mini is the ultimate 8K digital cinema low profile capture and playback card. Featuring 4 independent 12G‑SDI Micro BNC connections, DeckLink 8K Pro Mini can work in all SD, HD, Ultra HD, 4K DCI, 8K and 8K DCI standards. You get support for high frame rate, 12-bit RGB 4:4:4 video and full Rec. 2020 color, making it perfect for next generation high resolution and high dynamic range workflows!
| Inputs / Outputs | |
| System Connection | PCIe 3.0 x8 |
| Inputs/Outputs | 4 x Micro-BNC (12G-SDI) Female (Switchable) |
| Audio Inputs | No |
| Other I/O | 1 x BNC Reference Input |
| Simultaneous Multi-Input Support | Yes |
| Format Support | |
| Input Video Format | BNC (8/10/12-Bit 4:4:4/4:2:2 RGB) |
| DCI 8K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps | |
| 8K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps | |
| DCI 4K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps | |
| UHD 4K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60/100/119.88/120 fps | |
| DCI 2K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60/100/119.88/120 fps | |
| DCI 2KPsF at 23.98/24/25/29.97/30 fps | |
| 1080p at 23.98/24/25/29.97/30/47.95/48/50/59.94/60/100/119.88/120 fps | |
| 1080PsF at 23.98/24/25/29.97/30 fps | |
| 720p at 50/59.94/60 fps | |
| 576i / 625 lines at 50 fps | |
| 480i / 525 lines at 59.94 fps | |
| Input Audio Format | LPCM (Linear Pulse-Code Modulation): 48 kHz / 24-Bit |
| Output Video Format | SDI (8/10/12-Bit 4:4:4/4:2:2 RGB) |
| DCI 8K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps | |
| 8K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps | |
| DCI 4K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60/100/119.88/120 fps | |
| UHD 4K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60/100/119.88/120 fps | |
| DCI 2K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60/100/119.88/120 fps | |
| DCI 2KPsF at 23.98/24/25/29.97/30 fps | |
| 1080p at 23.98/24/25/29.97/30/47.95/48/50/59.94/60/100/119.88/120 fps | |
| 1080PsF at 23.98/24/25/29.97/30 fps | |
| 720p at 50/59.94/60 fps | |
| 576i / 625 lines at 50 fps | |
| 480i / 525 lines at 59.94 fps | |
| Output Audio Format | LPCM (Linear Pulse-Code Modulation): 48 kHz / 24-Bit |
| Embedded Audio | SDI Input: 64-Channel |
| SDI Output: 64-Channel | |
| Standards | |
| Video Standard Compliance | SMPTE 259M/274M/292M/296M/372M/424M/ST-2036-1/ST-2048/ST-2081-10/ST-2081-11/ST-2082-1/ST-2082-10/ST-2108-1 |
| HDR Compatibility | Hybrid Log Gamma |
| Hardware | |
| OS Compatibility | macOS 12 or Later |
| macOS 13 | |
| Windows 11 or Later (64-Bit Only) | |
| Windows 10 or Later (64-Bit Only) | |
| Linux | |
| Power Consumption | Device: 18 W |
| Environmental | |
| Operating Temperature | 41 to 122°F / 5 to 50°C |
| Storage Temperature | -4 to 140°F / -20 to 60°C |
| Operating Humidity | 0 to 90% () |
| Storage Humidity | 0 to 90% (Non-Condensing) |
| General | |
| Dimensions | 7.1" / 180.3 mm |
| Weight | 4.25 oz / 120 g |
